Introduction to Waterproof Micro Switches
Waterproof micro switches are indispensable basic components in home appliances, automotive electronics, and industrial control systems, widely used in critical applications such as washing machine micro switches, car door lock micro switches, industrial limit switches, and etc. Their primary function is to accurately detect changes in mechanical position, action state, or travel, and quickly and stably convert these changes into electrical signals, thereby ensuring the safety and reliability of the entire equipment system.
In terms of structural design, waterproof micro switches typically employ a snap action contact structure. This structure achieves clear and rapid on/off switching through the instantaneous flipping of an internal spring, effectively reducing contact bounce and malfunctions. This makes it ideal for control scenarios requiring high response accuracy within waterproof and dustproof environments.
In terms of performance, waterproof micro switches possess exceptional mechanical and electrical lifespans, enabling long-term stable operation under frequent use and harsh conditions. Their sealed contact system is optimized to withstand millions of action cycles, ensuring continuous reliable operation throughout the product's lifespan while reducing maintenance and replacement costs.
Regarding safety and compliance, our micro switches have obtained numerous global safety certifications, such as ISO9001, IATF16949, ISO14001, ENEC, UL/cUL, CE, CB, and others, meeting the rigorous electrical safety and reliability requirements of major international markets. With their stable instantaneous action, superior protection performance, and widely recognized safety certifications, Unionwell’s waterproof micro switches have become a trusted core component in modern industrial and consumer control systems.

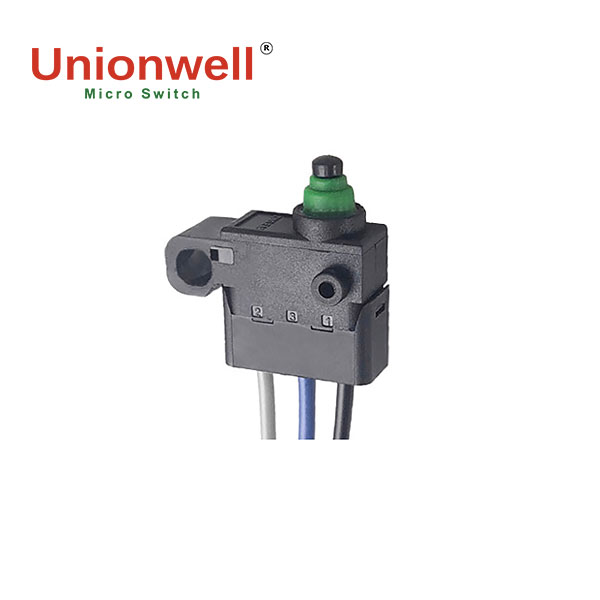

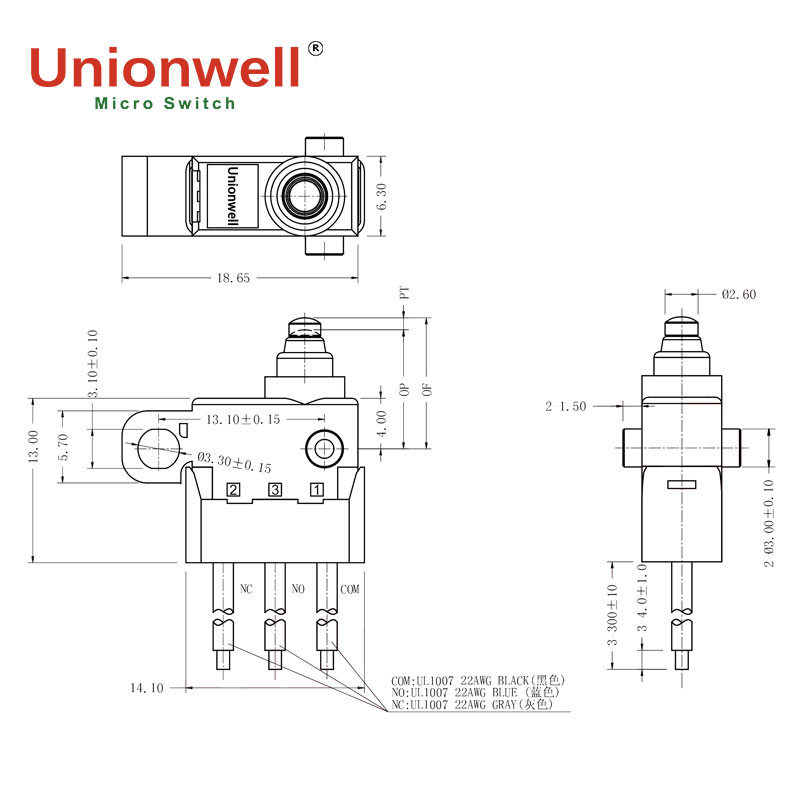

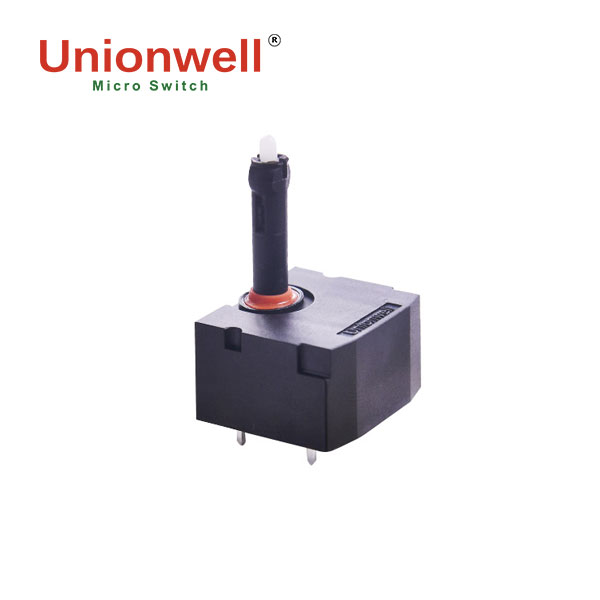

Unionwell offers both OEM and custom waterproof micro switch solutions, ensuring they meet the diverse performance, lifespan, and protection level (such as IP67) requirements of various appliance, automotive, and industrial manufacturers. The picture shows Unionwell's most classic waterproof micro switch model—the G303 series Waterproof Micro Switch.
Superior Performance of Unionwell Waterproof Micro Switches

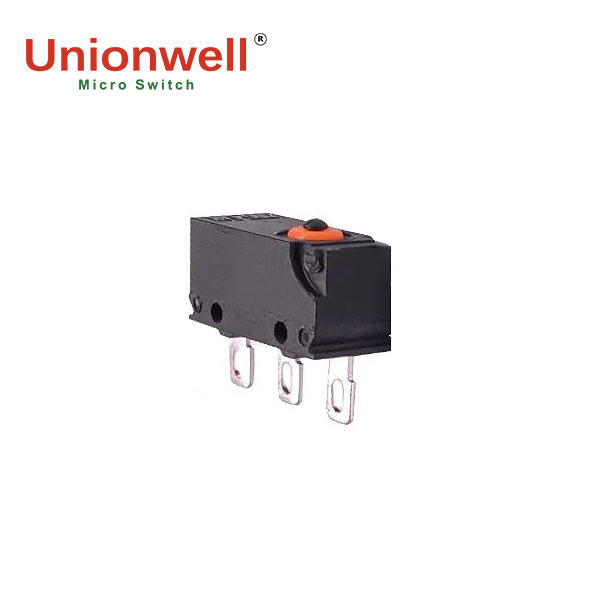

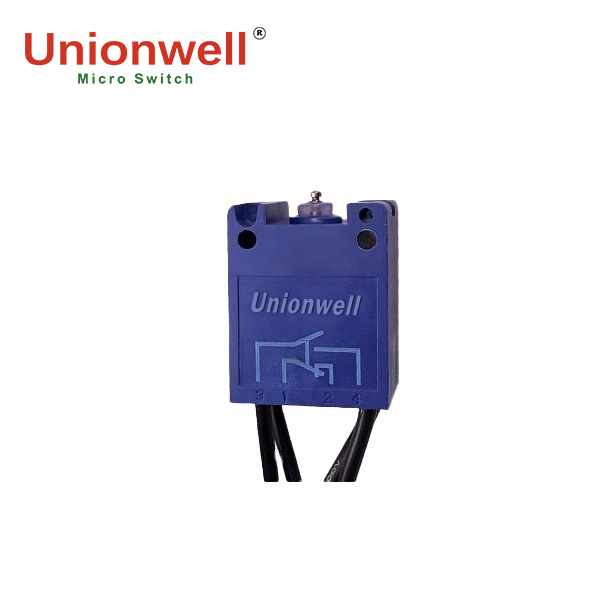

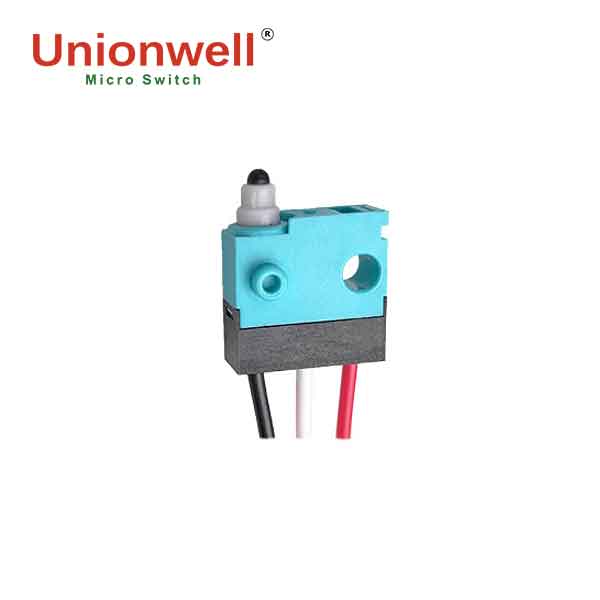

Unionwell offers a wide range of waterproof micro switches (including automotive micro switches) to meet the needs of equipment across various industries. The waterproof micro switches shown below all meet IP67 protection standards, providing sufficient durability and reliability to operate stably in temperatures ranging from -40°C to +85°C, performing excellently even in harsh conditions.

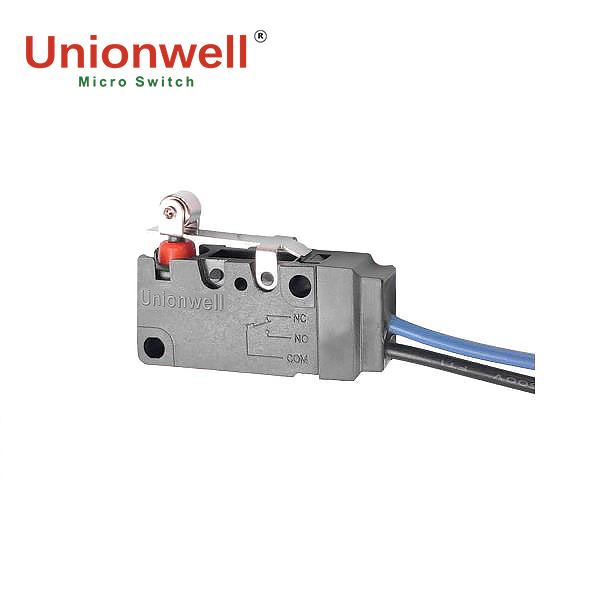

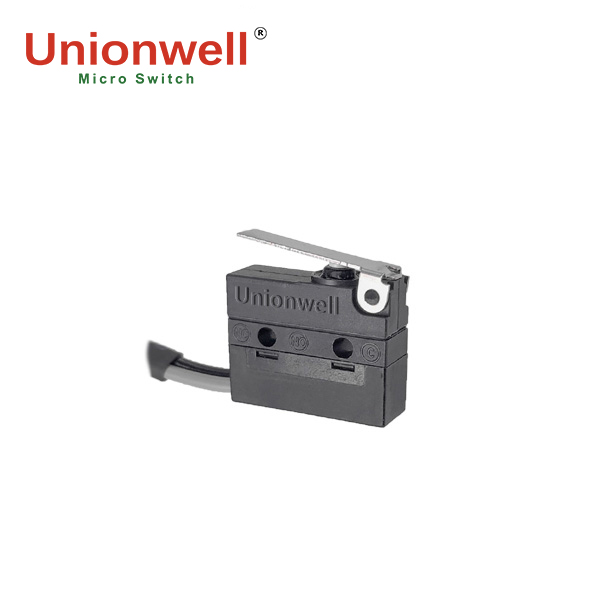

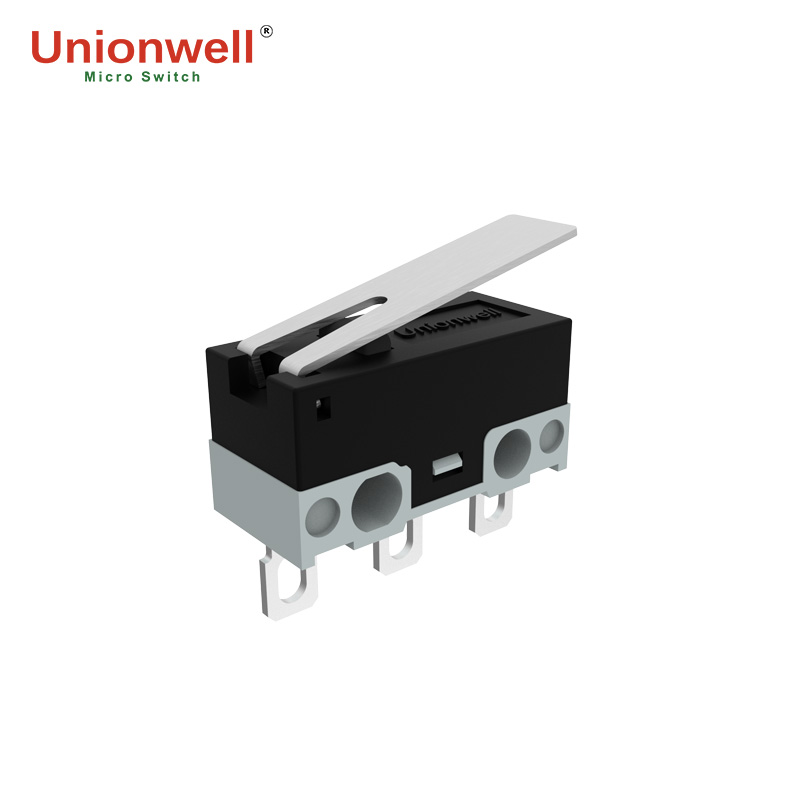

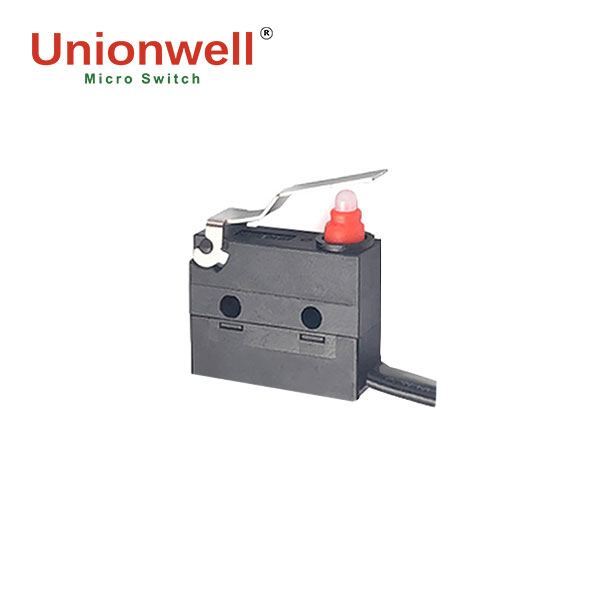

We also offer a variety of lever-type micro switches, including the common straight lever switches and roller switches. These switches utilize a single-pole double-throw (SPDT) circuit, providing precise and rapid switching capabilities, making them an ideal choice for waterproof micro switches!

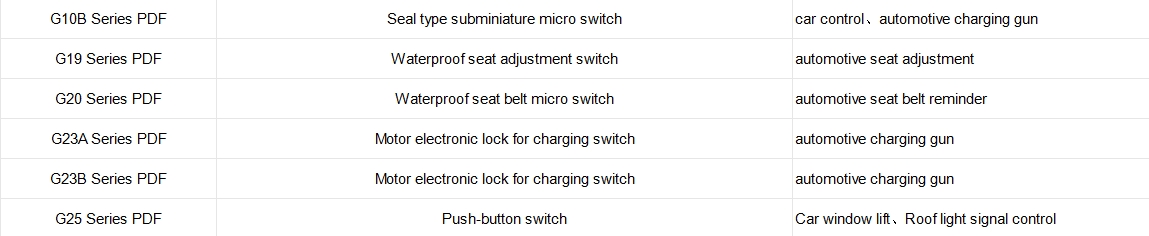

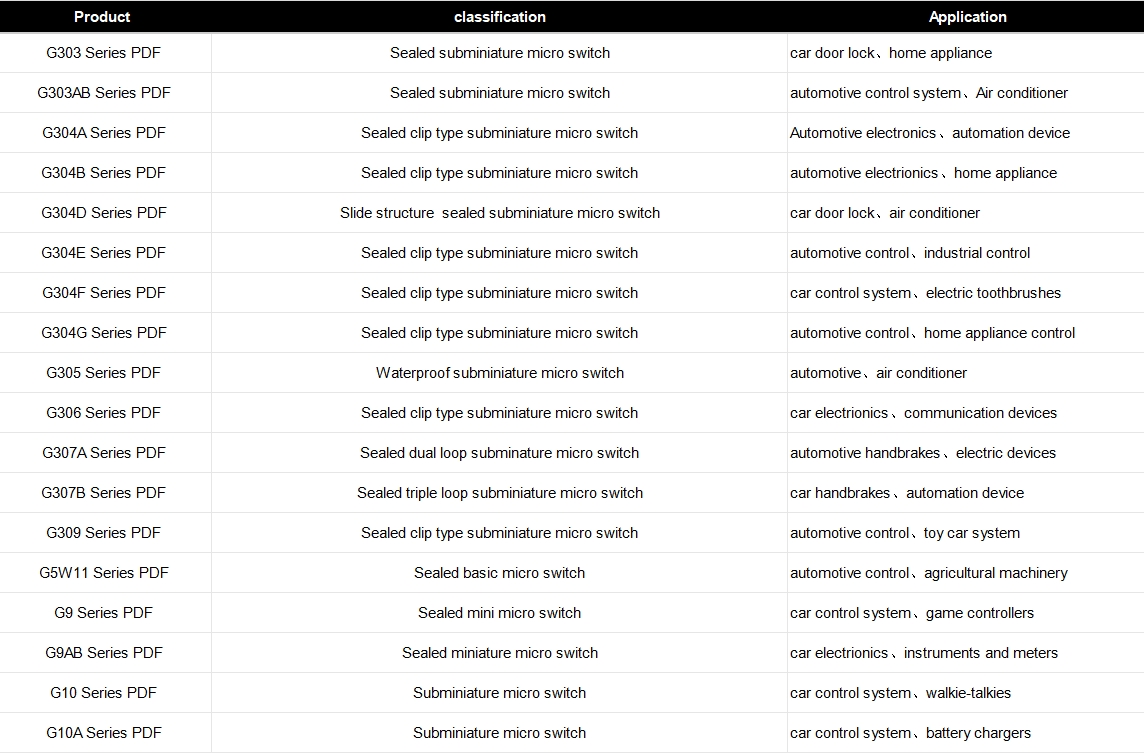

Download Catalog
Key Features of Waterproof Micro Switches
Waterproof micro switches are core components in daily life and production. Given the extremely stringent requirements of automotives and home appliances for long lifespan, high precision, and waterproof performance, the design and manufacturing of waterproof micro switches typically revolve around the following core advantages:
Extra-Long Mechanical Lifespan
These waterproof micro switches boast an extra-long mechanical lifespan, reaching 1,000,000 cycles or even 2,000,000 cycles, which can meet the needs of long-term, high-frequency use in home appliances or automotives.
High-Grade Sealing Structure
These waterproof micro switches feature a high-grade sealing structure (IP67, IP68). Whether exposed to outdoor rain, high-pressure washing, or humid environments, the switch's internal components remain dry, with zero impact on electrical performance, meeting the stringent safety requirements of equipment.
High-Low Temperature Resistance
These waterproof micro switches are made from carefully selected engineering plastics, with an operating temperature range of -40°C to +85°C, withstanding extreme temperature fluctuations and meeting the stringent temperature requirements of certain environments such as refrigerators.
High Dielectric Strength
These waterproof micro switches possess excellent sealing properties, combined with high-quality contacts, enabling them to withstand higher pulse voltages. Their dielectric strength reaches AC750V RMS (50-60Hz), ensuring safer operation during device startup.
High Reliability Waterproof Micro switch for Car Seat Systems
A renowned British automaker needed a reliable switch solution for its power seat adjustment modules. The client required a switch capable of withstanding the demanding requirements of high-end vehicles while ensuring a smooth, premium tactile experience for the driver. Therefore, the client presented three key requirements to the micro switch manufacturer: a sealed construction, ten-year durability, and extremely small size. After development, Unionwell tailored the G19 Series car seat adjustment switch specifically for the brand's automotive environment.
Unionwell has custom-designed the G19 Series car seat adjustment switch for the brand's automotive environment.
IP67 Protection Rating: Our switches utilize high-precision sealing rings and lead wire molding processes to ensure the internal contact system remains completely dry even if liquid is splashed directly onto the seat controls.
Optimized Operating Force: We've customized the trigger pressure for a comfortable feel and enable two-way or four-way switching, ensuring smooth and responsive adjustments every time the user adjusts the seat.
High-Performance Materials: Gold-plated or silver-plated alloy contacts ensure low contact resistance and prevent oxidation, providing a mechanical lifespan exceeding 50,000 cycles.
Global Compliance: This solution fully complies with ISO 9001 and IATF 16949 standards, mandatory requirements for Tier 1 automotive supply chains.
Integrating Unionwell's waterproof micro switches significantly improves the reliability of the customer's seat adjustment module. The consistent tactile feedback of the switches has improved vehicle reliability in expert consumer reviews, resulting in consistently strong sales. Unionwell's waterproof micro switch solution provides the renowned British automotive brand with the perfect balance of durability and precision, and both parties are extremely satisfied with this collaboration.
Our Certification
FAQS
What certifications do your micro switches have?
Posted on 2024-09-02
Our micro switches are certified to meet international safety and quality standards, including UL, CUL, ENEC, CE, CB, and CQC. Additionally, our manufacturing processes adhere to ISO14001, ISO9001, and IATF16949 quality management systems, ensuring the highest level of product reliability and safety.
Can you provide a list of products and a quote?
Posted on 2024-09-02
We can provide you with a list of products, but we have many products and cannot provide price lists and datasheets. You can tell us the products you are interested in, and we will reply you within 24 hours.
What is your lead time for orders?
Posted on 2024-09-02
Our order delivery time depends on the complexity of the order as well as the quantity, the general range is about 2~4 weeks
Do you support the production of Oldham (Oliginar Desini Manufatule) or Om (Oliginar Ekipmente Manufatule) model?
Posted on 2024-09-02
Of course, we have professional equipment and a number of R&D engineers with 20 years of experience, and have many years of production experience for ODM and OEM production mode, and are fully confident that we can respond to your product needs.
What kind of technical support do you offer after purchase?
Posted on 2024-09-02
We provide comprehensive after-sales support, our dedicated support team will help you to address issues or queries, make your operations run smoothly and efficiently.
Do you offer customized services for products that are not available?
Posted on 2024-09-02
Yes, we will provide customers with intimate customized services, our factory has many years of experience in micro switch manufacturing and professional equipment, factory automation production has reached 80%, want to know more details welcome to leave your information to consult.
