Model No: G25 Series
Push button Automotive Window Controller G25 Series Switch Unionwell
Model Number:G25-1311
Max. Current:1A
Max. Voltage:14.5VDC
Allowable operating frequency: 15~20 cycles/min
Electrical life:30,000cycles
Mechanical life:300,000cycles
Lever type:push button
Operating force:500gf max
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:SMD terminals or PCB terminals
Color:Black and White
Application:Automotive, home appliances,electronics equipments
Max. Current:1A
Max. Voltage:14.5VDC
Allowable operating frequency: 15~20 cycles/min
Electrical life:30,000cycles
Mechanical life:300,000cycles
Lever type:push button
Operating force:500gf max
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:SMD terminals or PCB terminals
Color:Black and White
Application:Automotive, home appliances,electronics equipments
minimum order :
1000 pieces
Quantity :
Product Description
The G25 Series Push Button Automotive Window Controller is a compact and responsive push button switch widely used in automotive power window systems. Its stable contact design ensures accurate output of window opening and closing commands, maintaining consistent operation in ambient temperatures ranging from -40°C to +85°C.
As an automotive push-button switch suitable for vehicle systems, the G25 Series can also be used for signal detection tasks in various electronic and electrical devices. Its 50mA 18VDC rating and 300,000 mechanical and electrical cycles ensure high reliability even under frequent operation.
Furthermore, the switch utilizes a precision micro switch structure, achieving sensitive triggering and a long service life. The overall structure is meticulously designed by the micro switch manufacturer, providing a stable and durable push button operating component for vehicle control systems.
Feature
◆ High-reliability contact switch for low-load applications
◆ High-temperature durability
◆ Selectable locking and non-locking modes
◆ vailable in both PCB and surface mount connection terminals
◆ High-temperature durability
◆ Selectable locking and non-locking modes
◆ vailable in both PCB and surface mount connection terminals
Parameter
| Permissible Operating Frequency | 15~20 cycles/min | |
| Insulation Resistance | ≥3MΩ (VDC 100V) | |
| Contact Resistance (Initial Value) | Terminal type | ≤ 100mΩ |
| Withstand Voltage | Inter-terminal Voltage | AC100V, 50/60Hz, 1min. |
| Between Each Terminal and Non-live Metal Parts | AC1500V, 50/60Hz, 1min. | |
| Lifespan | Electrical | 30,000cycles(15~20 cycles/min) 1A 14.5VDC 10mA 5VDC |
| Mechanical | 300,000 cycles(60cycles/min) | |
| Operating temperature | -40℃~+85℃ | |
| Operating humidity | Under 95%RH(+5℃~+35℃) | |

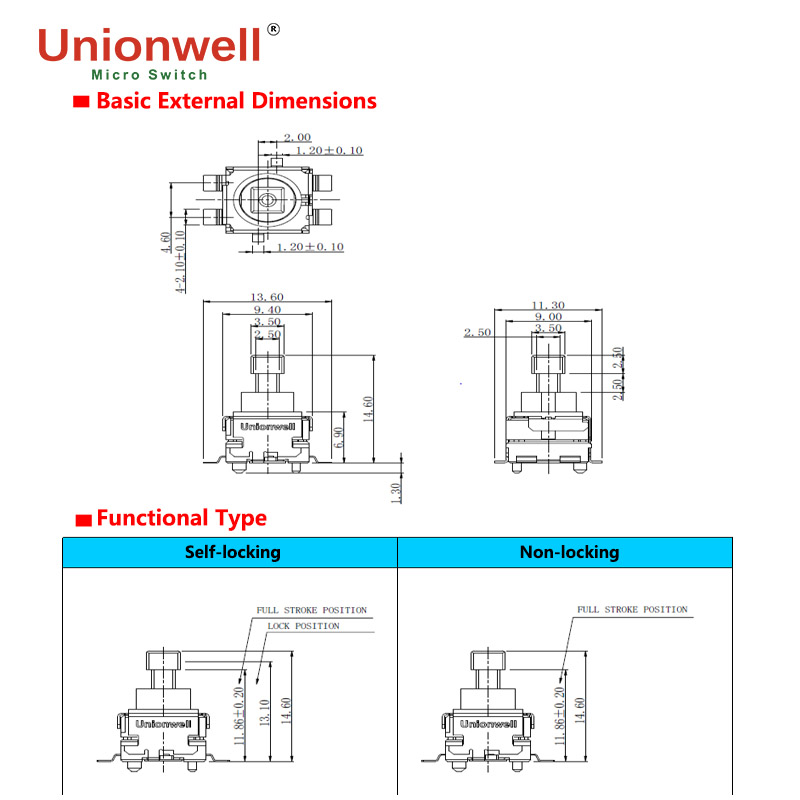

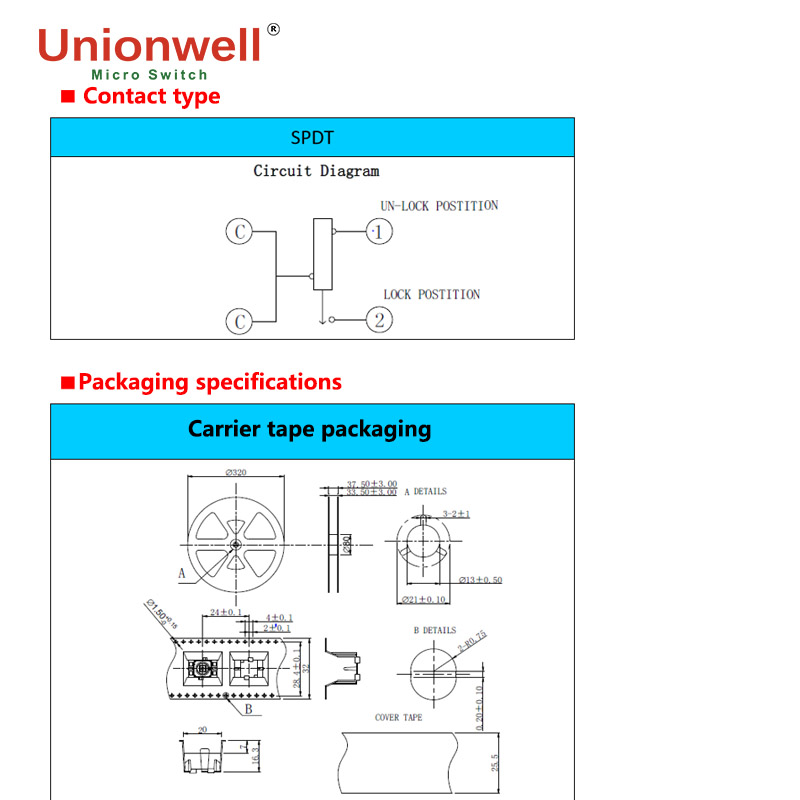

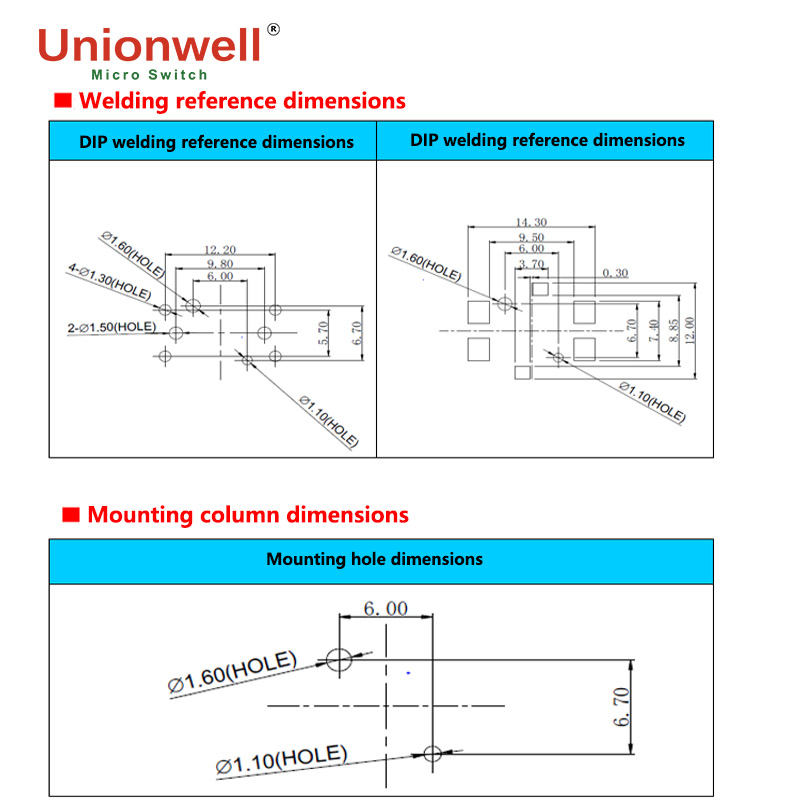

Drawing
Details View

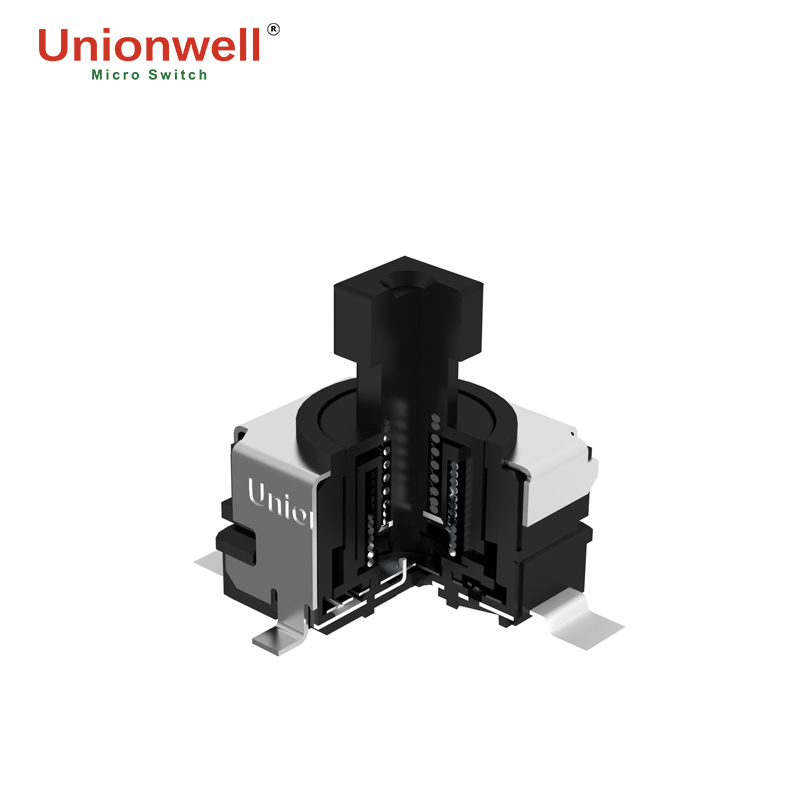

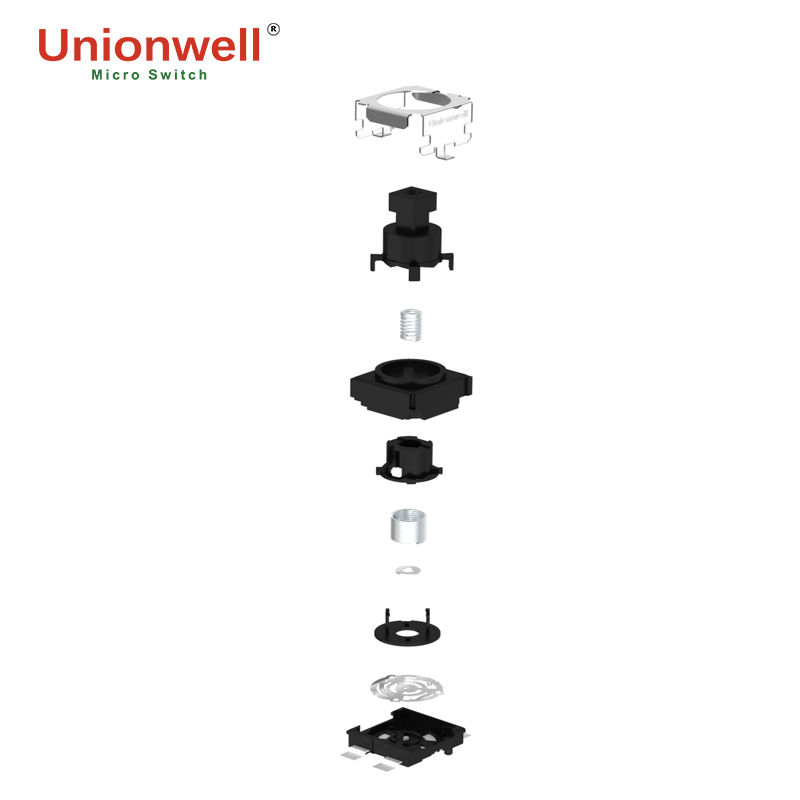

Here are the detailed component images and cross-sectional views of this push button:
Application
As a compact and highly responsive push button switch, this product is specifically designed for window control in new energy vehicles. Its stable contact structure ensures precise execution of commands during window raising and lowering, enhancing the overall user experience.
In electronic and electrical equipment, this push button switch can also be used for signal detection tasks, helping the system achieve reliable input control. The product boasts a mechanical lifespan of approximately 300,000 cycles, maintaining consistent triggering performance even under frequent operation.
