Unionwell Air Pressure Switch Wind Pressure Switch For Stove
Model Number:GPS100 Series
Max. Current:16A
Max. Voltage:250VAC
Max. Permissible Pressure:4000Pa
Operating Pressure Range:25-1500 Pa
Switching Pressure Rahnge:10 Pa Min.
Operating Temperature:-40-+90℃
Certification:ISO9001 & TS16949
Switching Rating:0.1A/ 3A /5A /16A 125/250VAC
Function/circuit:SPDT (or SPST-NO, NC for option)
Measured Media:Air
Application:Water Pump
Product name:GPS100 series
Max. Current:16A
Max. Voltage:250VAC
Max. Permissible Pressure:4000Pa
Operating Pressure Range:25-1500 Pa
Switching Pressure Rahnge:10 Pa Min.
Operating Temperature:-40-+90℃
Certification:ISO9001 & TS16949
Switching Rating:0.1A/ 3A /5A /16A 125/250VAC
Function/circuit:SPDT (or SPST-NO, NC for option)
Measured Media:Air
Application:Water Pump
Product name:GPS100 series
minimum order :
1000 pieces
Quantity :
Product Description
The Unionwell Air Pressure Switch Wind Pressure Switch for Stove is a sensitive and reliable air pressure switch widely used in boilers and water heaters to detect changes in air pressure within the combustion system, ensuring smooth exhaust and safe operation. Its operating temperature range is -40℃ to +90℃, and it has electrical specifications of 16A, 250VAC, and can withstand a maximum pressure of 4000Pa.
As a gas stove air pressure switch, it supports an operating pressure range of 25–1500Pa and has a minimum switching pressure of 10Pa. It provides stable pressure judgment during ignition, exhaust, or fan operation, ensuring timely shutdown protection under abnormal air pressure conditions.
As an air pressure switch meticulously designed by a micro switch manufacturer, it uses a highly sensitive and reliable microswitch as its main switching element. Its precise action makes it suitable for various domestic and commercial heating systems, providing long-term safety assurance for boilers and water heaters.
Application
◆ The GPS100 series pressure switches are specifically designed for the high-volume OEM market, with typical applications including boilers, wall-hung boilers, water heaters, HVAC systems, and other industrial equipment.
◆ This pressure switch features custom pressure sensing, positive pressure sensing, negative pressure sensing, and differential pressure sensing.
◆ This pressure switch features custom pressure sensing, positive pressure sensing, negative pressure sensing, and differential pressure sensing.
◆ Highly sensitive and reliable microswitches are used as the primary switching element, providing load control capabilities up to 16A 125/250VAC.
Parameter
| Place Of Origin | Guangdong, China (Mainland) | |
| Brand Name | Unionwell | |
| Model Number | GPS100 series | |
| Rating | 0.1A 125/250VAC | |
| 3A 125/250VAC | ||
| 5A 125/250VAC | ||
| 16A 125/250VAC | ||
| Terminal Style | Quick Connect Terminals | |
| Pressure setting | Open pressure range | 25-1500Pa |
| Off pressure | 10Pa Min. | |
| Maximum permissible pressure | 4000Pa | |
| Operating temperature range | -40~+90℃ | |
| Color Of Micro Switch | Grey or Black | |

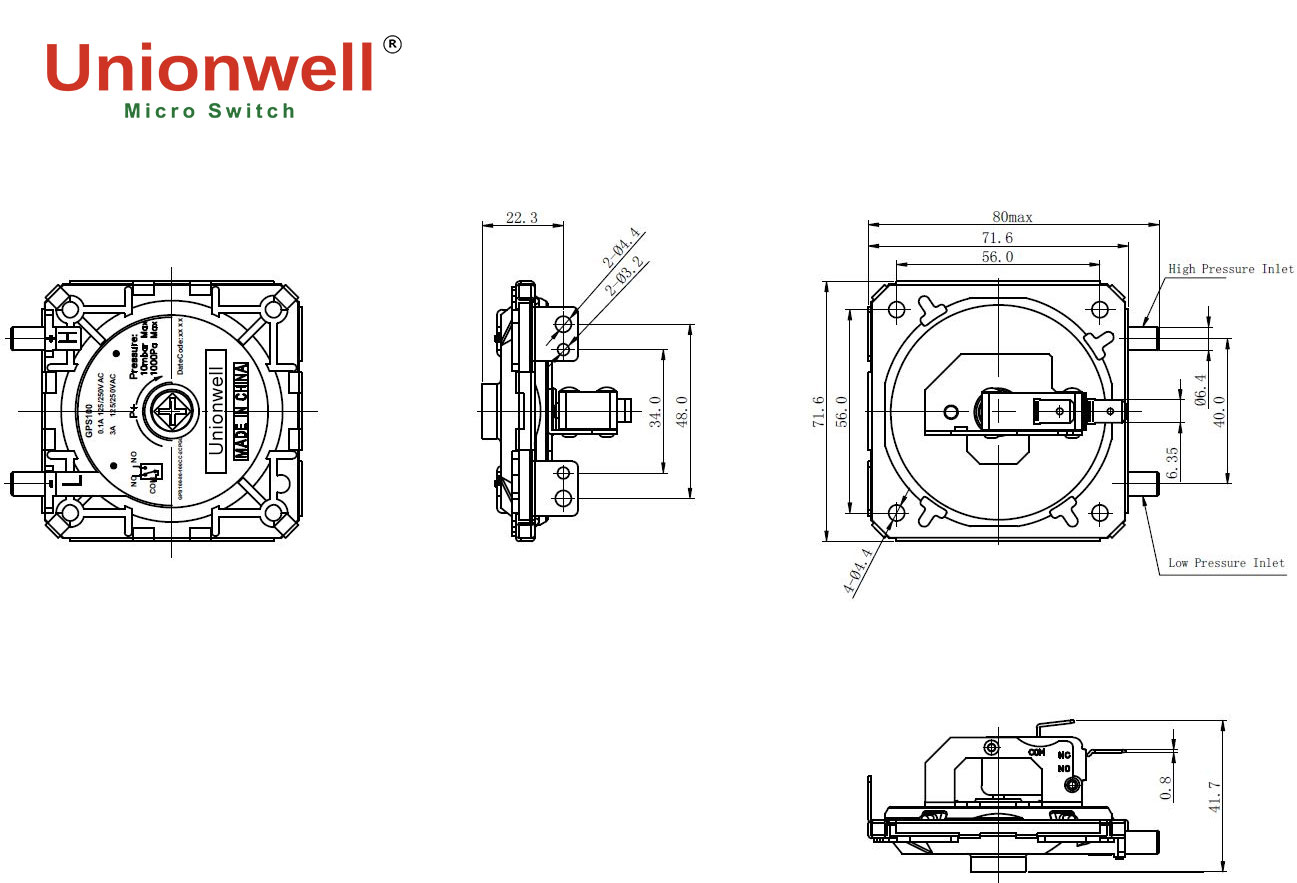

Drawing
Installation and sampling tubing connection setup
Installation：The switch diaphragm should always be installed vertically to ensure the factory-calibrated opening pressure is achieved; avoid installing the pressure sampling tubing upwards.
For Positive Pressure Sensing Only: Connect the pressure sampling tubing to the H terminal and leave the L terminal open to the atmosphere.
For Negative Pressure Sensing Only: Connect the pressure sampling tubing to the L terminal and leave the H terminal open to the atmosphere.
Differential Pressure Sensing: Connect the high-pressure sampling tubing to the H terminal and the low-pressure sampling tubing to the L terminal.
