Model No: G1 series
Unionwell G1 Series Active Waterproof Tact Switch
Rating: 12VDC 20μA~20mA
Model Number:G1 series
Electrical life:100,000 cycles
Mechanical Life:100,000 cycles
Operating Environmental Humidity:85%RH Max.
Electrical Operating Frequency: 20 cycles/min.
Mechanical Operating Frequency: 120 cycles/min.
Product name:waterproof tact switch
Operating Temperature: -40℃~+85℃
Unit Weight: 0.85g
Model Number:G1 series
Electrical life:100,000 cycles
Mechanical Life:100,000 cycles
Operating Environmental Humidity:85%RH Max.
Electrical Operating Frequency: 20 cycles/min.
Mechanical Operating Frequency: 120 cycles/min.
Product name:waterproof tact switch
Operating Temperature: -40℃~+85℃
Unit Weight: 0.85g
minimum order :
1000 pieces
Quantity :
Product Description
The Unionwell G1 Series Active Waterproof Tact Switch is a waterproof tact switch primarily used in control panels and status confirmation modules in automotive electronic systems. It operates within a temperature range of -40℃ to +85℃ and boasts an IP67 waterproof and dustproof rating, maintaining stable triggering performance even in vibration, dust, and humid environments.
In industrial control, this product, as a linked waterproof tact switch, is commonly used in equipment operation buttons, linkage control units, and safety confirmation circuits. It offers a mechanical and electrical life of 100,000 cycles and a rated current range of 20μA to 20mA, suitable for low-power signal detection, ensuring reliability and consistency during long-term operation.
As an automotive tact switch meticulously designed by a micro switch manufacturer, the G1 series features optimized structural design and tactile feedback for harsh operating conditions, effectively preventing false triggering and improving operational safety, while balancing durability, stability, and application flexibility.
Feature
◆ Waterproof and dustproof (IP67) design
◆ Long lifespan, high reliability
◆ 0.8*0.8 PCB terminals
◆ Safe operation design requiring simultaneous operation of both handles for power-on
◆ Compatible with various handles and control methods
◆ Ultra-compact size, suitable for confined spaces
◆ Long lifespan, high reliability
◆ 0.8*0.8 PCB terminals
◆ Safe operation design requiring simultaneous operation of both handles for power-on
◆ Compatible with various handles and control methods
◆ Ultra-compact size, suitable for confined spaces

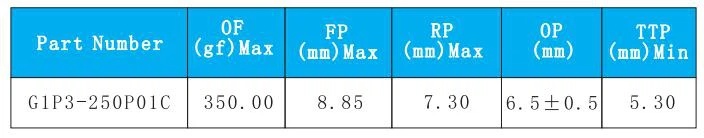

Parameter
| Rating | 20μA~20mA 12VDC | |
| Operating Frequency | Electrical | 20 cycles/minute |
| Mechanical | G1 Series: 120 cycles/minute G17 Series: 80 cycles/minute | |
| Contact Resistance(Initial Value) | < 200mΩ | |
| Insulation Resistance | >10MΩ | |
| Vibration Durability | 10~50Hz Amplitude 1.5mm | |
| Voltage Resistance | Between Terminals | 500VAC (50~60Hz) |
| Between Terminals And Hosing | 1500VAC (50~60Hz) | |
| Service Life | Electrical | 100,000 cycles |
| Mechanical | 100,000 cycles | |
| Storage Temperature | -40°C~+85°C | |
| Storage Humidity | 85%RH Max | |
| Unit Weight | G1:0.85g G17:1.1g | |

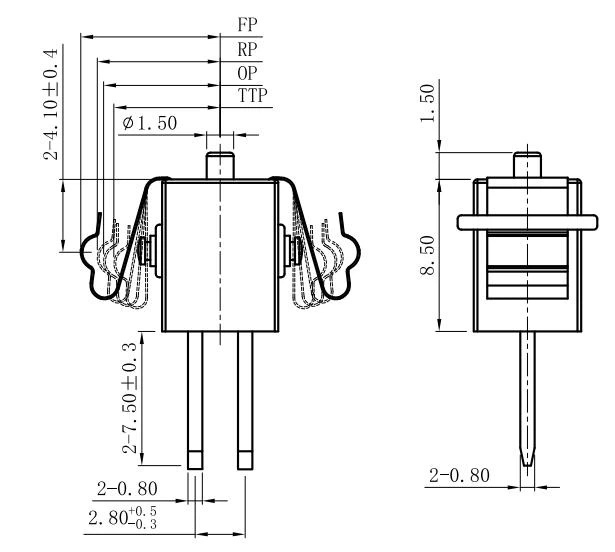

Drawing
Application
As a tact switch, this product is widely used in automotive electronic systems, such as control panels and safety-related operating modules. Its compact structure and clear trigger feedback ensure stable performance even under vehicle vibration and frequent operation.
In the industrial control field, this product, with its IP67 waterproof and dustproof rating, is suitable for equipment control buttons and human-machine interfaces. With a mechanical life of 100,000 cycles, its design, requiring simultaneous operation of both handles to activate, effectively prevents false triggering, improves equipment operational safety, and is suitable for applications with high reliability requirements.
