Unionwell G11 Series DPDT Waterproof Limit Micro Switch
Model Number:G1105-45000E01E1-300
Max. Current:5A
Max. Voltage:250VAC
Protection Level:IP67
Rating:0.5A 250VDC,0.5A/5A 250VAC
operating Frequency:Electrical:10~30 cycles/min, Mechanical :120 cycles/min
Contact Resistance:30~100mΩ Max
Insulation Resistance:100MΩ Min(at 500VDC)
Dielectrict Strength:AC 750V RMS(50-60Hz)
Storage Temperature:-25°C~+85°C
Storage Humidity:85%RH Max
Electrical Life:50,000 cycles
Mechanical Life:2,000,000 cycles
Unit Weight: about 110g(Eight lines)
Certification:ENEC,RoHS,Reach
Max. Current:5A
Max. Voltage:250VAC
Protection Level:IP67
Rating:0.5A 250VDC,0.5A/5A 250VAC
operating Frequency:Electrical:10~30 cycles/min, Mechanical :120 cycles/min
Contact Resistance:30~100mΩ Max
Insulation Resistance:100MΩ Min(at 500VDC)
Dielectrict Strength:AC 750V RMS(50-60Hz)
Storage Temperature:-25°C~+85°C
Storage Humidity:85%RH Max
Electrical Life:50,000 cycles
Mechanical Life:2,000,000 cycles
Unit Weight: about 110g(Eight lines)
Certification:ENEC,RoHS,Reach
minimum order :
1000 pieces
Quantity :
Product Description
The Unionwell G11 Series DPDT Waterproof Limit Micro Switch is a high-performance limit switch widely used in industrial automation and valve control systems. Its waterproof and dustproof design meets IP67 protection standards, ensuring long-term stable operation in harsh environments, making it particularly suitable for industrial applications requiring high reliability.
In industrial automation control, this waterproof limit switch is commonly used in robotic arms, production lines, and various automated equipment. This DPDT limit switch features a dual-breakpoint (DPDT) design, providing higher control precision and more flexible circuit switching, ensuring that every action in the automation system is precisely triggered, thereby improving overall production efficiency. Its excellent mechanical life (2,000,000 cycles) and electrical life (50,000 cycles) mean that it provides long-term reliable performance even in high-frequency use environments, reducing the risk of equipment failure and lowering maintenance costs.
In valve control, the industrial limit switch is used to accurately detect the valve position, ensuring that the valve opens and closes according to the predetermined program, avoiding system failures caused by valve jamming or incorrect operation. This limit switch's high sensitivity and durability make it outstanding in valve control applications, capable of withstanding complex conditions such as high temperatures, ensuring safe and stable system operation.
Furthermore, its robust design and superior performance make it an ideal choice for industrial applications, especially in environments requiring waterproof, dustproof, and high-precision control. As a limit switch meticulously designed by a micro switch manufacturer, it provides extremely reliable and durable control.
Feature
◆ Small size and compact structure
◆ long lifespan and high reliability
◆ P67 waterproof and dustproof design
◆ Double-break conversion mechanism
◆ Multiple installation methods and operating types
◆ Widely used in industrial control and other fields
◆ long lifespan and high reliability
◆ P67 waterproof and dustproof design
◆ Double-break conversion mechanism
◆ Multiple installation methods and operating types
◆ Widely used in industrial control and other fields

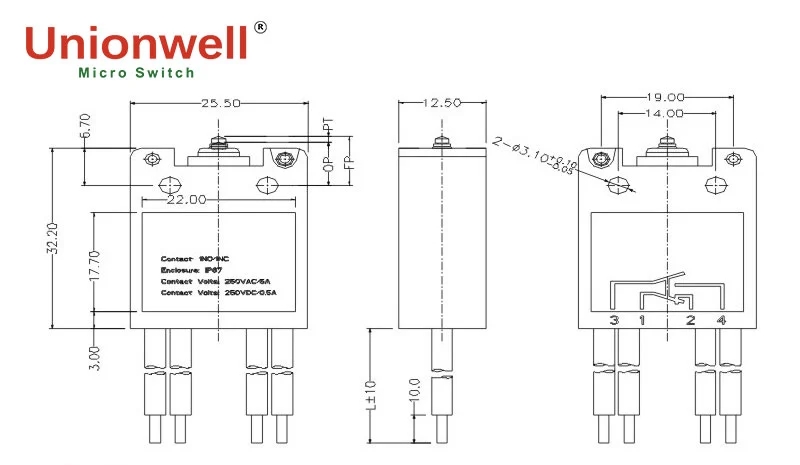

Drawing
Parameter
| Rating | 05 | 0.5A 250VDC |
| 0.5A/5A 250VAC | ||
| operating frequency | electrical | 10~30 cycles/min |
| mechanical | 120 cycles/min | |
| Initial contact resistance | Maximum 30~100mΩ (depending on type, excluding wire resistance) | |
| Insulation resistance | 100MΩ Min(at 500VDC) | |
| Dielectric strength | AC750V RMS(50-60Hz) | |
| Operating environment temperature | -25℃~+85℃ | |
| Operating environment humidity | 85%RH Max | |
| Lifespan | electrical | 50,000 cycles(depend on part NO.) |
| mechanical | 2,000,000 cycles | |
| Unit weight | about 110g (Eight-wire type) | |
Application
This waterproof limit switch is widely used in positioning of mechanical equipment, control of automated production lines, and liquid level control. Its DPDT (Double Break) design allows for flexible switching between different circuits, providing higher control precision. Whether in high-speed production environments or under harsh operating conditions, the mechanical and electrical lifespan of the G11 series limit switch is sufficient to support long-term, efficient operation, reducing the frequency of maintenance and replacement.
Furthermore, its dustproof and waterproof performance ensures stable operation even in complex conditions such as high humidity and dust, making it an indispensable and reliable component in industrial automation control systems.
Designed specifically for industrial control, this high-performance limit switch boasts excellent waterproof and dustproof capabilities, meeting IP67 protection standards and ensuring stable operation for extended periods in harsh environments. Its compact and durable design allows it to withstand high-frequency operation, making it suitable for precise control in various industrial equipment.
This waterproof limit switch is widely used in positioning of mechanical equipment, control of automated production lines, and liquid level control. Its DPDT (Double Break) design allows for flexible switching between different circuits, providing higher control precision. Whether in high-speed production environments or under harsh operating conditions, the mechanical and electrical lifespan of the G11 series limit switch is sufficient to support long-term, efficient operation, reducing the frequency of maintenance and replacement.
Furthermore, its dustproof and waterproof performance ensures stable operation even in complex conditions such as high humidity and dust, making it an indispensable and reliable component in industrial automation control systems.
