Model No: GT01 series
Unionwell GT01 Series Detector Switch
Model Number: GT01P100U
Max. Current: 0.1A
Max. Voltage: 12VDC
Operating Temperature:-25℃~+80℃
Company name:Unionwell
Terminal Type:Multiple terminal options available
Lever Type: Customizable operating handles to meet specific needs
Max Operating Force:Max. 70gf at the pin plunger
Electrical life:Over 10,000 cycles
Mechanical Life:Over 100,000 cycles
Application:Automotive, Electronic Equipment, Apparatus and Instruments
Max. Current: 0.1A
Max. Voltage: 12VDC
Operating Temperature:-25℃~+80℃
Company name:Unionwell
Terminal Type:Multiple terminal options available
Lever Type: Customizable operating handles to meet specific needs
Max Operating Force:Max. 70gf at the pin plunger
Electrical life:Over 10,000 cycles
Mechanical Life:Over 100,000 cycles
Application:Automotive, Electronic Equipment, Apparatus and Instruments
minimum order :
1000 pieces
Quantity :
Product Description
The Unionwell GT01 Series Detector Switch is a compact and responsive detector switch suitable for position detection and status feedback in automotive and remote control devices. Rated at 0.1A 12VDC, it operates stably in environments ranging from -25℃ to +80℃, accurately outputting control signals to meet the basic reliability requirements of automotive and consumer electronics.
In addition, this product is often used as a car audio detector switch for signal detection of audio panel, function buttons, or mechanical movements. It boasts a 100,000 mechanical lifespan and a 10,000 electrical lifespan, maintaining stable performance under frequent operation and enhancing the user experience and durability of car audio systems.
As an automotive detector switch meticulously designed by a micro switch manufacturer, the GT01 series is also suitable for various automotive electronics scenarios, such as module status verification and mechanical trigger detection. Its terminals and operating handles can be flexibly configured according to application requirements, balancing reliability, adaptability, and long-term stable operation.
Feature
◆ Small size, lightweight, high precision
◆ Long lifespan, low force, and more operating force options
◆ Long lifespan, low force, and more operating force options
Parameter
| Electrical characteristics | Rated load | 0.1A 12VDC/50μA 3VDC |
| Contact resistance | 100mΩ Max.(Initial value) | |
| Insulation resistance | 50MΩ Min. | |
| Withstand voltage | AC 50V(50-60Hz 1 Min.) | |
| Electrical life | 10,000 cycles(Min.) | |
| Mechanical/reliability characteristics | Operating force | Refer to the specification table |
| Mechanical life | 100,000 cycles(min.) | |
| Operating Environmental temperature | -25℃~+80℃ | |
| Operating Environmental Humidity | ≤85%RH | |
| Solderability | 245℃±5℃ 3s±0.5s | |
| Soldering Heat Resistance | 260℃±5℃ 3s±1s |

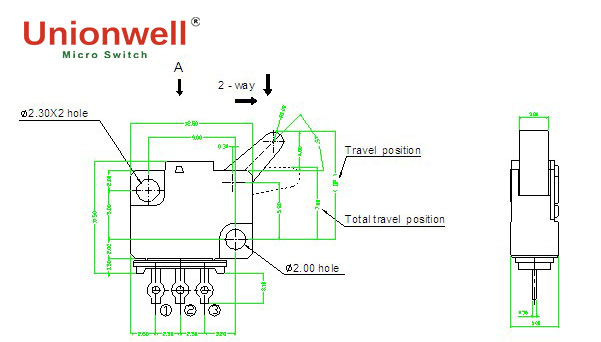

Drawing
Application
As a highly sensitive and reliable detector switch, it is widely used in automotive systems, remote control devices, construction machinery, and car audio systems. This product can be used for position detection, status feedback, and signal triggering, helping devices achieve precise control and stable operation. Its terminal type and operating handle can be customized to meet different installation spaces and application requirements, facilitating system integration and making it suitable for various application scenarios with high requirements for flexibility and reliability.
