Model No: ZE-235-2

Unionwell Waterproof Sealed Rocker Switch ZE series

Protection Level:IP67
Max. Current:16A
Max. Voltage:250VAC
LED:NO
Electrical Life:12000 cycles
Mechanical life:50000 cycles
Contact Resistance:30mΩMax
Insulation Resistance:At 500VDC,100mΩ Min
Certification:Rosh Reach

minimum order :

1 piece

Quantity :

Contact Now

Product Description

The ZE Series Waterproof Sealed Rocker Switch is a reliable sealed rocker switch with IP67 waterproof and dustproof capabilities, making it ideal for outdoor applications such as garden tools, outdoor lighting, and portable power control. It maintains stable performance within an operating temperature range of 0°C to 105°C, meeting the demands of varying environments.

In industrial machinery applications, this industrial rocker switch provides reliable on/off control for production equipment, control panels, and motor drive systems with its 50,000 mechanical cycles and 12,000 electrical cycles. Its ratings of 8A 250VAC / 16A 125VAC / 5A 125V are suitable for a variety of industrial electrical loads.

Furthermore, the ZE Series, meticulously designed by a micro switch manufacturer, is a high-quality rocker switch whose excellent protection from its sealed structure ensures long-term durability and high reliability in outdoor and industrial environments.

Feature

◆ Waterproof and dustproof (IP67) design
◆ Compact size
◆ Long life, high reliability

Parameter

Contact Resistance(Initiative)		30mΩMax
Insulation Resistance		At 500VDC,100mΩ Min
Rating		8A 250VAC / 16A 125VAC/5A 125V
Operating Temperature		0°C~+105°C
Storage Humidity		85%RH Max
Service Life	Electrical	12,000 cycles
	Mechanical	50,000cycles

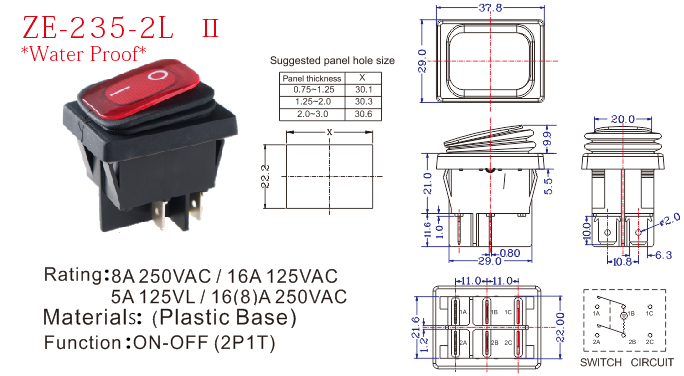

Drawing

Application

Our waterproof, sealed rocker switch is designed to provide superior reliability and durability in harsh environments. Its waterproof and dustproof (IP67) design is ideal for applications susceptible to moisture, dust, and other harsh conditions. Waterproof, sealed rocker switches are ideal for outdoor equipment, marine systems, and industrial machinery. This mini momentary rocker switch is perfect for applications with limited space but requiring precise control, such as small electronic devices and portable devices.
