Unionwell Waterproof Swing Rotary Switch G16 Series
Rating: 0.1A 12VDC
Model Number:G16 series
Switch color:grey and black.
Electrical life:100,000 cycles
Mechanical Life:100,000 cycles
Ambient Humidity:85%RH Max.
Electrical Operating Frequency: 20 cycles/min.
Mechanical Operating Frequency: 30 cycles/min.
Product name:waterproof swing rotary switch
Model Number:G16 series
Switch color:grey and black.
Electrical life:100,000 cycles
Mechanical Life:100,000 cycles
Ambient Humidity:85%RH Max.
Electrical Operating Frequency: 20 cycles/min.
Mechanical Operating Frequency: 30 cycles/min.
Product name:waterproof swing rotary switch
minimum order :
1000 pieces
Quantity :
Product Description
The Unionwell Waterproof Swing Rotary Switch G16 Series is a compact swing rotary switch suitable for multi-functional adjustments in automobiles, such as lighting mode switching and in-vehicle control panel function selection. Its operating temperature range is -40℃ to +85℃, maintaining stable performance even in the high and low temperature environments of vehicles.
As a waterproof rotary switch, the G16 series also performs excellently in industrial control equipment. Its IP67 waterproof and dustproof construction ensures reliable operation in humid, dusty, or outdoor environments, with an electrical and mechanical life of 100,000 cycles, making it suitable for industrial scenarios involving long-term, frequent operation.
Furthermore, the G16 series is also an automotive rotary switch for vehicle control systems, rated at 0.1A 12VDC, meeting the low-current signal switching requirements of automotive applications. The product is meticulously designed by a micro switch manufacturer, demonstrating outstanding performance in stability, durability, and environmental adaptability.
Feature
◆ Waterproof and dustproof (IP67) design
◆ Long life, high reliability
◆ Bidirectional conduction design
◆ Ultra-compact size, suitable for confined spaces
◆ Long life, high reliability
◆ Bidirectional conduction design
◆ Ultra-compact size, suitable for confined spaces
Parameter
| Rating | 0.1A 12VDC | |
| Operating Frequency | Electrical | 20 cycles/min. |
| Mechanical | 30 cycles/min. | |
| Initial contact resistance | 200mΩ Max. | |
| Insulation resistance | 100MΩ Min. | |
| Vibration resistance | 10~55Hz, amplitude 1.5mm | |
| Shock resistance | Acceleration 98m/s², time 11ms | |
| Withstand voltage | between terminals | 500VAC 50~60Hz for 1 Min. |
| between terminals and housing | 1,000VAC 50~60Hz for 1 Min. | |
| Lifespan | Electrical | 100,000 cycles |
| Mechanical | 100,000 cycles | |
| Operating Force | 200gf Max | |
| Operating Environmental Temperature | -40℃~+85℃ | |
| Storage Environmental Humidity | 85%RH Max. | |

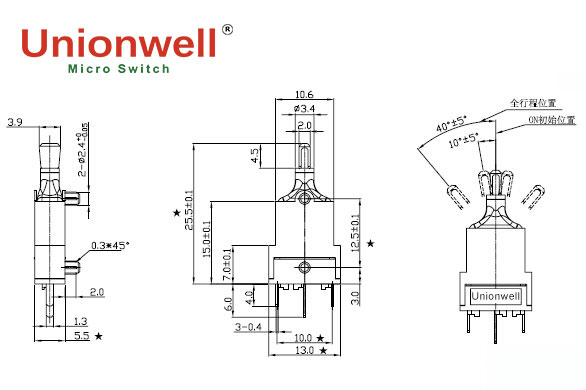

Drawing
Details View

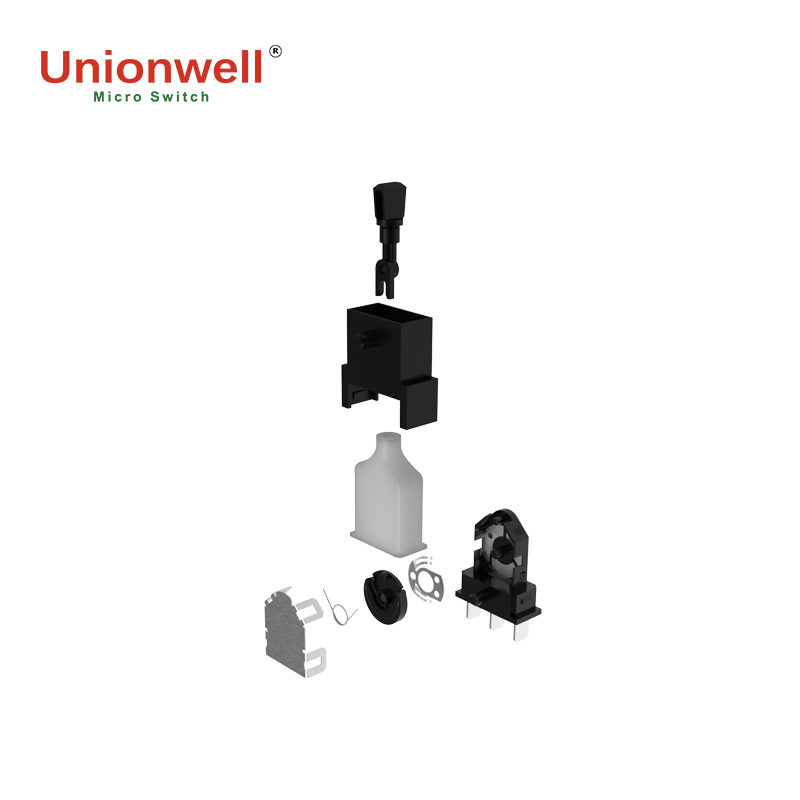

In this details view, you can see the inside about the G16 series:
Application
As a reliable swing rotary switch, this product features a bidirectional conduction design, offering smooth and easy operation suitable for various control needs. In the automotive industry, it is commonly used for switching vehicle functions and adjusting control panels, ensuring precise and stable switching performance even in complex vehicle environments.
In industrial control, this switch can adapt to the adjustment and mode switching of various devices, and its mechanical life of over 100,000 cycles ensures its reliability and durability even under long-term, frequent use. Furthermore, its IP67 waterproof structure allows it to withstand outdoor, humid, and dusty environments, significantly improving its operational stability.
