Model No: G309-150M00E42I-DA450CU

Sealed Clamp Subminiature Micro Switch G309 Series

Brand Name: Unionwell
Model Number: G309-150M00E42I-DA450CU
Operation Force: 150gf Max.
Terminal Type: No Lever Pin Plunger
Circuit Code: Slide Type SPST-NO
Shape and Posts: G Type Two Sides Posts
Posts Dimension: Φ2.2*0.8mm
Wires Length: 450 Length
Special Designator: Molded Lead Wires On Left Side
Protective structure: IP67 (without terminals)
Operating Frequency: 120 cycles/min.

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The Sealed Clamp Subminiature Micro Switch G309 Series is a compact clamp subminiature micro switch widely used inside charging guns for new energy vehicles. Its primary function is to detect insertion and removal actions and ensure the safe triggering of the charging process. It operates within a temperature range of -40℃ to +85℃, maintaining stable performance even in harsh outdoor environments.

As an automotive micro switch, this sealed subminiature micro switch boasts an IP67 waterproof and dustproof rating, resisting rain, dust, and the environmental stresses of frequent insertions and removals. Its 0.1A 12VDC rating meets the signal detection requirements of the charging gun, providing accurate and reliable feedback for the entire charging interface control system.

Furthermore, this sealed subminiature micro switch offers 300,000 mechanical and electrical cycles. Its high reliability and long durability significantly extend the overall lifespan of the charging gun. Designed by a micro switch manufacturer, this product is ideal for demanding vehicle charging applications.

Feature

◆ Waterproof and dustproof (IP67) design
◆ Small size and compact structure
◆ Equipped with various types of operating levers
◆ Full range of terminal blocks

◆ Long life and high reliability.
◆ Multiple mounting sizes to meet different installation requirements
◆ Contact-type structure
◆ Widely used in automotive control, home appliance control, industrial control, and other fields

Parameter

Allowable linear operation speed		1~500mm/s
Allowable operation frequency		120 cycles/min.
Insulation resistance		≥100MΩ(DC500V)
Contact resistance (initial value)	Terminal type	≤ 100mΩ
	Wire type	≤ 500mΩ(300mm wire length)
Withstand voltage	Between terminals	AC500V, 50/60Hz, 1min.
	Between terminals and non-energized metal parts	AC1000V, 50/60Hz, 1min.
Vibration	Malfunction	10-55Hz (Double amplitude 1.5mm)
Lifespan	Electrical	300,000 cycles(15cycles/min.) DC12V 0.1A DC3V 50μA
	Mechanical	300,000 cycles(30cycles/min.)
Protective structure		IEC IP67(without terminals)
Operation environmental temperature		-40℃~+85℃ (under 60%RH,no icing, no condensation)
Operation environmental humidity		Under 95%RH (+5℃~+35℃)

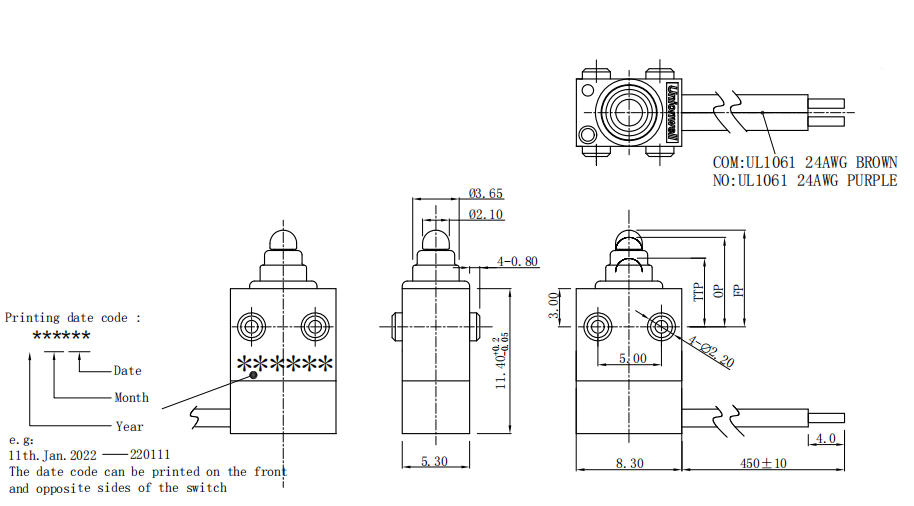

Drawing

Application

As a compact clamp subminiature micro switch, this product is particularly suitable for use inside charging guns of new energy vehicles for detecting insertion/removal status and ensuring safe control of the charging process. Its sealed design achieves an IP67 waterproof rating, allowing it to operate stably in outdoor rain, humidity, or frequent insertion/removal environments.

This series of switches boasts a mechanical life of approximately 300,000 cycles, high durability, and stable trigger sensitivity, effectively improving the reliability and safety performance of charging guns during long-term use, making it an ideal choice for automotive charging interface control systems.
