Unionwell Dual-circuit Car Sealed Subminiature Micro Switch G307A Series

Model Number:G307A-150P00AAU
Max. Current:50mA
Max. Voltage:18V
Operating Temperature:-40~+85℃
Protection Level:IP67
IP level:IP67
Rating:50mA 18VDC
Electrical life:300,000cycles
Mechanical life:500,000cycles
Lever type:W/O lever
Operating force:150gf max
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:PCB terminals
Color:Black
Application:Automotive, Automation equipment
minimum order :
1000 pieces
Quantity :
Contact Now

Product Description

The Dual-circuit Car Sealed Subminiature Micro Switch G307A Series is a subminiature micro switch specifically designed for automotive handbrakes. Its dual-circuit structure enables precise handbrake position detection. Its compact size makes it suitable for confined installation spaces while maintaining stable operation.

As an automotive micro switch, it provides reliable signal feedback within the handbrake mechanism, allowing the vehicle to accurately identify the handbrake's engagement or disengagement. The product boasts an operating temperature range of -40℃ to +85℃, a mechanical lifespan of 500,000 cycles, and an electrical lifespan of 300,000 cycles, maintaining consistent performance even under prolonged and frequent operation.

This product is also a sealed micro switch with an IP67 waterproof and dustproof rating, ensuring stable operation in environments with high humidity, rain, and mud. Designed meticulously by the micro switch manufacturer, this product guarantees a balance of reliability, safety, and durability.

Feature

◆ Meets dual-circuit synchronization time requirements <15ms, independently developed, instantaneous clamp sliding structure;
◆ Small product size, compact structure, high reliability, long lifespan;
◆ This series is mainly used in the automotive industry, electronic equipment, and other low-current load industries;
◆ This series has two product dimensions, and two mounting methods: PCB terminal DIP and surface mount terminal SMT;

Parameter

Allows linear operating speed 1~500mm/s
Allows operating frequency 120 cycles/min.
Insulation resistance (based on DC 500V insulation resistance)≥100MΩ
Contact resistance (initial value)Terminal type ≤75mΩ
Withstand voltagebetween the same polarity terminals AC500V, 50/60Hz, 1Min.
between each terminal and non-energized metal parts AC500V, 50/60Hz, 1min.
Vibrationmalfunction10-55Hz ,Double amplitude 1.5mm
LifespanElectrical
300,000 cycles(20cycles/min.)
50mA 18VDC 50μA 5VDC
Mechanical300,000 cycles(30cycels/min.)
Protective structure IEC IP67(without terminals)
Operating Environmental Temperature-40℃~+85℃ under 60%RH (no icing, no condensation)
Operating Environmental Humidityunder 95%RH (+5℃~+35℃)

Drawing

subminiature micro switch drawing

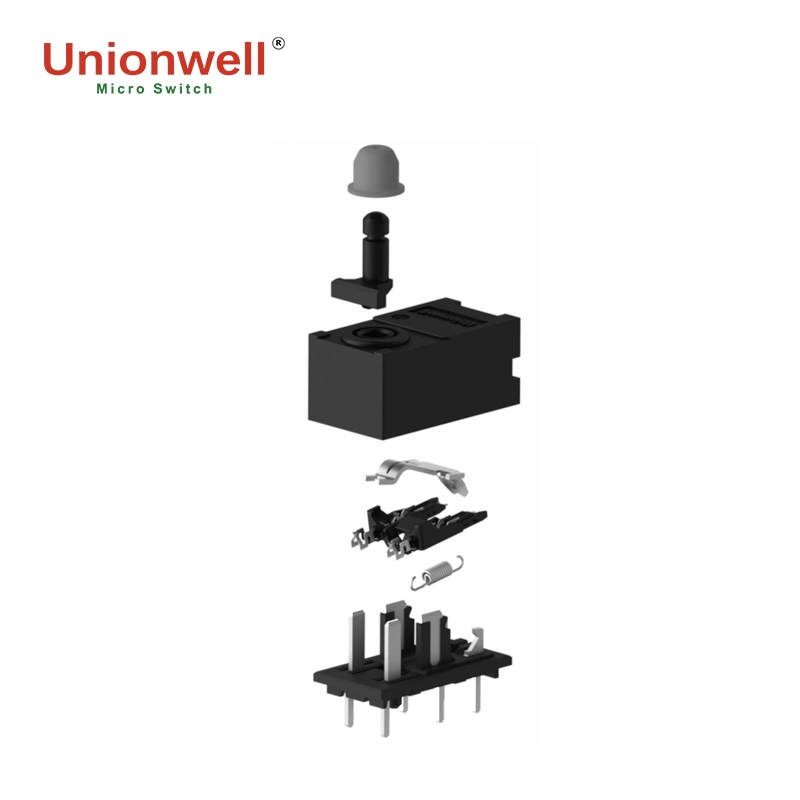

Deatails View

subminiature micro switch g307a details view

Application

As a subminiature micro switch designed for automotive handbrake systems, this product achieves more stable handbrake position detection and signal feedback through a dual-circuit structure. Its sealed structure meets IP67 waterproof and dustproof standards, allowing for continuous and reliable operation in automotive chassis environments with mud, vibration, and significant temperature variations.

This series of switches providing stable support for handbrake mechanisms subjected to frequent, long-term operation, effectively improving overall vehicle safety. Its design ensures consistent actuation force and contact performance even under extreme humidity and ambient temperatures, making it ideal for various passenger and commercial vehicle platforms.
