Model No: G5T16-R2P200-T285
Unionwell ice maker micro switch t85 5e4 16a
Model Number:G5T16-R2P200-T285
Max. Current:16A
Max. Voltage:250VAC
Operating Temperature:-25°C~+125°C
Max operating force:200gf
Vibratioon durability:10~55HZ,1.5mm double amplitude
Electrical service Life：≥50,000cycles/100,000cycles(Depend on part No.)
Mechanical service Life: ≥10,000,000cycles/1,000,000cycles
Product Name:Basic Micro Switch
Max. Current:16A
Max. Voltage:250VAC
Operating Temperature:-25°C~+125°C
Max operating force:200gf
Vibratioon durability:10~55HZ,1.5mm double amplitude
Electrical service Life：≥50,000cycles/100,000cycles(Depend on part No.)
Mechanical service Life: ≥10,000,000cycles/1,000,000cycles
Product Name:Basic Micro Switch
minimum order :
1000 pieces
Quantity :
Product Description
As a professional ice maker micro switch, it features an Electrical life of 100,000 cycles and a Mechanical life of 1,000,000 cycles, ensuring excellent durability under repeated start-stop cycles, temperature fluctuations, and long-term operation. The switch monitors the movement of internal mechanical mechanisms in the ice maker, such as ice tray rotation, ice release, or mechanical displacement detection, achieving precise ice-making process control through stable signal input.
Furthermore, this product is also a reliable home appliance micro switch manufactured by a micro switch manufacturer. Its high-temperature resistance, long lifespan, and high stability make it suitable for use in thermal control components, button triggering mechanisms, or internal mechanical motion detection modules. Whether used in areas with frequent temperature changes or in high-frequency button-triggered displays, this microswitch maintains accurate feedback and long-term performance, meeting the stringent requirements of modern home appliances for high reliability, small size, and long lifespan.
The Unionwell ice maker micro switch T85 5E4 16A is a high-performance basic micro switch renowned for its compact size and fast response. It boasts an ultra-wide operating temperature range of -25℃ to +150℃, ensuring stable operation even in refrigeration environments. Its precise triggering design allows for rapid conversion between mechanical and electrical signals, making it suitable for frequent, long-term use.
As a professional ice maker micro switch, it features an Electrical life of 100,000 cycles and a Mechanical life of 1,000,000 cycles, ensuring excellent durability under repeated start-stop cycles, temperature fluctuations, and long-term operation. The switch monitors the movement of internal mechanical mechanisms in the ice maker, such as ice tray rotation, ice release, or mechanical displacement detection, achieving precise ice-making process control through stable signal input.
Furthermore, this product is also a reliable home appliance micro switch manufactured by a micro switch manufacturer. Its high-temperature resistance, long lifespan, and high stability make it suitable for use in thermal control components, button triggering mechanisms, or internal mechanical motion detection modules. Whether used in areas with frequent temperature changes or in high-frequency button-triggered displays, this microswitch maintains accurate feedback and long-term performance, meeting the stringent requirements of modern home appliances for high reliability, small size, and long lifespan.
Feature
◆Compact structure with a small contact gap,Fast action, high sensitivity, and small stroke.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.

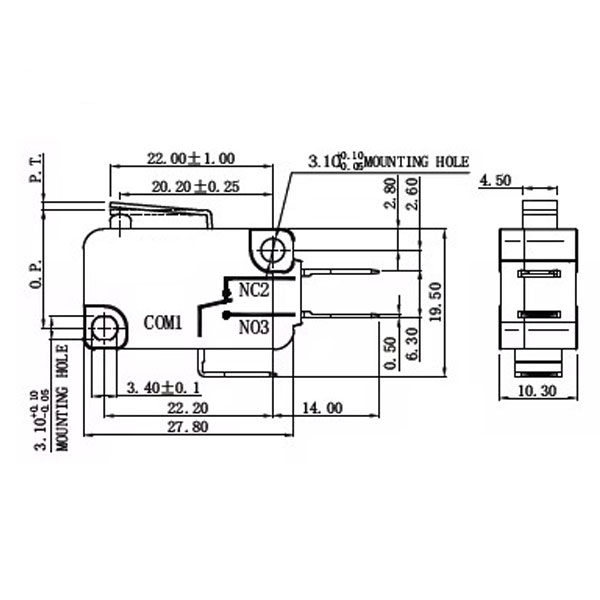

Drawing
Parameter
| Operating speed | 0.1mm-1m/s (related with actuator forms) | |
| Operating Frequency | Electrical | 60 cycles/minute |
| Mechanical | 15cycles/minute | |
| Contact Resistance(Initiative) | 100mΩMax | |
| Insulation Resistance (at 500VDC) | 100M Ω Min | |
| Vibratioon durability | 10~55HZ,1.5mm double amplitude | |
| Test Voltage | between each terminals of the same polarity | AC 1000V,50/60HZ, 1 min |
| between current-carrying metal part and ground. and between each terminal and non-current carrying metal parts | AC 1500V, 50 /60 HZ, 1min | |
| Service Life | Electrical | ≥50,000cycles/100,000cycles(Depend on part No.) |
| Mechanical | ≥10,000,000cycles/100,000cycles | |
Application
In an ice maker, it can detect the positioning status of ice-making components, such as controlling whether the ice container is in place, sensing the movement of transmission components, and monitoring the ice-making cycle, thereby ensuring that the ice-making process proceeds smoothly according to the predetermined procedure. Through precise trigger signals, this switch helps control the start and stop of the equipment at different stages, avoiding malfunctions or efficiency reductions caused by misoperation.
Due to its excellent mechanical properties and durability, it maintains stable triggering during repeated operations, helping the ice maker maintain reliable operating performance over long-term use, extending its lifespan and ice-making efficiency.
As a compact and highly responsive basic micro switch, it is primarily used for the internal operation control of ice makers.
In an ice maker, it can detect the positioning status of ice-making components, such as controlling whether the ice container is in place, sensing the movement of transmission components, and monitoring the ice-making cycle, thereby ensuring that the ice-making process proceeds smoothly according to the predetermined procedure. Through precise trigger signals, this switch helps control the start and stop of the equipment at different stages, avoiding malfunctions or efficiency reductions caused by misoperation.
Due to its excellent mechanical properties and durability, it maintains stable triggering during repeated operations, helping the ice maker maintain reliable operating performance over long-term use, extending its lifespan and ice-making efficiency.
