Model No: G5T26-C1P300-T418U

Water Pressure Detection Basic Micro Switch G5T26 Series

Place of Origin:Guangdong Province, China
Brand Name:Unionwell
Model Number:G5T26-C1P300-T418U
Max. Current:26A
Max. Voltage:250VAC
Operating Temperature:-25℃~+125℃
Product name:Basic Micro Switch for Water Heater Application
Electrical life:100,000cycles
Mechanical life:1,000,000cycles
Lever type:various Lever
Function/circuit:SPDT (or SPST-NO, NC for option)
Operating force:300gf max w/ lever (light or heavy for option)
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:Wiring Terminal

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The G5T26 Series Water Pressure Detection Basic Micro Switch is a basic micro switch for water pressure detection in water heaters. It provides stable feedback on changes in water flow and pressure, ensuring normal startup and operation of the water heater. Rated at 26A 250VAC, with an electrical operating frequency of 15 cycles/min and a mechanical operating frequency of 30 cycles/min, it is suitable for water pressure control systems. It boasts a mechanical life of at least 1,000,000 cycles and an electrical life of 100,000 cycles, ensuring long-term stable operation.

As a home appliance micro switch, this product can be customized with terminal types, operating handles, and other structural designs to easily adapt to different water heater design requirements. Its compact and reliable overall structure, meticulously designed by the micro switch supplier, demonstrates excellent durability, stability, and application flexibility.

Feature

◆Compact structure with a small contact gap,Fast action, high sensitivity, and small stroke.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.

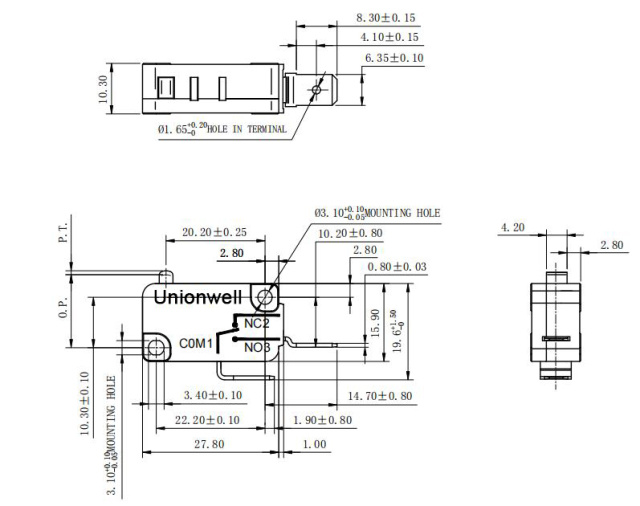

Drawing

Parameter

Operating speed		0.1mm-1m/s (related with actuator forms)
Operating Frequency	Electrical	60 cycles/minute
	Mechanical	15cycles/minute
Contact Resistance(Initiative)		≥100mΩ （500VDC）
Insulation Resistance (at 500VDC)		≤100M Ω Min
Vibratioon durability		10~55HZ,1.5mm double amplitude
Test Voltage	between each terminals of the same polarity	AC 1000V,50/60HZ, 1 min
	between current-carrying metal part and ground. and between each terminal and non-current carrying metal parts	AC 1500V, 50 /60 HZ, 1min
Service Life	Electrical	≥50,000cycles/100,000cycles(Depend on part No.)
	Mechanical	≥10,000,000cycles/1,000,000cycles

Application

The Water Pressure Detection Basic Micro Switch G5T26 Series is primarily used to monitor changes in water pressure and provide precise start/stop signals to the control system. When the water heater reaches the set pressure, the switch quickly activates, initiating the heating process. In case of abnormal water pressure or insufficient water supply, it provides timely feedback, enhancing overall operational safety.
