Model No: G9A05-200S00A

Charging Pile Positioning Detection Subminiature Micro Switch G9A Serie

Model Number:G9A series
Max. Current:5A
Max. Voltage:250VAC
Protection Level:IP67
Rating:5(2)A 125/250VAC, 5A 30VDC
Operating Frequency Electrical:10-30 cycles/minute
Operating Frequency Mechanical:120 cycles/minute
Operating Force:200gf Max
Contact Resistance(Initiative):≤200mΩ with wire type
Insulation Resistance (at 500VDC):≥100MΩ
Voltage Resistance:AC 500V(50/60HZ) 1 Minute.
Storage Temperature:-40°C~+85°C
Storage Humidity:95%RH Max
Electrical life:50,000cycles
Mechanical Life:200,000Cycles(IP67) 2,000,000Cycles(IP40)

Quantity :

Contact Now

Product Description

The G9A Series Charging Pile Positioning Detection Subminiature Micro Switch is a subminiature micro switch specifically designed for AC charging piles. It is primarily used for detecting and confirming the position of the charging gun after insertion. This product is suitable for environments ranging from -40℃ to +85℃, with an electrical operation frequency of 10-30 times/min and a mechanical operation frequency of up to 120 times/min. It boasts a mechanical lifespan of 200,000 cycles, meeting the long-term stable operation requirements of charging equipment.

As an automotive micro switch, the G9A Series features a waterproof and dustproof (IP67) design, effectively resisting the effects of dust, moisture, and rain in outdoor charging environments, enhancing the device's durability and stability. Its compact structure and sensitive response, combined with a meticulously designed overall solution by a micro switch manufacturer, demonstrate excellent performance in reliability, environmental adaptability, and lifespan.

Feature

◆ Waterproof and dustproof (IP67)
◆ Compact size and structure
◆ Long life and high reliability
◆ Equipped with various types of operating handles
◆ Complete range of terminals
◆ Extra-long stroke of at least 2.2mm
◆ Widely used in various automotive control, home appliance and industrial control fields

Parameter

Rating	P1	0.1A 125/250VAC, 0.1A 30VDC
Rating	05	5(2)A 125/250VAC, 5A 30VDC
Operating Frequency	Electrical	10~30 cycles/min.
Operating Frequency	Mechanical	120 cycles/min.
Contact Resistance (Initial)	terminal type	≤ 100mΩ
Contact Resistance (Initial)	wire type	≤ 200mΩ(500mm wire length)
Insulation Resistance		≥ 100MΩ(DC500V insulation resistance meter)
Withstand voltage	between the same terminals	AC 500V, 50/60Hz, 1min.
Withstand voltage	between terminals and non-energized metal parts	AC 1,000V, 50/60Hz, 1min.
Lifespan	Electrical	50,000 cycles
Lifespan	Mechanical	200,000 cycles
Operating Environment Temperature		-40℃~+85℃
Operating Environment Humidity		95% RH Max

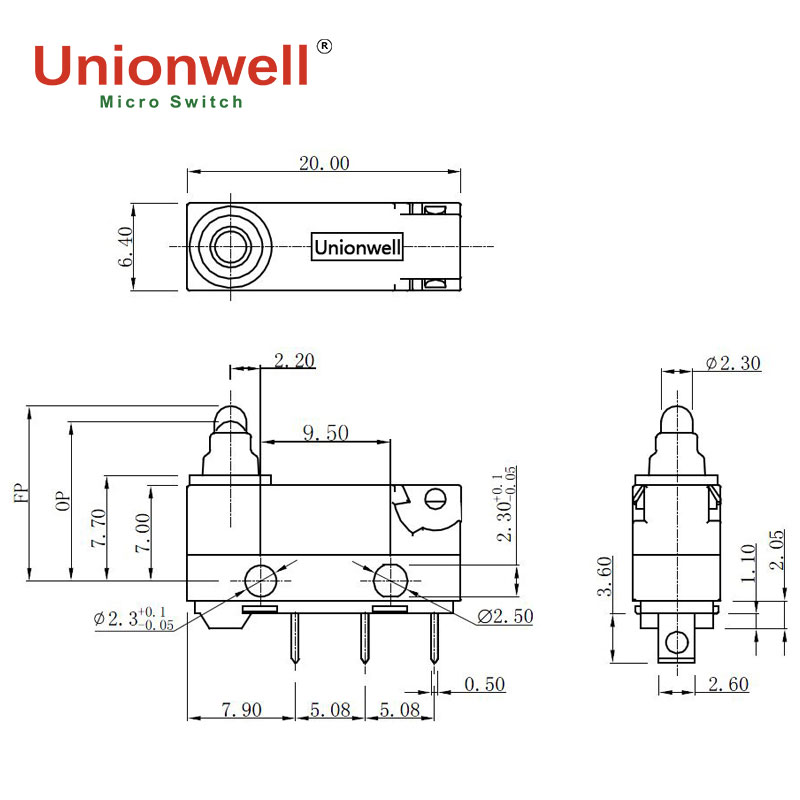

Drawing

Application

The G9A Series Charging Pile Positioning Detection Subminiature Micro Switch is primarily used for position detection in AC charging piles. When the charging gun is inserted into the designated position or the locking component completes its action, the switch quickly outputs an accurate feedback signal to help the control system confirm the equipment status, thereby ensuring a safe and smooth charging process.

The G9A Series features a compact design, excellent mechanical reliability, and stable contact performance. Its IP67 waterproof and dustproof rating effectively protects the internal structure from rain, dust, and humid environments. It is widely used in AC charging pile systems for new energy vehicles, providing a safe and reliable solution for the equipment.
