Model No: G605-100S04C

Juicer Lid Miniature Micro Switch G605 Series

Model Number:G605-100S04C
Max. Current:0.1A~5A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+125℃
Product name:5a 1/8hp 25t125 miniature micro switch
Electrical life:10,000 ~ 50,000cycles (Depend on Part No.)
Mechanical life:1,000,000cycles
Operating force:100gf max w.o lever
Function:SPDT
Lever type:Straight Lever
Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Color:Black
Contact Resistance:100mΩ Max

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The Juicer Lid Miniature Micro Switch G605 Series is a product developed by a micro switch manufacturer for the safety testing of juicers. It primarily detects whether the juicer cup is correctly positioned and locked onto the base of the main unit. This miniature micro switch only triggers a signal when the cup is properly installed, ensuring safe device startup. The product is suitable for operating environments from -25℃ to +125℃, with an electrical operating frequency of 10~30 cycles/min and a mechanical life of 1,000,000 cycles, meeting the requirements for long-term stable use.

The G605 Series is compact and highly responsive, easily integrating into the limited installation space within a juicer. Its precise triggering performance ensures accurate cup identification, avoiding the risk of accidental start-up due to improper installation. As a home appliance micro switch, the G605 Series boasts excellent load capacity, with a terminal load of up to 10(2)A 1/4HP, adaptable to the control requirements of juicers. Its compact structure, sensitive response, and excellent durability, performance, and application adaptability are all noteworthy.

Feature

◆ Small and compact size
◆ With global safety certification
◆ Long life and high reliability
◆ Terminal load capacity up to 10(2)A1/4HP
◆ Complete terminal operating handles
◆ Widely used in automotive control, home appliance control, industrial control and other fields

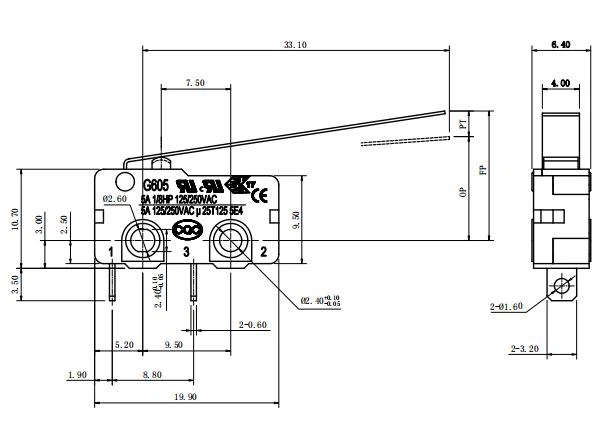

Drawing

Parameter

Rating	P1	ENEC/CQC: 0.1A 125/250VAC 0.1A 48VDC μ 25T125 5E4 UL: 0.1A 125/250VAC 0.1A 48VDC Contacts optional gold plating
	05	ENEC/CQC: 5(3)A 125/250VAC 5A 125/250VAC 5A 30VDC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC 5A 30VDC
	051/052	ENEC/CQC: 5A 125/250VAC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC
	10/101	ENEC/CQC: 10(2)A 125/250VAC μ 25T125 1E4 UL: 10.1A 125/250VAC 1/4HP 125/250VAC 10A 30VDC Note: Only applicable for operating forces above 250gf
	12	ENEC/CQC: 12(6)A 125/250VAC μ 40T125 1E4 UL: 12A 125/250VAC Note: Only applicable for operating forces 350gf
Operating frequency	electrical	10~30 cycles/min
Operating frequency	mechanical	120 cycles/min
Initial contact resistance		100mΩ Max.
Insulation resistance		100MΩ Min.(at 500VDC)
Dielectric strength	between terminal	1,000VAC 50~60Hz for 1 Min.
Dielectric strength	Between terminal and housing	1,500VAC 50~60Hz for 1 Min.
Operating environment temperature		-25℃~+125℃
Operating environment humidity		85%RH Max
Lifespan	electrical	10,000~50,000(Depend on part NO.)
Lifespan	mechanical	1,000,000 cycles

Application

As a miniature micro switch used in the safety control system of juicers, the G605 series is primarily designed to detect the position of the container . When the user rotates the container to the designated position and locks it in place, the switch outputs a confirmation signal, allowing the appliance to start. If the container is not properly installed, the system will not operate.

With its excellent detection accuracy, stable signal output, and compact yet durable structural design, the G605 Series miniature micro switch has become an essential component in juicers, providing users with a safer and more convenient operating experience.
