Model No: G1003-090P07A

subminiature micro switch for robot vacuum Unionwell

Model Number: G10 series
Max. Current: 0.1A~3A
Max. Voltage: 125/250VAC,48VDC
Operating Temperature: 40℃ ~+85℃
Electrical life: 10,000 ~ 50,000cycles (Depend on Part No.)
Mechanical life: 1,000,000cycles
Operating force: 150gf max without lever
Terminal: Various terminals
Function: SPDT
Lever type: various Lever

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The G10 Series Subminiature Micro Switch is a subminiature micro switch specifically designed for robotic vacuum cleaners. It provides collision detection and position feedback, helping the device achieve precise navigation and stable operation. The product is suitable for operating environments from -40℃ to +85℃, with a mechanical operation frequency of up to 120 times/minute and a mechanical lifespan of up to 1,000,000 cycles, meeting the long-term high-frequency operation requirements of robotic vacuum cleaners.

As a reliable home appliance micro switch, this product features inter-terminal dielectric strength capable of withstanding 1 minute of operation in a 600VAC, 50~60Hz environment, ensuring a safer and more stable electrical connection. With its compact structure and sensitive response, this product, meticulously developed by a micro switch manufacturer, excels in durability, reliability, and application adaptability.

Feature

◆ Small size and compact structure
◆ Long lifespan and high reliability
◆ Full range of terminal types
◆ Equipped with various types of operating handles
◆ Widely used in home appliances and industrial control fields

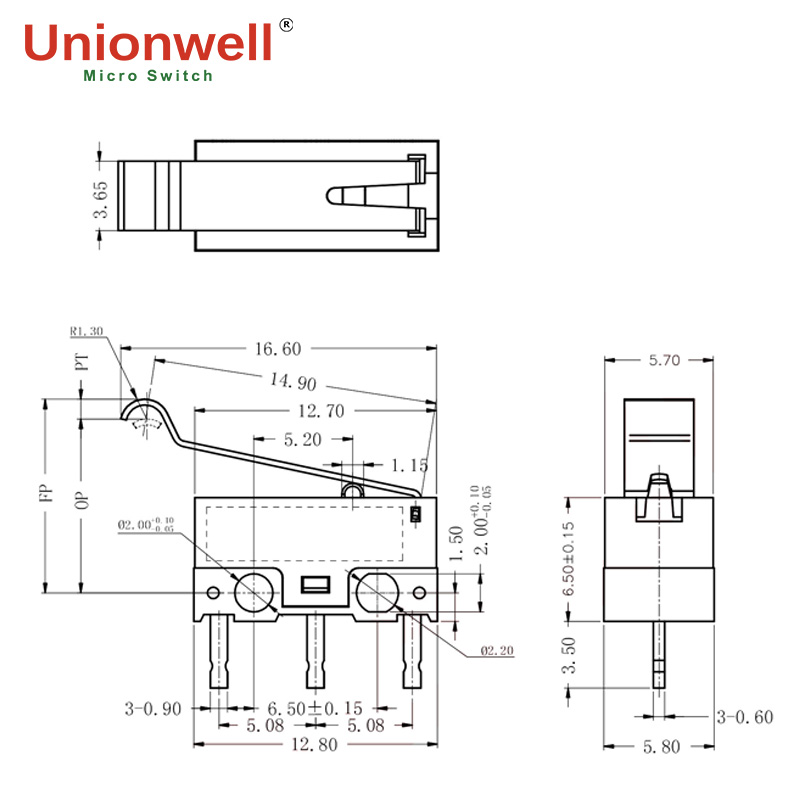

Drawing

Parameter

Rating	P1	ENEC/CQC: 0.1A 48VDC/125VAC
		UL/cUL: 0.1A 48VDC/125VAC
	3	ENEC/CQC: 1A/3A 125VAC
		UL/cUL: 1A/3A 125VAC
Operating Frequency	Electrical	10~30 cycles/min.
	Mechanical	120 cycles/min.
Contact resistance (initial value)		100mΩ Max.(depend on types NO.)
Insulation resistance		100MΩ Min.(at 500VDC)
Dielectric strength	Between Terminals	600VAC 50~60Hz for 1 Min.
	Between terminal and housing	1000VAC 50~60Hz for 1 Min.
Operating environment temperature		-40℃~+85℃
Operating environment humidity		85%RH Max.
Lifespan	Electrical	10,000/50,000cycles(depend on types NO.)
	Mechanical	1,000,000cycles
Unit Weight		about 0.5g(Straight PCB without handle type)

Application

The Subminiature Micro Switch for Robot Vacuum G10 Series is a product specifically designed for robotic vacuum cleaners, primarily used for internal status detection and motion control. It can be applied to critical areas such as collision detection mechanisms, start/stop control, and lid closure confirmation, providing accurate and timely trigger signals to the control system, helping the robotic vacuum cleaner achieve more intelligent and stable operation.

The G10 Series features a miniaturized design, allowing for easy integration into the compact interiors of robots. The switch boasts sensitive triggering performance and stable electrical output, providing continuous and reliable feedback, which helps improve navigation accuracy and operational efficiency. This product has been widely used in various intelligent robotic vacuum cleaners, providing reliable support for accurate detection, intelligent control, and long-term stable operation.
