Model No: G9P1-200E01W1-G250

Ice Maker Compressor Sealed Mini Micro Switch G9 Series

Place of Origin:Guangdong, China
Brand Name:Unionwell
Model Number:G9P1-200E01W1-G250
Max. Current:0.1A
Max. Voltage:250VAC
Operating Temperature:-25℃~+120℃
Protection Level:IP67
Terminal Type:Wires leads from side (500mm)
Operating Force:200gf max w/o lever
Lever Type:Straight lever
Circuit Code:SPDT SPST-NC SPST-NO
Mechanical Life:500,000cycles
Electrical Life:100,000cycles
Certification:UL CE CQC
Application:Home Appliance
Rating:0.1A 125/250VAC 48VDC 5E4

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The Ice Maker Compressor Start/Stop Sealed Mini Micro Switch G9 Series is a sealed mini micro switch developed for ice maker control systems. It's used for compressor start/stop control, ensuring stable operation of the refrigeration cycle. The product is suitable for environments ranging from -25℃ to +120℃, with an electrical operating frequency of 10-30 times/min and a mechanical operating frequency of up to 120 times/min. It also boasts a 500,000-cycle mechanical lifespan, meeting the needs of long-term continuous operation of ice-making equipment.

As a waterproof micro switch, its compact structure allows it to adapt to complex appliance operating environments. The product comes with various types of operating handles for easy matching with different ice makers, improving installation flexibility and control precision. The overall solution, meticulously designed by a micro switch factory, excels in durability, stability, and application adaptability, making it a crucial component for compressor start/stop control.

Feature

◆ Waterproof and dustproof (IP67) design
◆ Small size and compact structure
◆ Long life and high reliability
◆ Complete terminal block selection
◆ Equipped with various operating handles
◆ Widely used in automotive, home appliance, and industrial control applications

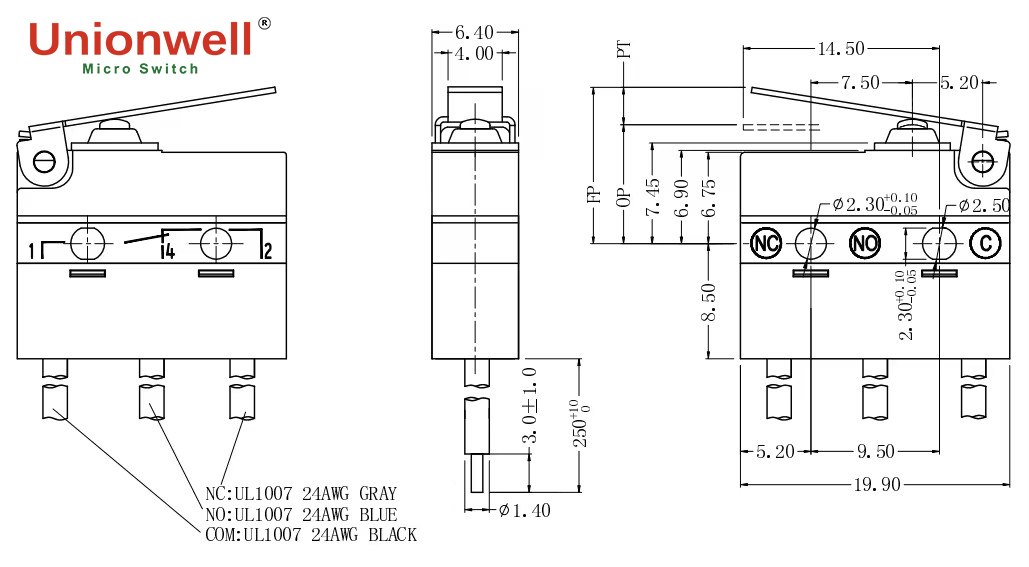

Drawing

Parameter

Rating	P1	ENEC: 0.1A 125/250V 48VDC 5E4 Gold Plated Contact Optional
	05	UL:5A 125/250 VAC ENEC:6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ 25T120
Operating Frequency	Electrical	10~30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resitance		100MΩ Max
Insulation Resistance ( at 500VDC)		100MΩ Min
Dielectric Strength		AC 1,000V RMS (50~60Hz)
Storage Temperature		-40°C~ +120°C
Storage Humidity		85% RH max
Service Life	Electrical	10,000~100,000cycles (Depend on part number)
	Mechanical	500,000cycles

Application

The Ice Maker Compressor Sealed Mini Micro Switch G9 Series is a sealed mini micro switch specifically designed for ice maker control systems, primarily used for compressor start-up and stop control. When the ice maker reaches its preset operating state, the switch accurately transmits control signals, helping the compressor start or stop operation promptly, thus ensuring stable refrigeration cycle operation and improving ice-making efficiency and equipment reliability.

It features an IP67 waterproof and dustproof rating, maintaining stable performance and reliable electrical connections even under prolonged low-temperature and high-humidity environments. It is suitable for use in commercial and residential ice-making equipment, providing a precise and reliable start-stop control solution for compressor systems.
