Model No: G9110-250S02D1
Dustproof Micro Switch for Refrigerator Compartment Lighting Control
Model Number:G9110-250S02D1
Max. Current:10A 1/4HP
Max. Voltage:125/250VAC
Operating Temperature:-40℃~+125℃
IP level:IP40
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:long handle lever
Terminal Type:Quick connect terminals
Circuit Code:SPDT
Max Operating Force:Max. 250gf at the pin plunger
Electrical life:Over 100,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Max. Current:10A 1/4HP
Max. Voltage:125/250VAC
Operating Temperature:-40℃~+125℃
IP level:IP40
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:long handle lever
Terminal Type:Quick connect terminals
Circuit Code:SPDT
Max Operating Force:Max. 250gf at the pin plunger
Electrical life:Over 100,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
minimum order :
1000 pieces
Quantity :
Product Description
The Dustproof Mini Micro Switch for Refrigerator Compartment Lighting Switch Control G91 Series is a product specifically designed for controlling the lighting in the refrigerator compartment. It primarily detects the open and closed status of the refrigerator door, thereby automatically turning the refrigerator compartment light on or off. This dustproof micro switch is suitable for operating environments from -40℃ to +125℃, has a mechanical operating frequency of up to 120 times/minute, and boasts a mechanical lifespan of 1,000,000 cycles, meeting the needs of long-term, frequent refrigerator use.
As a reliable home appliance micro switch, this product features AC 1,000V RMS (50~60Hz) inter-terminal dielectric strength, contributing to improved electrical safety and operational stability. Its compact structure and sensitive response make it suitable for installation in the limited space inside the refrigerator. The overall solution was meticulously designed by the micro switch supplier, balancing durability and practical application requirements.
The Dustproof Mini Micro Switch for Refrigerator Compartment Lighting Switch Control G91 Series is a product specifically designed for controlling the lighting in the refrigerator compartment. It primarily detects the open and closed status of the refrigerator door, thereby automatically turning the refrigerator compartment light on or off. This dustproof micro switch is suitable for operating environments from -40℃ to +125℃, has a mechanical operating frequency of up to 120 times/minute, and boasts a mechanical lifespan of 1,000,000 cycles, meeting the needs of long-term, frequent refrigerator use.
As a reliable home appliance micro switch, this product features AC 1,000V RMS (50~60Hz) inter-terminal dielectric strength, contributing to improved electrical safety and operational stability. Its compact structure and sensitive response make it suitable for installation in the limited space inside the refrigerator. The overall solution was meticulously designed by the micro switch supplier, balancing durability and practical application requirements.
Feature
◆ Small size and compact structure
◆ Long life and high reliability
◆ Complete terminal block selection
◆ Equipped with various operating handles
◆ Widely used in home appliance, and industrial control applications
◆ Small size and compact structure
◆ Long life and high reliability
◆ Complete terminal block selection
◆ Equipped with various operating handles
◆ Widely used in home appliance, and industrial control applications

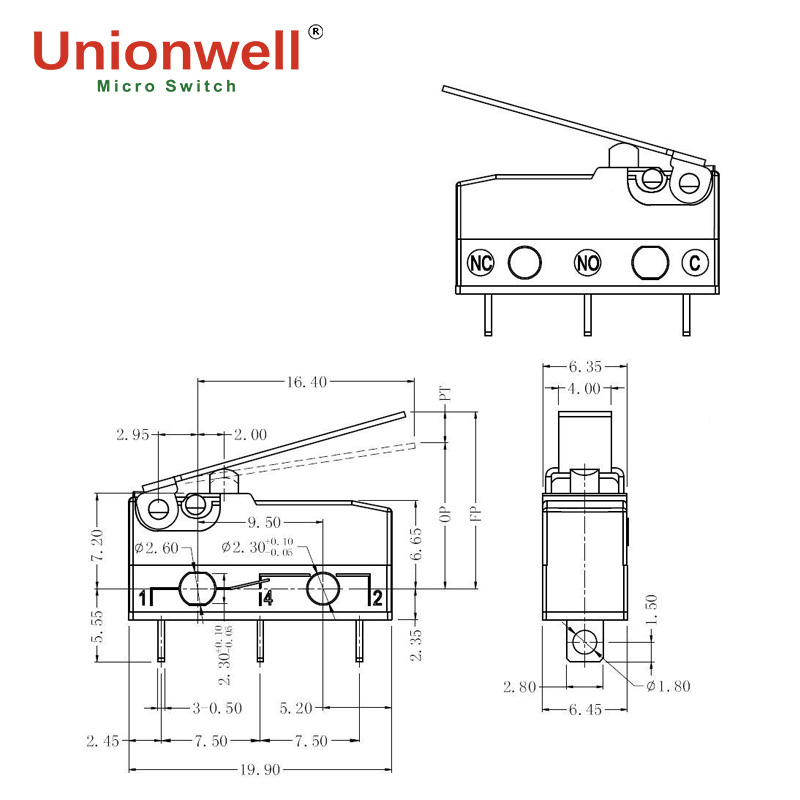

Drawing
Parameter
| Rating | P1 | ENEC/UL: 0.1A 125/250V 48VDC Gold plating is optional for the contacts. |
| 05 | ENEC: 5A 125/250VAC; 5A 1/8HP, 125/250VAC | |
| 10 | ENEC: 10(1.5A) 125/250VAC; UL: 10A 1/4HP 125/250VAC | |
| Operating Frequency | Electrical | 10~30 cycles/min |
| Mechanical | 120 cycles/min | |
| Initial contact resistance | 100mΩ Max | |
| Insulation resistance | 100MΩ Min | |
| dielectric strength | AC 1,000V RMS(50~60Hz) | |
| Operating environment temperature | -40℃~+125℃ or -40℃~+85℃ | |
| Operating environment humidity | 85%RH Max | |
| Lifespan | Electrical | 10,000~100,000 cycles(depend on Specific models) |
| Mechanical | Min 1,000,000 cycles | |
Application
The G91 Series dustproof micro switch features a compact design, excellent trigger consistency, and durability. It can withstand frequent opening and closing of the refrigerator door and has become an important component in refrigerator compartment lighting control systems, providing an efficient and reliable control solution for smart home appliances.
The G91 Series Dustproof Micro Switch for Refrigerator Compartment Lighting Control is a product specifically designed for refrigerator compartment lighting control systems. It primarily detects the opening and closing status of the refrigerator door and controls the automatic on/off of the internal lighting. When the user opens the refrigerator door, the switch responds quickly and outputs a signal to activate the lighting system; when the door is closed, the lights turn off, effectively reducing energy consumption.
The G91 Series dustproof micro switch features a compact design, excellent trigger consistency, and durability. It can withstand frequent opening and closing of the refrigerator door and has become an important component in refrigerator compartment lighting control systems, providing an efficient and reliable control solution for smart home appliances.
