Model No: G19 Series
Waterproof Autommotive Seat Adjustment Switch G19 Series
Model Number:G19 Series
Max. Current:15A 14VDC/ 8A 12VDC
Operating Temperature:-40℃~+85℃
Protection Level:IP67
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Circuit Code:SPDT, SPST-NO, SPST-NC
Electrical life:Over 30,000 cycles
Mechanical Life:Over 50,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Color:Black and red
Max. Current:15A 14VDC/ 8A 12VDC
Operating Temperature:-40℃~+85℃
Protection Level:IP67
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Circuit Code:SPDT, SPST-NO, SPST-NC
Electrical life:Over 30,000 cycles
Mechanical Life:Over 50,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Color:Black and red
minimum order :
1000 pieces
Quantity :
Product Description
The G19 Series Waterproof Automotive Seat Adjustment Switch is a waterproof car seat adjustment switch specifically designed for in-vehicle seat adjustment systems. It allows for precise multi-directional adjustments, providing passengers with a more comfortable ergonomic seating posture while driving. This compact and highly sensitive switch controls the seat's fore-aft, heel-and-groove position, and backrest angle to meet various seat adjustment needs in different scenarios. It is suitable for various types of passenger and commercial vehicle seat systems.
As an IP67 car seat adjustment switch, it boasts an IP67 waterproof and dustproof rating, effectively resisting external intrusions such as moisture and dust. It is suitable for diverse automotive interior environments, including high humidity or occasional liquid contact, maintaining stable performance. Its wide operating temperature range of -40℃ to +85℃ ensures reliable operation even in extremely cold or hot environments. With a mechanical life of up to 50,000 cycles and a load life of 30,000 cycles at 15A 14VDC, it demonstrates excellent durability. With an operating frequency of 10 cycles/min, this switch meets the demands of frequent, long-term use, ensuring a safe and stable response from the seat adjustment system.
As a high-performance seat adjustment switch designed by a micro switch manufacturer, the G19 series features an advanced structural design, enabling rapid adjustment response and clear tactile feedback. It can be integrated into various seat positions and control panels, supporting precise control of the motor drive for an electrified seat adjustment experience, further enhancing overall vehicle comfort. With its reliable electrical performance and long mechanical lifespan, the G19 Series plays a crucial role in automotive seat adjustment systems, ensuring the comfort and safety of drivers and passengers, and demonstrating stable and reliable performance.
Feature
◆ Sealed design, IP67 protection rating, excellent environmental resistance
◆ Multiple operating lever heights available to suit different vehicle models
◆ Compact structure, enabling two-way or four-way switching
◆ Uses high-performance spring material, high switching sensitivity, and long service life
◆ Multiple operating lever heights available to suit different vehicle models
◆ Compact structure, enabling two-way or four-way switching
◆ Uses high-performance spring material, high switching sensitivity, and long service life

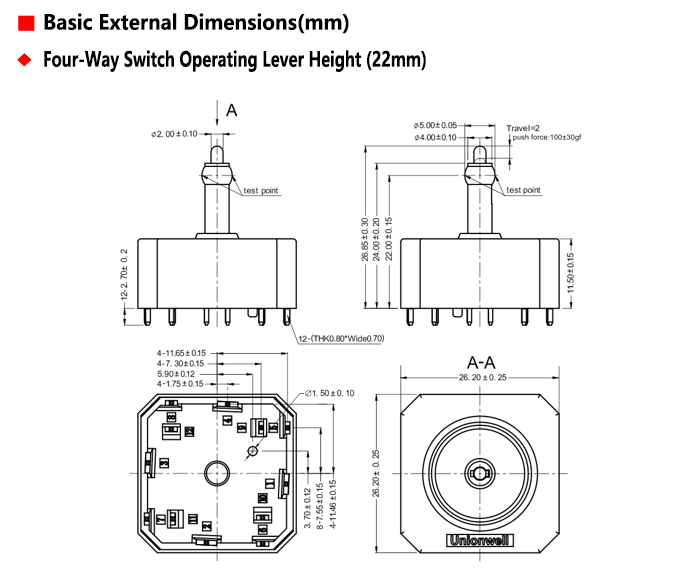

Drawing
Parameter
| Rating | 15A 14VDC/8A 12VDC | |
| Permissible Operating Frequency | 10 cycles/min | |
| Initial Contact Resistance | 20mΩ Max | |
| Insulation Resistance | 100MΩ Min | |
| Withstand Voltage | Between all mutually insulated terminals | AC500V (50~60Hz), Leakage Current: 10ms, Duration: 60±5 seconds |
| Between terminals and housing | AC1000V (50~60Hz),Leakage Current: 10ms, Duration: 60±5 seconds | |
| Lifespan | Load Life | 15A 14VDC 30,000 cycles |
| Mechanical Life | 50,000 cycles | |
| Protection Rating | IP67 (without terminal parts) | |
| Operating Environment Temperature | -40℃~+85℃ | |
| Operating Environment Humidity | Under 95%RH (+5~+35℃) | |

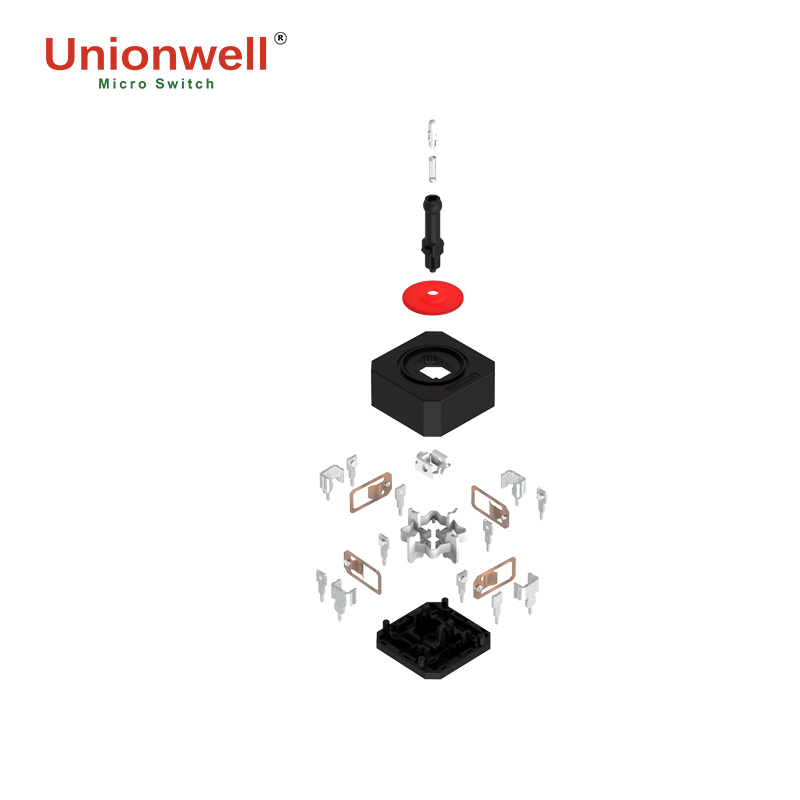

Details View
Here are detailed images of three different types of switches: a two-way center adjustment switch, a two-way left-side adjustment switch, and a four-way center switch.
Application
As a functional switch specifically designed for automotive seat adjustment systems, it primarily controls seat fore-and-aft movement, height adjustment, and backrest angle adjustment. This device allows drivers to achieve more precise and ergonomic seat position adjustments, enhancing driving comfort and the driving experience. During daily driving or long-distance travel, this switch helps users quickly find a comfortable seating position, reducing fatigue and enhancing safety.
As a seat adjustment switch used in vehicle interiors, the G19 Series boasts excellent durability and environmental adaptability. Its precise structure provides a stable trigger signal within the seat adjustment mechanism, ensuring a sensitive response from the adjustment motor. Furthermore, the product has an IP67 waterproof and dustproof rating, preventing dust ingress and short-term water immersion from causing malfunctions. This ensures reliable operation in humid, dusty, or complex environments, making it an important component for enhancing in-vehicle comfort and intelligent control.
