Model No: G19-152LRC1AAU

Waterproof Car Seat Adjustment Switch Two-Ways Left Sides G19 Series

Model Number:G19-152LRC1AAU
Max. Current:15A 14VDC/ 8A 12VDC
Operating Temperature:-40℃~+85℃
Protection Level:IP67
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Circuit Code:SPDT, SPST-NO, SPST-NC
Electrical life:Over 30,000 cycles
Mechanical Life:Over 50,000 cycles
Application:Automotive, Electronic Equipment, Apparatus and Instruments
Color:Black and red
minimum order :
1000 pieces
Quantity :
Contact Now

Product Description

The G19 Series Waterproof Car Seat Adjustment Switch with Two-Way Left Sides is a car seat adjustment switch developed for automotive seat adjustment systems. It is primarily used to control the fore-and-aft movement or angle adjustment of the seat, achieving a comfortable and convenient driving experience. The product is suitable for operating environments from -40℃ to +85℃, with an electrical operation frequency of 20-30 times/min and a mechanical operation frequency of 50-100 times/min, meeting the needs of frequent car seat adjustments.

As a waterproof micro switch, the G19 Series features a waterproof and dustproof (IP67) design, effectively handling the complex environments of a vehicle interior, including humidity and dust. It offers two rated load options: 15A 14VDC and 8A 12VDC, and supports two-way conversion. As an automotive micro switch, it exhibits excellent environmental adaptability and durability. The overall structure is meticulously designed by a micro switch manufacturer and is widely applicable to electric seat control systems in passenger cars and new energy vehicles.

Feature

◆ Sealed design, IP67 protection rating, excellent environmental resistance
◆ Multiple operating lever heights available to suit different vehicle models
◆ Compact structure, enabling two-way switching
◆ Uses high-performance spring material, high switching sensitivity, and long service life

Drawing

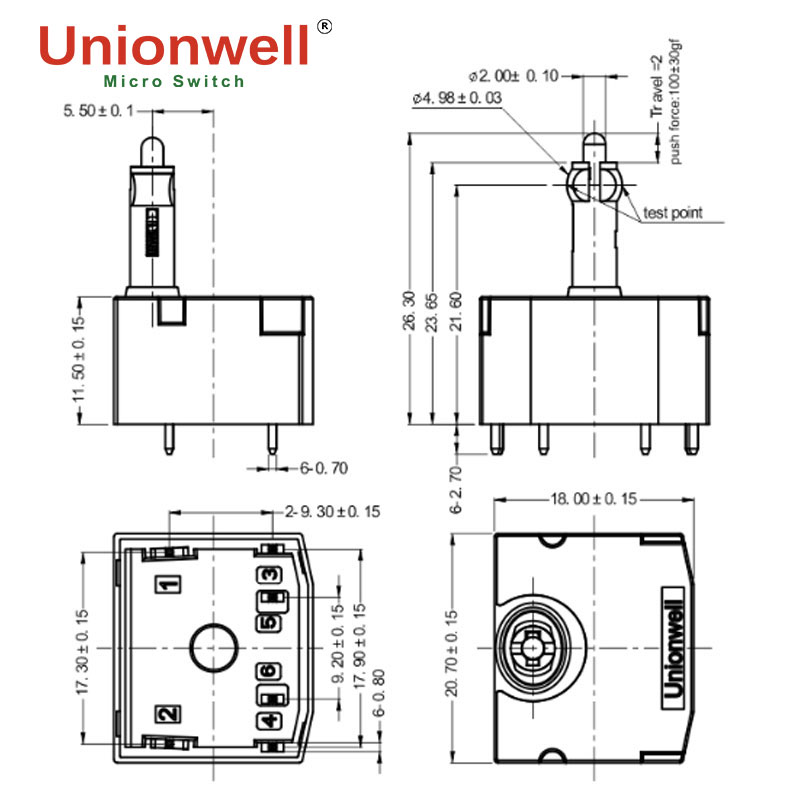

car seat adjustment switch left side drawing

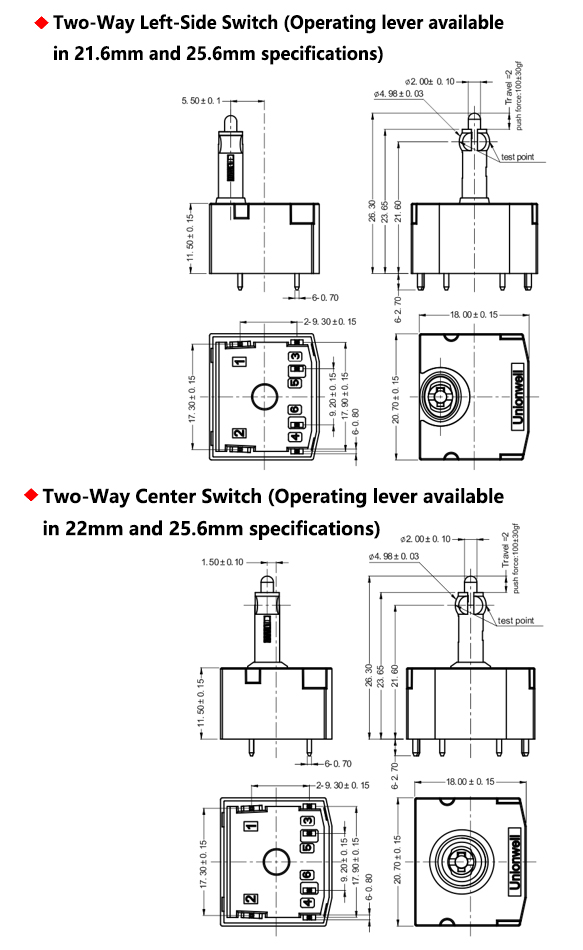

waterproof car seat adjustment switch two-way dimensions

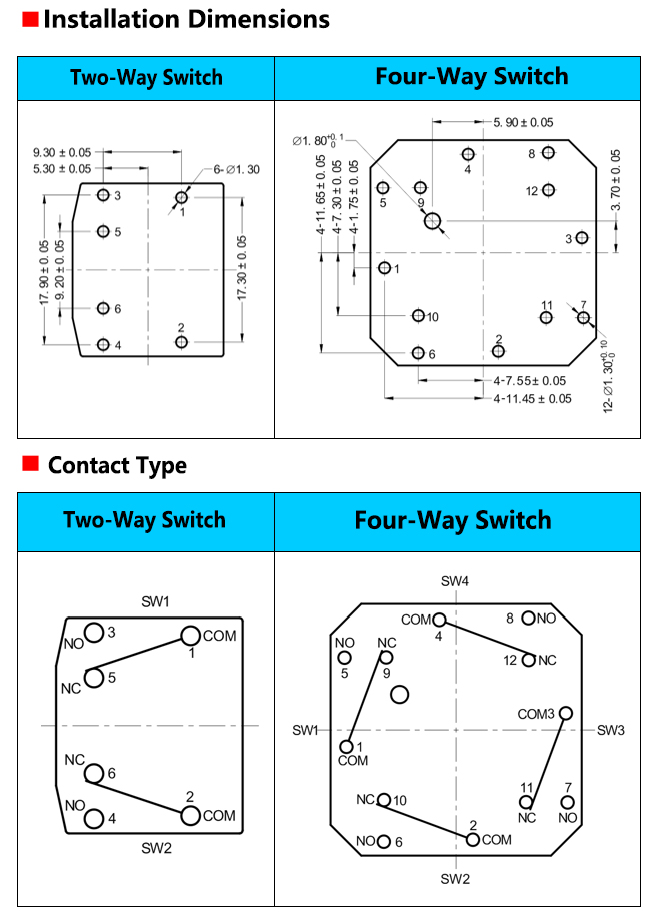

waterproof car seat adjustment switch different types

Parameter

Rating15A 14VDC/8A 12VDC
Electronic Operating Frequency20~30 cycles/min
Initial Contact Resistance20mΩ Max
Insulation Resistance100MΩ Min
Withstand VoltageBetween all mutually insulated terminalsAC500V (50~60Hz), Leakage Current: 10ms, Duration: 60±5 seconds
Between terminals and housingAC1000V (50~60Hz),Leakage Current: 10ms, Duration: 60±5 seconds
LifespanLoad Life30,000 cycles
Mechanical Life50,000 cycles
Protection RatingIP67 (without terminal parts)
Operating Environment Temperature-40℃~+85℃
Operating Environment Humidity96%RH  Max

Details View

Here are detailed images of two different types of switches: a two-way center adjustment switch, and a two-way left-side adjustment switch.

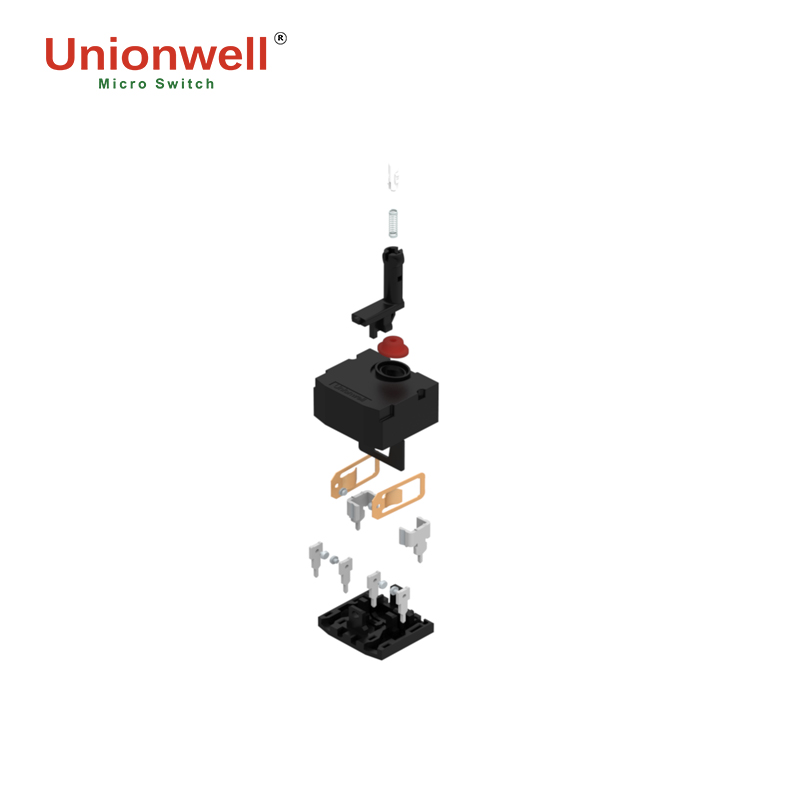

waterproof car seat adjustment switch two-way left-side details

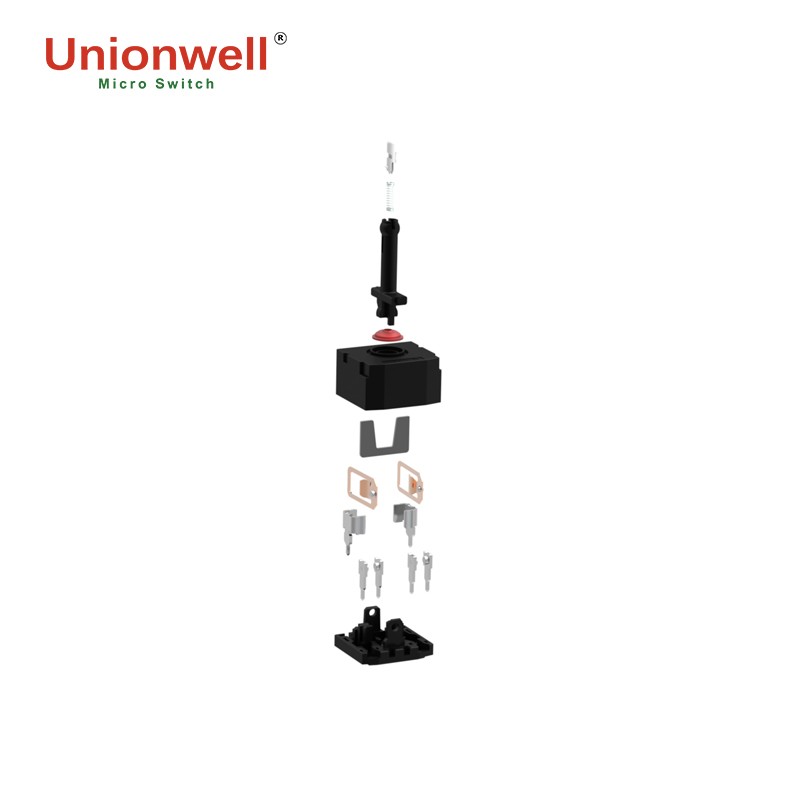

waterproof car seat adjustment switch two-way center details

Application

Designed specifically for automotive seat adjustment systems, the G19 Series car seat adjustment switch primarily controls functions such as seat fore-and-aft movement and position adjustment. Through precise electrical signal output, the switch helps drivers and passengers quickly adjust their seats to a comfortable seating position, enhancing the driving and riding experience and meeting ergonomic needs in various driving scenarios.

The G19 Series features a compact and durable design with an IP67 waterproof and dustproof rating, effectively resisting liquid splashes, dust intrusion, and the effects of humid environments. Even when installed on the side of the seat for extended periods, it maintains stable performance and reliable electrical connections. Widely used in passenger cars, electric vehicles, and smart cockpit systems, it provides a precise and efficient control solution for automotive seat adjustments.
