Model No: GT06-C025-BD
Polar Magnetic Keyboard Switch Red Star GT06 Series
Model Number: GT06-C001-BD
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force: 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Dual Independent Arc-Shaped Light Guide Top Housing
Actuation Travel(mm): Custom
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force: 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Dual Independent Arc-Shaped Light Guide Top Housing
Actuation Travel(mm): Custom
minimum order :
1000 pieces
Quantity :
Product Description
As a gaming keyboard switch, this product features a linear feel with an actuation force of 35±5gf and a total travel of 3.20mm±0.10mm, offering smooth keystrokes and crisp rebound. It also features a dual independent arc-shaped light guide top housing, effectively enhancing RGB lighting effects and making it suitable for various esports games.
Based on the Hall effect principle, this hall effect keyboard switch achieves contactless actuation, with a mechanical lifespan exceeding 100,000,000 keystrokes, significantly reducing wear and improving stability. Its compact and reliable overall structure, meticulously designed by a micro switch manufacturer, balances performance and durability.
The Polar Magnetic Red Star Keyboard Switch GT06 Series is widely used in gaming and esports keyboards. As a polar magnetic keyboard switch, its magnetic actuation technology provides more stable input feedback and supports customizable actuation distance, allowing players to fine-tune the operation experience for different game types.
As a gaming keyboard switch, this product features a linear feel with an actuation force of 35±5gf and a total travel of 3.20mm±0.10mm, offering smooth keystrokes and crisp rebound. It also features a dual independent arc-shaped light guide top housing, effectively enhancing RGB lighting effects and making it suitable for various esports games.
Based on the Hall effect principle, this hall effect keyboard switch achieves contactless actuation, with a mechanical lifespan exceeding 100,000,000 keystrokes, significantly reducing wear and improving stability. Its compact and reliable overall structure, meticulously designed by a micro switch manufacturer, balances performance and durability.
Feature
◆ Reliability (no mechanical or electrical degradation, extremely long life) & hot-swappable
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
Parameter
| Operating force | 35gf±5gf |
| Total Travel | 3.20±0.10mm |
| Full stroke pressure | ＜85gf |
| Mechanical lifespan/click | ＞100million cycles |
| Operating temperature | -40℃~+80℃ |
| Operating humidity | ≤85%RH |
| Hand Feeling Type | Linear |
| Material：Core/Upper Cover/ Buttom | POM/PC/POM |
| Spring Length | 21mm |
| Initial Magnetic Flux PCB 1.6MM | 90±15Gs |
| Bottom-Out Magnetic Flux PCB 1.6MM | 480±60Gs |
| Top Housing Light-transmitting Type | Dual Independent Arc-Shaped Light Guide Top Housing |
| Bottom-Out Force(gf) | 45±10gf |
Details View

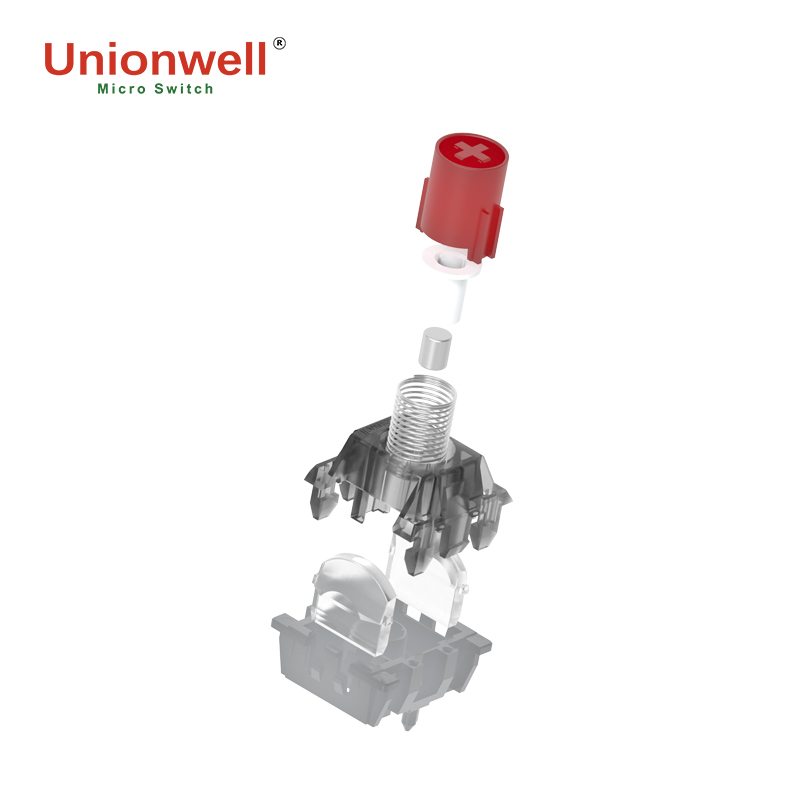

The following exploded view showcases the polar magnetic red star keyboard switch internal structure and components:
- High-Transparency PC Top Housing: The PC material allows RGB lighting to penetrate better, ensuring clear and bright keycap characters. Combined with a circular dust-proof structure, it enhances dust protection while improving the vertical sliding feel and stability of the switches, enhancing the overall user experience.
- N52 High-Grade Magnet: The magnet is made of N52 high-grade magnetic material, providing stable and consistent magnetic performance, ensuring the stability of the Hall effect sensor. Through the interaction between the magnet and the spring, this keyboard switch offers a wider adjustable actuation point, allowing users to choose their preferred response speed.
- 21mm Extended SpringandPOM Base: This 21mm extended spring is made of premium non-magnetic stainless steel, providing better rebound, a smooth and silent feel, and more sensitive bottoming-out feedback. This extended and non-magnetic design, combined with the excellent self-lubricating and wear-resistant properties of the POM material itself, brings a superior feel to the entire keyboard switch.
- Dual Independent Arc-Shaped Light Guide Top Housing: This product adopts a unique dual-light-guide design, which significantly improves the light transmission efficiency and uniformity of the entire product, enhances structural rigidity, and does not affect the stability of the Hall effect.
Stem Design
Unionwell's POM Material Stem and Ball-and-Socket Joint Split Structure achieve a precise fit, giving the red star polar magnetic keyboard switch a stable and reliable feel when pressed. Thanks to the self-lubricating and wear-resistant properties of the POM Stem material itself, combined with the ball-and-socket joint split structure, this polar magnetic keyboard switch improves switch smoothness and clicktimes, enhancing the overall user experience and resulting in superior keyboard performance.
