Model No: GT06-C023-B
Unionwell Polar Magnetic Snow Shine Keyboard Switch
Model Number: GT06-C023-B
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force(gf): 45±10gf
Hand Feeling Type: Linear
Lifespan: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Magnetic Flux PCB 1.6MM: 90±15Gs
Bottom-Out Magnetic Flux PCB1.6MM: 480±60GS
Light-transmitting Type: One-Piece Light-transmitting Top Cover with Dual-Hole, Dual-LED Mount
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force(gf): 45±10gf
Hand Feeling Type: Linear
Lifespan: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Magnetic Flux PCB 1.6MM: 90±15Gs
Bottom-Out Magnetic Flux PCB1.6MM: 480±60GS
Light-transmitting Type: One-Piece Light-transmitting Top Cover with Dual-Hole, Dual-LED Mount
minimum order :
1000 pieces
Quantity :
Product Description
As an excellent gaming keyboard switch, this product boasts an actuation force of 35±5gf and a total travel of 3.20mm±0.10mm, providing a smooth and natural keystroke feel that remains comfortable and stable even after prolonged use. It also features a mechanical lifespan of over 100,000,000 keystrokes, easily handling intensive esports environments.
Furthermore, as an e-sport keyboard switch, the GT06 Snow Shine keyboard switch excels in responsiveness and consistency, suitable for the precise control requirements of competitive games. The overall design, meticulously crafted by micro switch supplier Unionwell, balances feel, durability, and stable output.
The Polar Magnetic Snow Shine Keyboard Switch GT06 Series is a high-performance polar magnetic keyboard switch designed specifically for gaming and esports keyboards. Its Hall effect trigger structure delivers more stable input performance and supports customizable actuation point, allowing players to flexibly adjust the depth of operation and response mode according to different game needs.
As an excellent gaming keyboard switch, this product boasts an actuation force of 35±5gf and a total travel of 3.20mm±0.10mm, providing a smooth and natural keystroke feel that remains comfortable and stable even after prolonged use. It also features a mechanical lifespan of over 100,000,000 keystrokes, easily handling intensive esports environments.
Furthermore, as an e-sport keyboard switch, the GT06 Snow Shine keyboard switch excels in responsiveness and consistency, suitable for the precise control requirements of competitive games. The overall design, meticulously crafted by micro switch supplier Unionwell, balances feel, durability, and stable output.
Feature
◆ Reliability (no mechanical or electrical degradation, extremely long life) & hot-swappable
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ One-Piece Light-transmitting Top Cover with Dual-Hole, Dual-LED Mount
Parameter
| Operating force | 35gf±5gf |
| Total Travel | 3.20±0.10mm |
| Full stroke pressure | ＜85gf |
| Mechanical lifespan/click | ＞100million cycles |
| Operating temperature | -40℃~+80℃ |
| Operating humidity | ≤85%RH |
| Hand Feeling Type | Linear |
| Material：Core/Upper Cover/ Buttom | POM/PC/POM |
| Spring Length | 21mm |
| Initial Magnetic Flux PCB 1.6MM | 90±15Gs |
| Bottom-Out Magnetic Flux PCB 1.6MM | 480±60Gs |
| Light-transmitting Type | Integrated Dual Dot-Matrix Light Guides |
| Bottom-Out Force(gf) | 45±10gf |

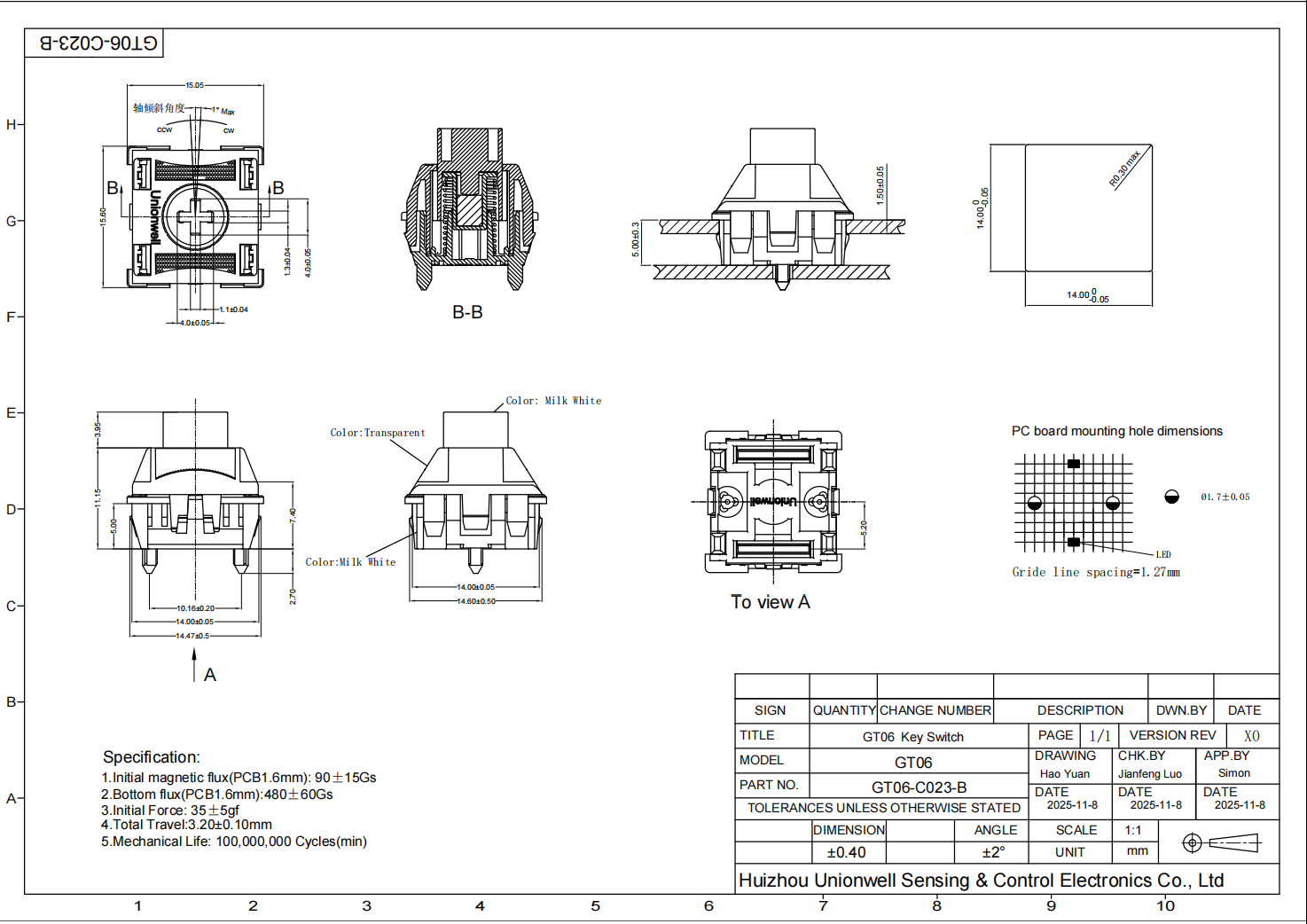

Drawing

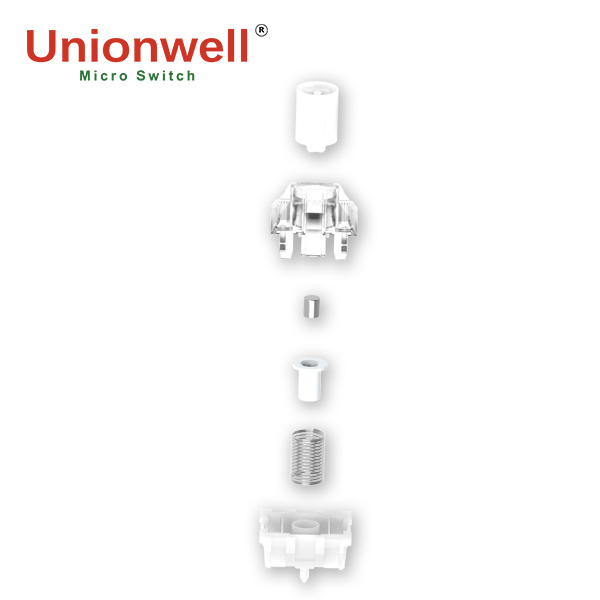

Details View
Unionwell's Snow Shine keyboard switch utilizes premium materials and a unique design to create exceptional performance. The following Exploded View showcases its internal structure and components:
- High-Transparency PC Material Cover,POM Material stem: POM material itself possesses excellent self-lubricating and wear-resistant properties, improves the smoothness and lifespan of the switch, thus enhancing the overall experience.
- N52 High-Grade Magnet: The magnet is made of N52 high-performance magnetic material, providing stable and consistent magnetic performance to ensure the stability of the Hall effect sensor. it offers a wider range of adjustable actuation travel, allowing users to choose their preferred response speed.
- 21mm extended springandPOM base: This 21mm spring is made of high-quality non-magnetic stainless steel, offering superior rebound, a smooth and noiseless feel, and more sensitive bottoming-out feedback. This longer, non-magnetic design, exceeding the industry standard, contributes to a superior feel for the entire keyboard switch.
- Integrated Dual Dot-Matrix Light Guides: This product features a unique dual light guide design, which greatly improves the light transmission efficiency and uniformity of the entire product, enhancing structural rigidity without affecting the stability of the Hall effect.
Stem Design
Unionwell's POM circular dustproof stem and Ball-and-Socket Joint Split Structure achieve precise coordination, giving the polar magnetic snow shine keyboard switch a sturdy and stable feel when pressed.Thanks to this premium material, the switch produces a more pleasant sound when struck. it improves the smoothness and service life of the shaft, bringing the overall operating experience to a higher level, make the keyboard more wounderful.
