Model No: GT06-C020-B

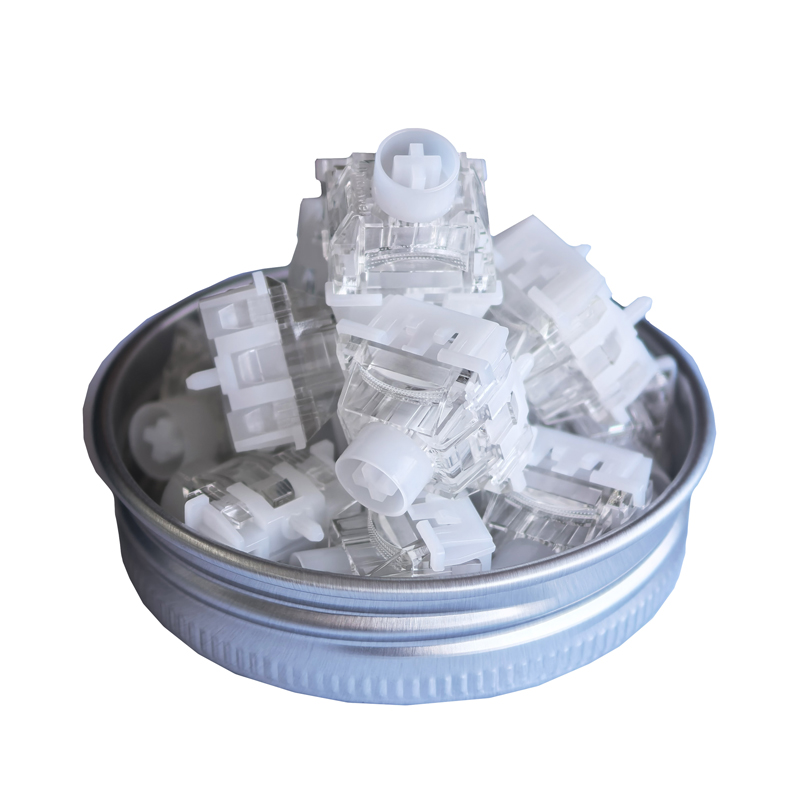

Unionwell GT06 Series Crystal Shine Polar Magnetic Keyboard Switch
Model Number: GT06-C020-B
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force: 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: One-Piece Light-Transmitting Top Cover with Dual-Hole, Dual-LED Mount
Actuation Travel(mm): Custom
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force: 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: One-Piece Light-Transmitting Top Cover with Dual-Hole, Dual-LED Mount
Actuation Travel(mm): Custom
minimum order :
1000 pieces
Quantity :
Product Description
As a gaming keyboard switch, this product features an operating force of 35±5gf and a total travel of 3.20mm±0.10mm, delivering a smooth and balanced typing experience. It also features a one-piece light-transmitting top cover with dual-hole, dual-LED mount, significantly enhancing RGB lighting effects, making it suitable for high-end gaming devices.
As an e-sport keyboard switch, its mechanical life exceeds 100,000,000 cycles, capable of withstanding prolonged high-frequency operation while maintaining stable output and consistent feel. The overall structure and optical performance are meticulously designed by Unionwell, the micro switch manufacturer, achieving an excellent balance between performance and visual appeal.
The Polar Magnetic Crystal Shine Keyboard Switch GT06 Series is optimized for gaming and esports keyboards. As a polar magnetic keyboard switch, its magnetic actuation structure ensures precise and stable input, and supports customizable actuation point, allowing players to freely adjust the actuation point according to different operational needs, enhancing control flexibility.
As a gaming keyboard switch, this product features an operating force of 35±5gf and a total travel of 3.20mm±0.10mm, delivering a smooth and balanced typing experience. It also features a one-piece light-transmitting top cover with dual-hole, dual-LED mount, significantly enhancing RGB lighting effects, making it suitable for high-end gaming devices.
As an e-sport keyboard switch, its mechanical life exceeds 100,000,000 cycles, capable of withstanding prolonged high-frequency operation while maintaining stable output and consistent feel. The overall structure and optical performance are meticulously designed by Unionwell, the micro switch manufacturer, achieving an excellent balance between performance and visual appeal.
Feature
◆ Reliability (no mechanical or electrical degradation, extremely long life) & hot-swappable
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
Parameter
| Operating force | 35gf±5gf |
| Total Travel | 3.20±0.10mm |
| Full stroke pressure | ＜85gf |
| Mechanical lifespan/click | ＞100million cycles |
| Operating temperature | -40℃~+80℃ |
| Operating humidity | ≤85%RH |
| Hand Feeling Type | Linear |
| Material：Core/Upper Cover/ Buttom | POM/PC/POM |
| Spring Length | 21mm |
| Initial Magnetic Flux PCB 1.6MM | 90±15Gs |
| Bottom-Out Magnetic Flux PCB 1.6MM | 480±60Gs |
| Light-transmitting Type | Integrated Dual Dot-Matrix Light Guides |
| Bottom-Out Force(gf) | 45±10gf |

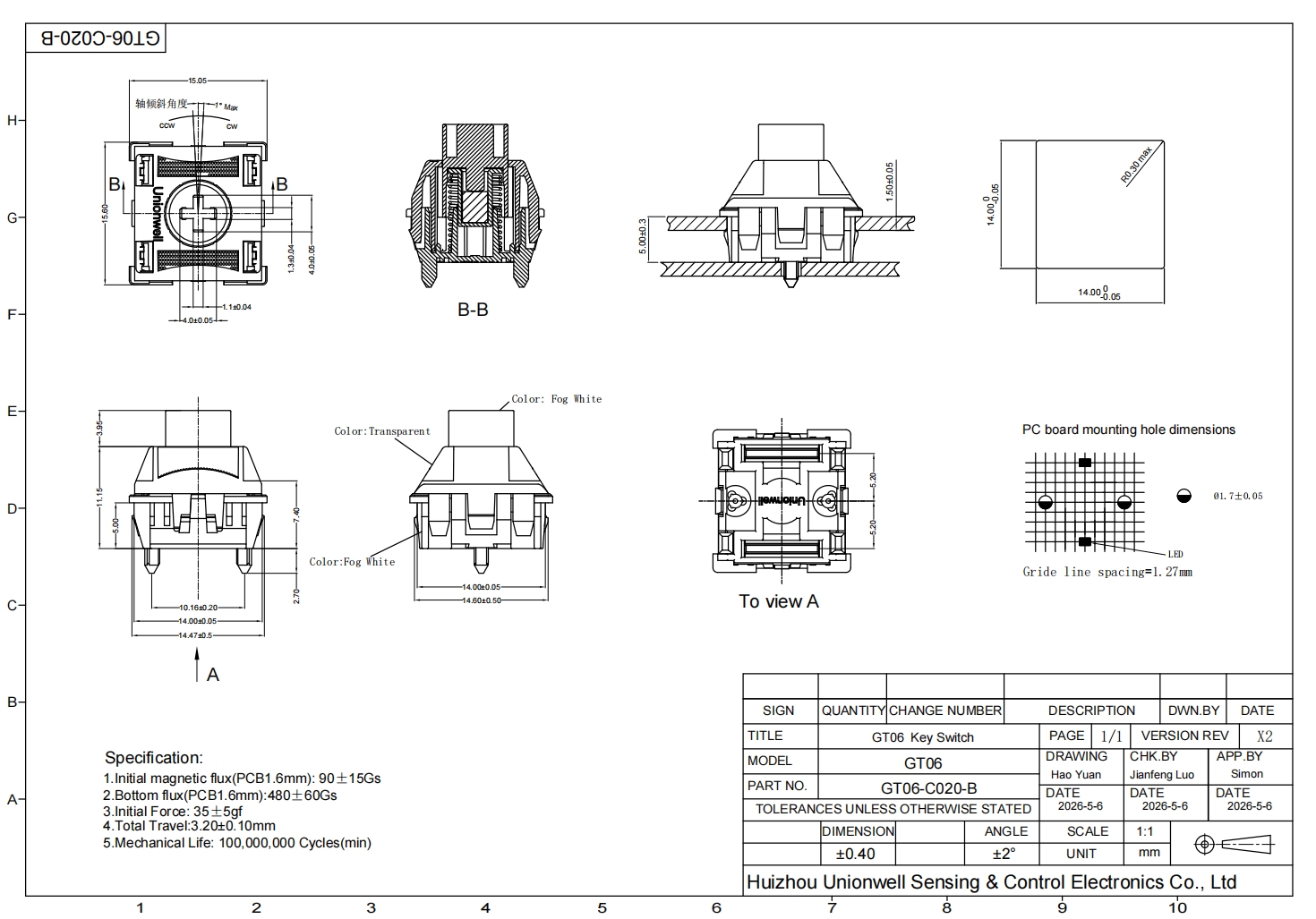

Drawing

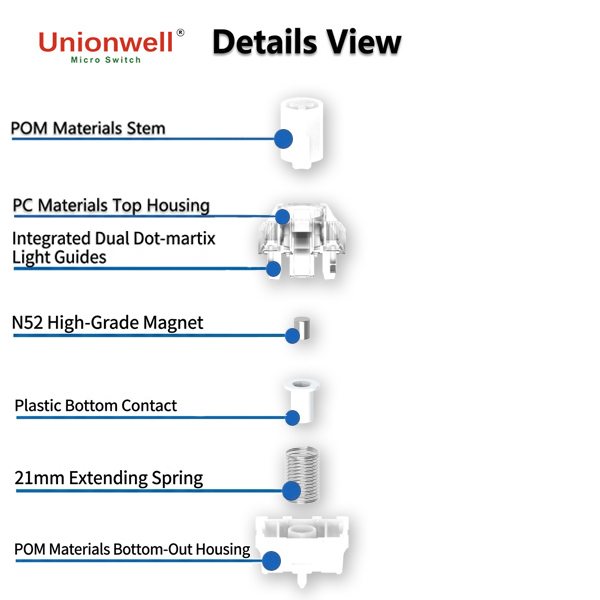

Details View
The following exploded view showcases its internal structure and components:
- High-TransparencyPC Top Housing: The PC material allows RGB lighting to penetrate better, ensuring clear and bright keycap characters. Combined with a circular dust-proof structure, it enhances dust protection while further improving the vertical sliding feel and stability of the switches, enhancing the overall user experience.
- N52 High-Grade Magnet: The magnet is made of N52 high-performance magnetic material, providing stable and consistent magnetic performance, ensuring the stability of the Hall effect sensor. Through the interaction between the magnet and the spring, this keyboard switch offers a wider adjustable actuation point, allowing users to choose their preferred response speed.
- 21mm Extended SpringandPOM Base: This 21mm extended spring is made of premium non-magnetic stainless steel, providing better rebound, a smooth and silent feel, and more sensitive bottoming-out feedback. This extended and non-magnetic design, combined with the excellent self-lubricating and wear-resistant properties of the POM material itself, brings a superior feel to the entire keyboard switch.
- Integrated Dual Dot-Matrix Light Guides: This product adopts a unique dual-light design, which significantly improves the light transmission efficiency and uniformity of the entire product, enhances structural rigidity, and does not affect the stability of the Hall effect.

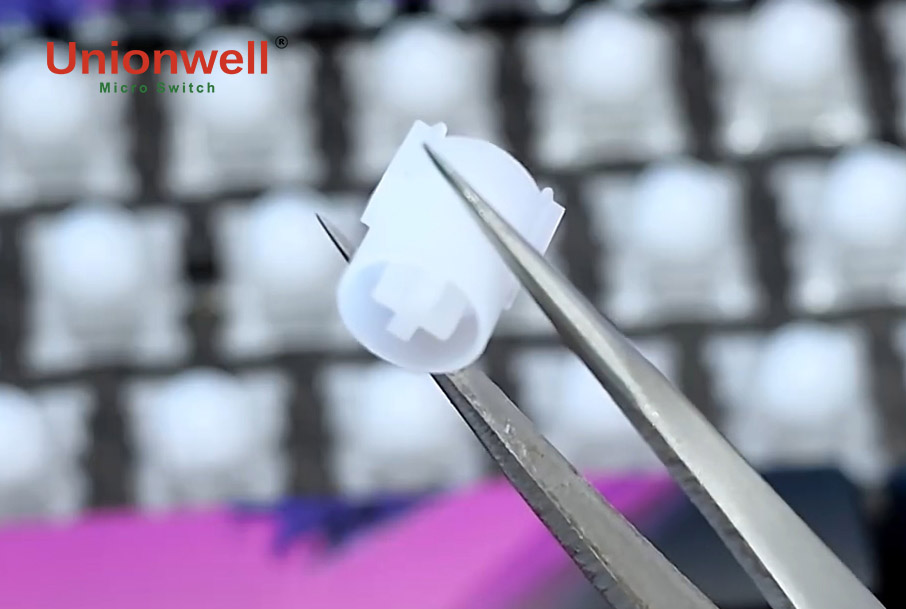

Stem Design
Unionwell's POM circular dustproof switches and Ball-and-Socket Joint Split Structure achieve a precise fit, giving the Crystal Shine polar magnetic keyboard switch a solid and reliable feel when pressed. Thanks to the excellent self-lubricating and wear-resistant properties of the POM Stem material itself, combined with the ball-and-socket joint split structure, this Hall Effect keyboard switch improves switch smoothness and lifespan, enhancing the overall user experience and resulting in superior keyboard performance.
