Model No: GT06-C037-BD

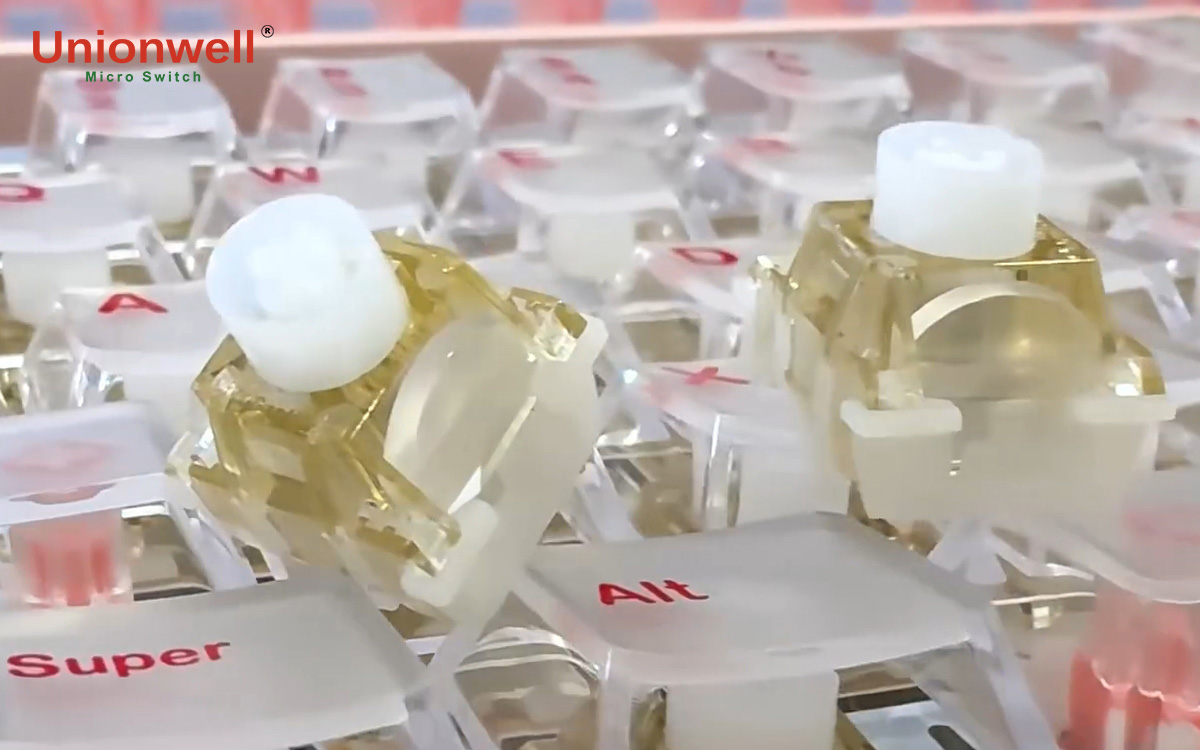

Polar Magneitc Keyboard Switch GT06 Series Dawn Light Switch Unionwell
Model Number: GT06-C037-BD
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force: 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Dual Independent Arc-Shaped Light Guide Top Housing
Actuation Travel(mm): Custom
Total Travel: 3.20±0.10mm
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force: 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Dual Independent Arc-Shaped Light Guide Top Housing
Actuation Travel(mm): Custom
Total Travel: 3.20±0.10mm
minimum order :
1000 pieces
Quantity :
Product Description
As an e-sport keyboard switch, this switch excels in durability, boasting a mechanical lifespan of up to 100,000,000 times, meeting the demands of prolonged, high-intensity use by esports players. Compared with the polar magnetic keyboard switch Primordial Unity, its crescent-shaped dual independent arc-shaped light guide top housing, combined with a PC top housing design, ensures uniform and clear RGB lighting effects and a clacky keystroke sound, enhancing the overall user experience.
As a hall effect keyboard switch, it offers higher actuation accuracy and stability due to the Hall effect, reducing physical wear. Meticulously designed by a micro switch supplier, it achieves a good balance between structure, feel, and visual appeal, making it a core component of gaming keyboards.
The Polar Magnetic Dawn Light Keyboard Switch is designed specifically for gaming keyboards. As a polar magnetic keyboard switch, it features a linear feel with a bottom-out force of 45±10gf and a total travel of 3.20±0.10mm, resulting in smoother and more precise key response, suitable for various games requiring rapid keystrokes and stable output.
As an e-sport keyboard switch, this switch excels in durability, boasting a mechanical lifespan of up to 100,000,000 times, meeting the demands of prolonged, high-intensity use by esports players. Compared with the polar magnetic keyboard switch Primordial Unity, its crescent-shaped dual independent arc-shaped light guide top housing, combined with a PC top housing design, ensures uniform and clear RGB lighting effects and a clacky keystroke sound, enhancing the overall user experience.
As a hall effect keyboard switch, it offers higher actuation accuracy and stability due to the Hall effect, reducing physical wear. Meticulously designed by a micro switch supplier, it achieves a good balance between structure, feel, and visual appeal, making it a core component of gaming keyboards.
Feature
◆ Reliability (no mechanical or electrical degradation, extremely long life) & hot-swappable
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ Dual Independent Arc-Shaped Light Guide Top Housing
Parameter
| Operating force | 35gf±5gf |
| Total Travel | 3.20±0.10mm |
| Full stroke pressure | ＜85gf |
| Mechanical lifespan/click | ＞100million cycles |
| Operating temperature | -40℃~+80℃ |
| Operating humidity | ≤85%RH |
| Hand Feeling Type | Linear |
| Material：Core/Upper Cover/ Buttom | POM/PC/POM |
| Spring Length | 21mm |
| Initial Magnetic Flux PCB 1.6MM | 90±15Gs |
| Bottom-Out Magnetic Flux PCB 1.6MM | 480±60Gs |
| Top Housing Light-transmitting Type | Dual Independent Arc-Shaped Light Guide Top Housing |
| Bottom-Out Force(gf) | 45±10gf |
Details View
The internal structure and components of the polar magnetic dawn light keyboard switch are as follows:
- High-transparencyPC Top Housing: The PC material enhances RGB lighting penetration. Its Dual Independent Arc-Shaped Light Guide Top Housing design significantly improves the overall light transmission efficiency, further enhancing backlight uniformity and brightness, and optimizing the user's visual experience.
- N52 High-Grade Magnet: The magnet is made of N52 high-grade magnetic material, with an initial magnetic flux of 90±15Gs, providing stable and consistent magnetic performance and ensuring the stability of the Hall effect sensor.
- 21mm Extended SpringandPOM Bottom Housing: This spring is made of high-quality non-magnetic stainless steel, providing better rebound, a smooth and quiet feel, and more sensitive bottoming-out feedback. Through the interaction of the magnet and spring, the total travel of this keyboard switch is 3.20±0.10mm. This design, combined with the excellent self-lubricating and wear-resistant properties of the POM base material, brings a superior tactile experience to the keyboard switch.
Stem Design
Unionwell'sPOM (Polymer Oxide) stems feature a split stem design, providing the Dawn Light polar magnetic keyboard switch with a stable and reliable tactile feel. The upper stem is a decoupled stem, precisely transmitting vertical input and filtering out unwanted horizontal wobble. The lower stem is a sound-optimized stem, with POM material encasing an N-52 magnet, enhancing key smoothness and a crisp click feel for superior keyboard performance.
