Model No: GT06-C006-BD
Unionwell GT06-C006-BD_Rev_A0 polar magnetic Primordial Unity keyboard switch
Model Number: GT06-C006-BD
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 37±5gf
Total Travel Force: <85gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 23mm
Material(Core/Upper Cover/ Bottom):POM/POM/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Independent are light guider
Character:Debuted on ATK 68RX
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 37±5gf
Total Travel Force: <85gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 23mm
Material(Core/Upper Cover/ Bottom):POM/POM/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Independent are light guider
Character:Debuted on ATK 68RX
minimum order :
1000 pieces
Quantity :
Product Description
The Polar Magnetic Primordial Unity Keyboar Switch boasts precise actuation and customizable travel as its core advantages. Utilizing a ball-and-socket joint structure, this polar magnetic keyboard switch offers greater linear stability during force application and rebound, resulting in smoother key feedback and a more uniform tactile feel. Its compact design supports rapid operation, meeting the high-intensity input needs of gamers and programmers. An operating temperature range of -40℃ to +80℃ ensures consistent actuation and reliable feedback in various environments.
Compared to mechanical keyboard switches, it employs a 23mm Extended Spring, providing a crisp tactile feedback and allowing users to customize key travel for greater control freedom. A mechanical life of 100,000,000 cycles ensures exceptional durability, making it suitable for extended input environments. The switch utilizes a POM Material Cover, POM Material Stem, and POM Material Base to ensure smooth internal movement, minimal wear, and effectively extend its overall lifespan.
Thisgaming keyboard switch utilizes a magnetic trigger structure to provide an extremely short actuation distance and rapid response, significantly improving skill release and key operation efficiency to meet the demands of high-intensity gaming. In office settings, the smooth and tactile typing experience reduces fatigue during extended typing sessions, resulting in a more comfortable typing experience. Overall, this Polar magnetic primordial unity keyboard switch, meticulously designed by a micro switch manufacturer, offers an efficient, refined, and reliable input solution for esports players and professional office workers alike, thanks to its superior precision, customizable travel, long-life structure, and compact design.
Feature
◆ Reliability (no mechanical or electrical degradation, extremely long life) & hot-swappable
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing

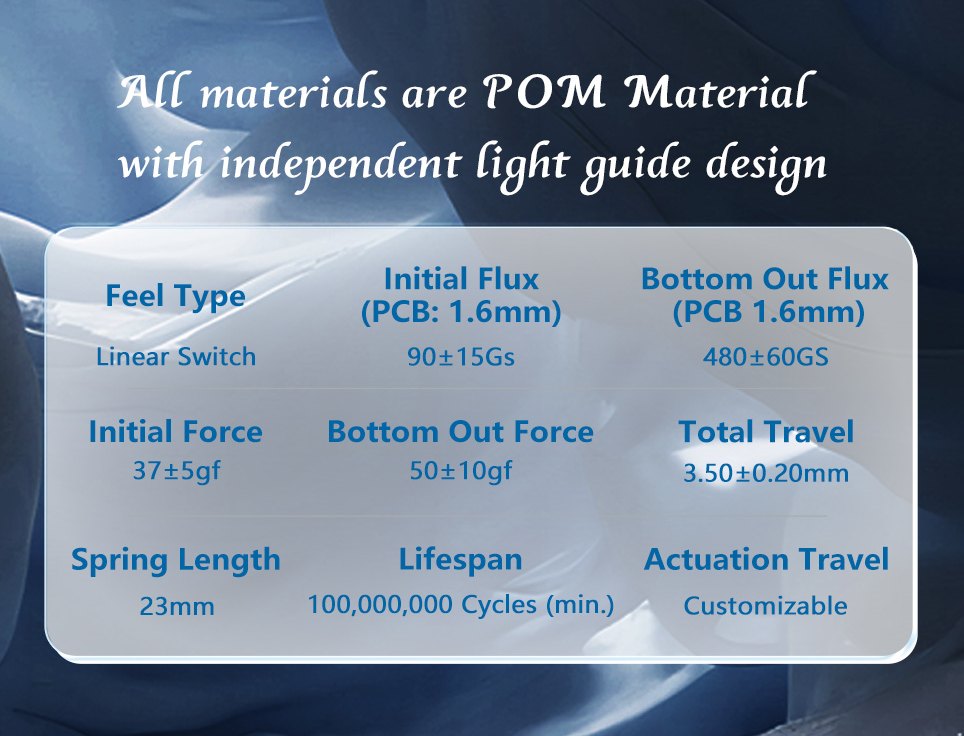

Keyboard Switch Details
Parameter
| Operating force | 37gf±5gf |
| Total Travel | 3.50±0.20mm |
| Full stroke pressure | ＜85gf |
| Mechanical lifespan/click | ＞100million cycles |
| Operating temperature | -40℃~+80℃ |
| Operating humidity | ≤85%RH |
| Hand Feeling Type | Linear |
| Material：Core/Upper Cover/ Buttom | POM/POM/POM |
| Spring Length | 23mm |
| Initial Flux PCB 1.6MM | 90±15Gs |
| Bottom Flux PCB 1.6MM | 480±60Gs |
| Light-transmitting Type | Independent are light guider |
| Character | Debuted on ATK 68RX |
Details View
This key switch uses an N52 high-grade magnet, providing a sensitive actuation experience through strong magnetic properties. Thanks to the stable magnetic field of the high-grade permanent magnet, the switch achieves faster response speed and stable actuation feedback during activation, resulting in a more precise and smooth actuation curve. The magnetically assisted structure reduces the heavy reliance on traditional metal contacts and springs, reducing mechanical vibration and extending structural lifespan.
Equipped with a 23mm extended spring, it offers higher elasticity and rebound force compared to the short spring design in traditional key switches. The extended spring provides a more balanced pressure curve after pressing, resulting in a smooth and consistent key rebound, offering a balance of resilience and stability in the user experience. At the same time, this structure provides users with more comfortable tactile feedback and effectively reduces fingertip fatigue during prolonged typing.

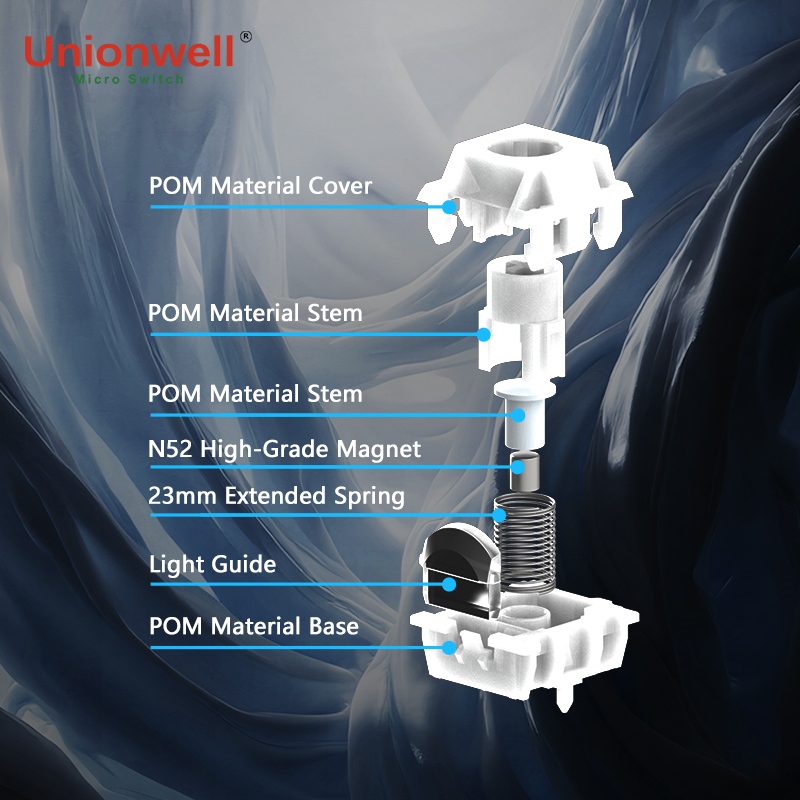

In this details View, you can see:
The core structure extensively utilizes POM material, including the switch housing, core, and base, resulting in a lower overall coefficient of friction and a smoother, more responsive feel with stable rebound. POM material combines high wear resistance with excellent dimensional stability, allowing the switch to maintain precise actuation position even after prolonged use, reducing actuation deviation caused by wear and significantly improving lifespan and consistency.
This key switch uses an N52 high-grade magnet, providing a sensitive actuation experience through strong magnetic properties. Thanks to the stable magnetic field of the high-grade permanent magnet, the switch achieves faster response speed and stable actuation feedback during activation, resulting in a more precise and smooth actuation curve. The magnetically assisted structure reduces the heavy reliance on traditional metal contacts and springs, reducing mechanical vibration and extending structural lifespan.
Equipped with a 23mm extended spring, it offers higher elasticity and rebound force compared to the short spring design in traditional key switches. The extended spring provides a more balanced pressure curve after pressing, resulting in a smooth and consistent key rebound, offering a balance of resilience and stability in the user experience. At the same time, this structure provides users with more comfortable tactile feedback and effectively reduces fingertip fatigue during prolonged typing.

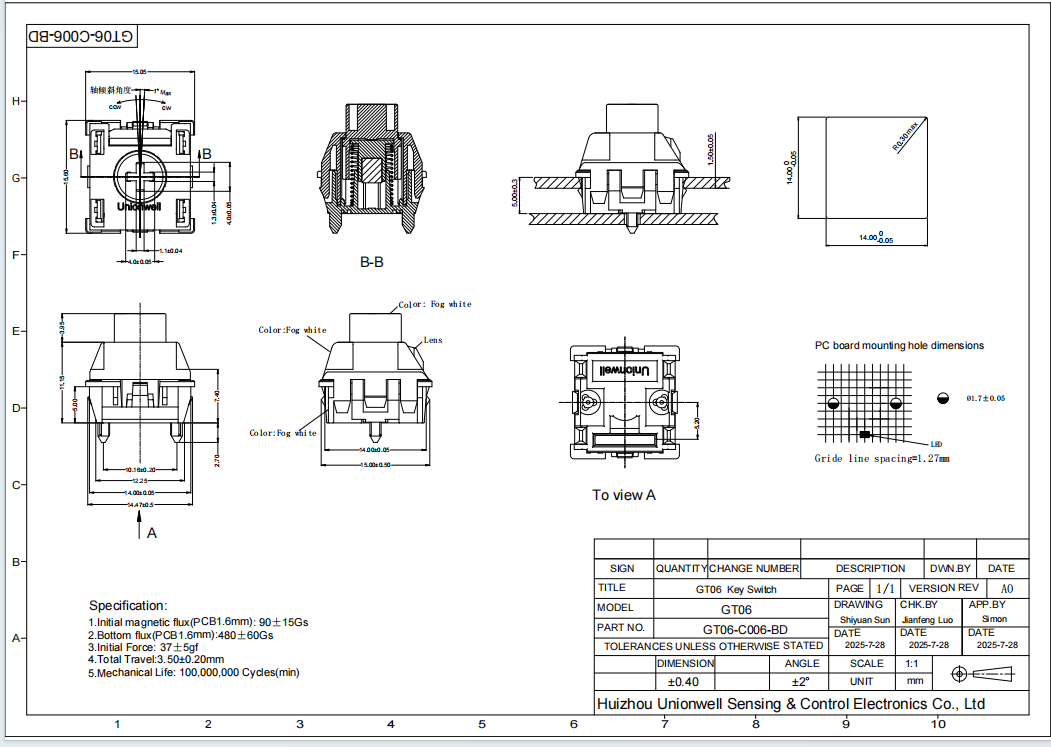

Drawing

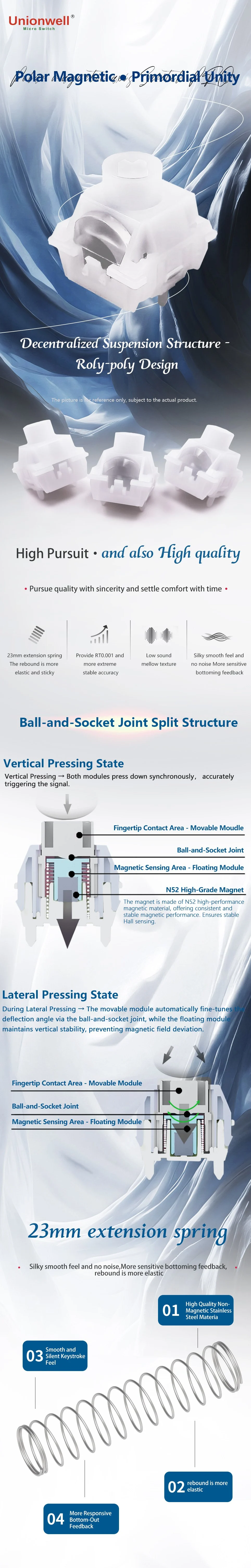

Stem Design
Its ball-and-socket joint design is the core highlight of this product. This structure provides the core with a more flexible force angle, allowing the key to maintain stable descent and smooth rebound when pressed in different directions, reducing key jamming and lateral wobble. Thanks to the ball-and-socket connection, overall support is more even, effectively improving the typing feel and making the actuation more focused, making it more suitable for precise input and gaming scenarios.
The internal magnetic system uses an N52 high-grade magnet, utilizing strong magnetic properties to ensure sensitive response of the key switch during actuation, reducing mechanical jitter, improving actuation consistency, and providing users with a more precise typing feedback experience.
The Polar Magnetic Primordial Unity Switch utilizes a unique POM Material core and housing, offering advantages such as low friction, wear resistance, and high stability, ensuring a smooth and fluid key actuation experience. POM also provides excellent noise reduction, making it suitable for high-speed typing and extended office work environments.
Its ball-and-socket joint design is the core highlight of this product. This structure provides the core with a more flexible force angle, allowing the key to maintain stable descent and smooth rebound when pressed in different directions, reducing key jamming and lateral wobble. Thanks to the ball-and-socket connection, overall support is more even, effectively improving the typing feel and making the actuation more focused, making it more suitable for precise input and gaming scenarios.
The internal magnetic system uses an N52 high-grade magnet, utilizing strong magnetic properties to ensure sensitive response of the key switch during actuation, reducing mechanical jitter, improving actuation consistency, and providing users with a more precise typing feedback experience.
Application
The Polar Magnetic Primordial Unity Switch is a magnetic keyboard switch designed for high-performance typing scenarios, primarily used in e-sports and high-efficiency office environments. Its rapid response is suitable for games like FPS and MOBA that demand extremely fast reaction times, providing more stable and clear actuation feedback during high-speed rapid-fire and continuous input, helping players achieve precise operation. Furthermore, this switch features consistent actuation distance and a smooth actuation feel, effectively reducing fatigue and improving input efficiency during long periods of typing or coding.
