Model No: GT06-C021-BD
Unionwell GT06 Series Polar Magnetic Ice Shine Keyboard Switch
Model Number: GT06-C021-BD
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force(gf): 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Dual Independent Arc-Shaped Light Guide Top Housing
Actuation Travel(mm): Custom
Operating Temperature: -40℃~+80℃
Operating Humidity: ≤85%RH
Operating Force: 35±5gf
Bottom-Out Force(gf): 45±10gf
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Material(Core/Upper Cover/ Bottom):POM/PC/POM
Initial Flux PCB 1.6MM: 480±60Gs
Light-transmitting Type: Dual Independent Arc-Shaped Light Guide Top Housing
Actuation Travel(mm): Custom
minimum order :
1000 pieces
Quantity :
Product Description
As a gaming keyboard switch, this product has an operating force of 35±5gf and a total travel of 3.20mm±0.10mm, resulting in a smooth feel and clear feedback. It also boasts a mechanical lifespan of 100,000,000 keystrokes, maintaining stable performance even under high-intensity gaming conditions, making it suitable for esports and high-frequency input scenarios.
Furthermore, this series is also a Dual Light Guide keyboard switch, optimizing the lighting guidance effect and enhancing the overall visual appeal of the keyboard. The product features a precise and reliable structure, meticulously designed by a micro switch supplier, demonstrating excellent performance and durability.

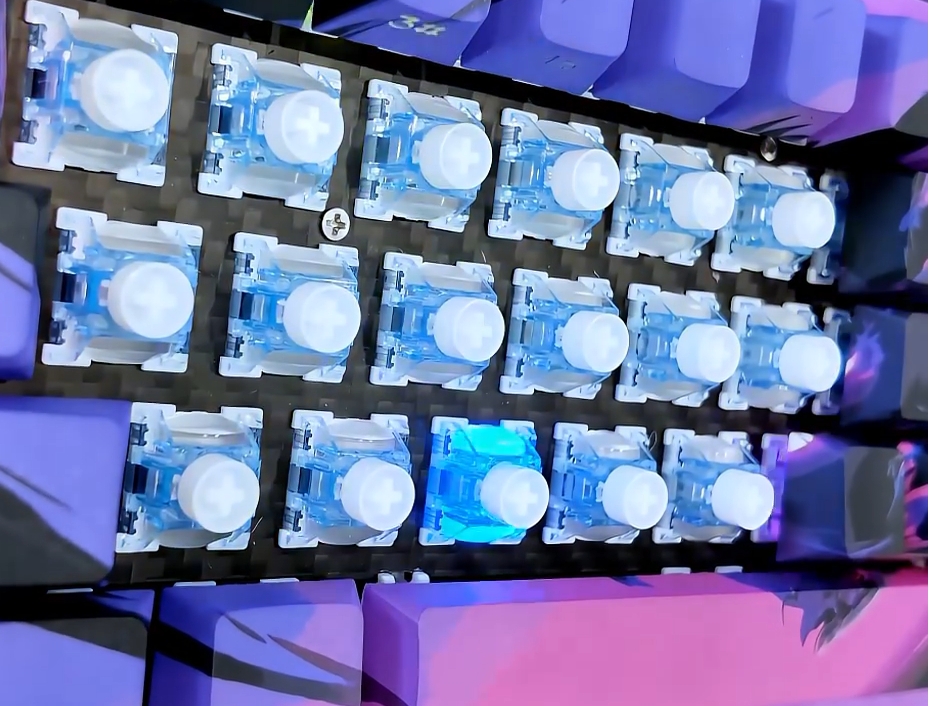

The Polar Magnetic Ice Shine Keyboard Switch GT06 Series is a high-performance keyboard switch widely used in gaming and esports keyboards. As a polar magnetic keyboard switch, its magnetic actuation method delivers stable and precise input performance, and it supports customizable actuation points to meet the personalized needs of different players for feel and responsiveness.
As a gaming keyboard switch, this product has an operating force of 35±5gf and a total travel of 3.20mm±0.10mm, resulting in a smooth feel and clear feedback. It also boasts a mechanical lifespan of 100,000,000 keystrokes, maintaining stable performance even under high-intensity gaming conditions, making it suitable for esports and high-frequency input scenarios.
Furthermore, this series is also a Dual Light Guide keyboard switch, optimizing the lighting guidance effect and enhancing the overall visual appeal of the keyboard. The product features a precise and reliable structure, meticulously designed by a micro switch supplier, demonstrating excellent performance and durability.
Feature
◆ Reliability (no mechanical or electrical degradation, extremely long life) & hot-swappable
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
◆ Versatility (connection and disconnection points can be different)
◆ Multiple connection points (different numbers of positions can be reported, depending on the IC)
◆ Adjustable multiple connection points during travel, TriggerMax™: Dynamic contact adjustment
◆ Robustness: Easy waterproofing
◆ 250μs response time
◆ Analog behavior
◆ Fully customizable keyboard: Different key profiles can be used for different purposes, such as gaming and word processing
Parameter
| Operating force | 35gf±5gf |
| Total Travel | 3.20±0.10mm |
| Full stroke pressure | ＜85gf |
| Mechanical lifespan/click | ＞100million cycles |
| Operating temperature | -40℃~+80℃ |
| Operating humidity | ≤85%RH |
| Hand Feeling Type | Linear |
| Material：Core/Upper Cover/ Buttom | POM/PC/POM |
| Spring Length | 21mm |
| Initial Flux PCB 1.6MM | 90±15Gs |
| Bottom Flux PCB 1.6MM | 480±60Gs |
| Light-transmitting Type | Dual Independent Arc-Shaped Light Guide Top Housing |
| Bottom-Out Force(gf) | 45±10gf |
Details View

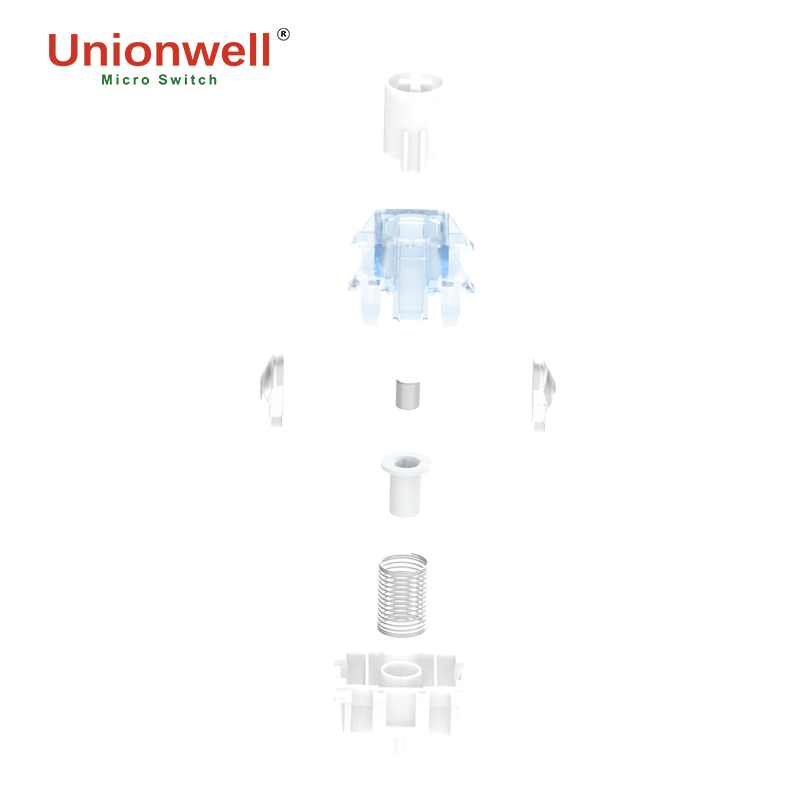

Unionwell's Ice Shine polar magnetic keyboard switch utilizes premium materials and a unique design to create exceptional performance. The following Exploded View showcases its internal structure and components:
- High-Transparency PC Material Cover,POM Material stem: POM material itself possesses excellent self-lubricating and wear-resistant properties. Combined with a circular dustproof structure, it not only enhances dust protection but also further improves the smoothness and lifespan of the switch, thus enhancing the overall experience.
- N52 High-Grade Magnet: The magnet is made of N52 high-performance magnetic material, providing stable and consistent magnetic performance to ensure the stability of the Hall effect sensor. Through the interaction between the magnet and the spring, this keyboard switch offers a wider range of adjustable actuation travel, allowing users to choose their preferred response speed.
- 21mm extended spring and POM base: This 21mm spring is made of high-quality non-magnetic stainless steel, offering superior rebound, a smooth and noiseless feel, and more sensitive bottoming-out feedback. This longer, non-magnetic design, exceeding the industry standard of 20mm, contributes to a superior feel for the entire keyboard switch.
- Dual Independent Arc-Shaped Light Guide Top Housing: This product features a unique dual-lamp design, which greatly improves the light transmission efficiency and uniformity of the entire product, enhancing structural rigidity without affecting the stability of the Hall effect.
Stem Design
Unionwell's POM circular dustproof stem and Ball-and-Socket Joint Split Structure achieve precise coordination, giving the polar magnetic keyboard switch ice shine a sturdy and stable feel when pressed.Thanks to this premium material, the switch produces a more pleasant sound when struck.
The POM material itself has excellent self-lubrication and wear resistance. Combined with the Ball-and-Socket Joint Split Structure, this gaming keyboard switch improves the smoothness and service life of the shaft, bringing the overall operating experience to a higher level, make the keyboard more wounderful.
The POM material itself has excellent self-lubrication and wear resistance. Combined with the Ball-and-Socket Joint Split Structure, this gaming keyboard switch improves the smoothness and service life of the shaft, bringing the overall operating experience to a higher level, make the keyboard more wounderful.
