What Is a Sealed Dual-Circuit Miniature Micro Switch and How Does It Work?

With the continuous upgrading of industrial automation and automotive electronic systems, the requirements for "safety redundancy" in control systems are constantly increasing. More and more devices are adopting dual-channel detection and primary/backup signal verification to reduce the risks of single-point failures. Under this trend, the Sealed Dual-Circuit Miniature Micro Switch is gradually becoming a key component in high-reliability control systems.

The dual-loop structure provides two independent electrical outputs, offering redundant verification paths for the safety loop. Simultaneously, in complex environments, factors such as dust, moisture, and vibration can affect the long-term stability of contacts; the sealed structure significantly improves reliability. This article will analyze the definition, internal structure, working principle, key parameters, and application scenarios of the Sealed Dual-Circuit Miniature Micro Switch to help readers understand its design logic and application value.

What Is a Sealed Dual-Circuit Miniature Micro Switch?

Basic Definition of a Sealed Dual-Circuit Miniature Micro Switch

A Sealed Dual-Circuit Miniature Micro Switch is a small, sealed, snap action micro switch with dual electrical loop outputs. It combines a miniature structure, a dual-circuit signal design, and sealed protection technology, making it widely applicable in control systems requiring redundant detection and high environmental adaptability.

• Miniature Structure: This type of switch features a compact design, small size, and low installation space requirements, making it suitable for complex or space-constrained equipment. Its internal snap-action mechanism ensures reliable triggering.
• Dual-Circuit Structure: Its core lies in its internal two independent contact systems. Each contact can output a signal independently, enabling synchronous or logically separate output between the main and auxiliary circuits. This structure provides dual signal confirmation for safety control systems.
• Sealed Design: Through epoxy resin potting, sealing ring design, and structural isolation, this type of switch possesses excellent sealing performance, preventing dust and moisture from entering the contact area, thereby improving long-term stability.

Differences between Sealed Dual-Circuit Miniature Micro Switches and Single-Circuit Micro Switches

1. Signal Output Differences: Single-circuit micro switches have only one set of NO or NC contacts. If a contact malfunctions, the system cannot perform cross-verification. Dual-circuit designs provide two independent sets of contacts, which can be connected to different detection channels, reducing the likelihood of "direct failure due to contact malfunction."
2. Advantages of Redundant Signal Structure: In a safety loop, the controller can simultaneously monitor the status of two signals. If the logic of the two signals is inconsistent, the system can determine an anomaly and trigger the protection mechanism. This redundancy structure significantly improves the system's safety level.
3. Improved Long-Term Stability Due to Sealed Structure: Basic micro switches may experience contact oxidation or fluctuations in contact resistance in humid or dusty environments. A sealed structure effectively blocks external environmental influences, ensuring long-term stable contact performance.

Internal Structure of Sealed Dual-Circuit Miniature Micro Switch

Dual-Circuit Contact System Structure

This type of switch contains two independent sets of moving and stationary contacts. Depending on the design, synchronous or segmented triggering can be achieved. The synchronous structure ensures that both sets of contacts switch at the same mechanical travel point; the segmented structure can output different signals at different displacement points.

Contact materials are typically alloys or gold-plated to ensure conductivity and arc resistance. In low-current control circuits, gold-plated contacts can be selected to reduce contact resistance and improve oxidation resistance.

Snap Action Mechanism

The snap action mechanism is the core of the micro switch. Its working principle is as follows: the spring-supported moving contact assembly gradually stores energy under external force, and flips instantaneously when a critical point is reached, achieving rapid contact switching. In the dual-circuit structure, the snap contact is assembled and driven by a clamp assembly to achieve a synchronous switching time of less than 15ms. This instantaneous flipping mechanism can:

1. Prevent contact bounce and signal ambiguity;
2. Reduce arc duration, indirectly extending switch life;
3. Improve conduction stability, making the device more stable and reliable.

The fast-acting structure ensures high repeatability with each trigger, enabling more precise completion of each task.

Sealed Structure in Sealed Dual-Circuit Miniature Micro Switch

The sealed structure is a key feature of this type of product. Its housing is potted with epoxy resin to prevent moisture penetration; a sealing ring is used at the actuator-housing junction to prevent moisture and dust from entering the interior along the operating rod. The terminal outlet is structurally reinforced or sealed to reduce the impact of the external environment. Through these treatments, its sealed structure enhances long-term stability and environmental adaptability.

How Does a Sealed Dual-Circuit Miniature Micro Switch Work?

Mechanical Triggering Process

The sealed dual-circuit miniature micro switch is subjected to external mechanical force. The force is transmitted to the spring mechanism via an actuator. After the stored energy reaches a critical point, it instantaneously flips, driving the dual-circuit contacts to switch. This action process ensures crisp switching, rapid response, and no signal ambiguity.

Dual-Circuit Electrical Switching Logic

The two sets of NO/NC contacts of this switch can be connected to different input ports of the control system. Common wiring methods include main circuit + auxiliary circuit, dual-channel safety input, and logic interlock detection. In the safety circuit, the control system simultaneously monitors whether the two signals are consistent to confirm the validity of the action.

Why Does the Dual-Circuit Design Improve Safety?

This dual-circuit design allows the two sets of contacts to provide dual state feedback for redundant signal detection. In addition, it allows one set to be used as the main signal and the other as a verification signal. Of course, it also prevents single-point failure; even if one set of contacts malfunctions, the other set can still trigger the system protection logic. This design significantly reduces the impact of single-point failures on system safety, making it one of the best choices for a secure system.

Main Technical Parameters of Sealed Dual-Circuit Miniature Micro Switch

The above parameters demonstrate the high mechanical lifespan, stable contact performance, and long-term environmental reliability of the sealed dual-circuit miniature micro switch. Furthermore, its IP67 rating enables stable operation in complex environments, serving as the best proof of its sealing performance.

Applications of Sealed Dual-Circuit Miniature Micro Switch

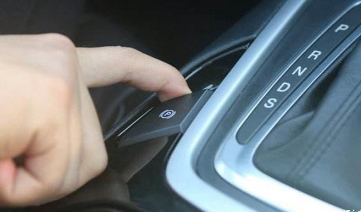

In automotive systems, the dual-signal design of this switch ensures accurate recognition of braking actions, reducing the impact of a single circuit failure on driving safety. This redundant feedback of the braking signal significantly improves driving safety.

In micro-current home appliances and smart devices, this type of switch uses dual signals to detect critical structures, improving device operational stability. It is suitable for critical control systems requiring redundant signals and environmental stability.

Conclusion

The Sealed Dual-Circuit Miniature Micro Switch meets the requirements of compact device installation, while its dual-signal redundant output reduces the risk of system failure. With its high mechanical lifespan, stable contact performance, and long-term environmental reliability, this product has become a key component in high-reliability control systems in automotive electronics and micro-current home appliances.

While continuing to refine sealing structures and dual-circuit designs, micro switch manufacturers can also develop more types of DPDT micro switches, such as three-circuit miniature micro switches, to meet the diverse product demands and challenges in the international market.
