What Is a Seat Belt Reminder Switch and How Does It Work？

With continuous advancements in in-vehicle safety technology, modern cars no longer rely solely on robust body structures and airbags to protect drivers and passengers. They also utilize more intelligent systems to reduce accident injuries. Among these, the Seat Belt Reminder System (SBR) reduces the risk of accidents caused by unfastened seat belts by reminding drivers and passengers to fasten their seat belts.

As a core component of this system, the seat belt reminder switch plays a crucial role. This article will help readers understand the working principle and mechanism of the seat belt reminder switch, and how it ensures the smooth operation of the vehicle's safety systems.

What is a Seat Belt Reminder Switch? Basic Definition and Functional Description

Definition of Seat Belt Reminder Switch

A seat belt reminder switch is a switch used to detect the status of seat belts in a vehicle, typically installed in the vehicle's seating system. It monitors the position of the seat belt buckle and sends a signal to the vehicle's control system indicating whether the seat belt is fastened. This signal directly affects the operation of the seat belt reminder system. In simple terms, its function is to determine whether the driver or passenger has fastened their seat belt and transmit this status to the vehicle's control module to trigger appropriate alarms or reminders.

Relationship between Seat belt Reminder Switch, Seat belt Buckle, and Seat System

The seat belt reminder switch typically works closely with the seat belt buckle and seat system. When the seat belt is fastened, the switch is activated and sends a signal to the vehicle's control system indicating that the seat belt is secured. When the seat belt is not fastened, the switch remains off, triggering a reminder signal. This design ensures that the seat belt reminder system can effectively activate in critical moments, reducing accidents caused by not wearing a seat belt.

Structural Components of a Seat Belt Reminder Switch

Contact System and Micro switch Design

A seat belt reminder switch typically consists of multiple contacts and a micro switch. The contact system usually includes moving and stationary contacts, which open and close according to the seat belt status. When the latch is inserted into the buckle, the contacts close, completing signal transmission; when the latch is not inserted, the contacts remain open, and the system cannot receive the "seat belt fastened" signal.

The micro switch inside the seat belt reminder switch employs a snap-action mechanism to ensure accurate signal transmission. This mechanism can switch contact states at a very high speed and with high consistency, preventing signal jitter and instability, and ensuring timely and error-free system response.

Actuator and Mechanical Linkage

The mechanical transmission relationship between the seat belt latch and the switch actuator is also crucial. Typically, when the latch is inserted into the buckle, it drives the switching mechanism inside the seat belt reminder switch through a certain mechanical means. This physical action not only determines the working state of the switch, but also ensures the switching and feedback of the contacts.

How the Seat Belt Reminder Switch Works

Signal Logic in the Unfastened Seat Belt State

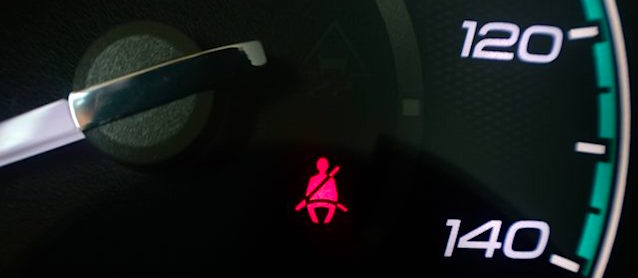

When the vehicle is running, if the seat belt latch is not in an available position and is not inserted into the buckle, the seat belt reminder switch is in the default "unfastened seat belt" state. In this state, the contacts remain open, and the signal cannot be transmitted to the vehicle control system. Upon detecting this state, the vehicle control module will activate the seat belt reminder function, such as by sounding the horn or illuminating a warning light on the instrument panel, to remind the driver or passenger who is not wearing a seat belt to fasten it.

Triggering Process After the Seat Belt is Fastened

When the seat belt latch is inserted into the buckle, the contacts of the seat belt reminder switch close, and the signal is transmitted to the vehicle control module. The system confirms that the seat belt is fastened. At this time, the control system will stop the reminder operation to ensure that the vehicle's operating status meets safety requirements.

The Role of the Seat Belt Reminder Switch in Vehicle Safety Systems

Reducing False Alarms and System Misjudgments

A high-quality automotive seat belt reminder switch ensures consistent and stable trigger points, preventing situations where the alarm sounds even though the seat belt is fastened due to misoperation or unstable contacts. This stability is crucial for the overall user experience, reducing driver frustration caused by false or incorrect warnings.

Supporting Regulatory Compliance and Safety Ratings

Different countries and regions have different regulations regarding automotive safety, and the seat belt reminder switch is a fundamental component ensuring that vehicles meet relevant seat belt system regulations. It ensures the integrity of the vehicle's safety configuration, helping automakers meet global market compliance requirements.

Typical Application Scenarios of Seat Belt Reminder Switch

Front Driver Seat Belt System

The front driver is the occupant most in need of ensuring they are wearing their seat belt, making the application of a seat belt reminder switch in the front seats particularly important. It can monitor the driver's seat belt status in real time, providing timely and accurate seat belt reminders, thus enhancing the driver's safety.

Front Passenger and Rear Passenger Reminder System

Besides the front driver, seat belt reminders for rear and front passenger occupants are also crucial. With rising vehicle safety standards, modern vehicles typically have a seat belt reminder switch installed in every seat to ensure every occupant receives appropriate seat belt reminders.

Application of Multi-Seat Independent Detection

In high-end models, owners can see the seat belt status of each seat. The seat belt reminder switch plays a vital role in this multi-seat independent detection system. It accurately monitors the seat belt status of each seat and reminds occupants via indicator lights on the dashboard or an audible alert, preventing situations where someone is not wearing their seat belt.

Conclusion

The seat belt reminder switch is a core component of the seat belt reminder system, ensuring accurate detection of seat belt status and enabling the system to function properly. It not only improves vehicle safety but also significantly enhances the driving experience and reduces the risk of accidents caused by not wearing a seat belt. In the context of increasingly stringent global safety regulations, understanding the working principles of the seat belt reminder switch, meticulously designed by micro switch manufacturers, is crucial for automakers to design safer and more reliable vehicle systems.
