Why Are Micro Switches So Crucial in Modern Home Appliances?

Home appliances have become indispensable devices in modern households. Various appliances perform multiple functions such as cleaning, cooking, and temperature control. With technological advancements, modern home appliances are rapidly upgrading towards intelligence, automation, and safety. Many functions in home appliances rely on highly reliable switching components for detection and feedback.

Among numerous electronic components, the home appliance micro switch is widely used in various home appliances due to its compact structure, fast response speed, and high reliability. This article will introduce the structure, working principle, and application scenarios of the home appliance micro switch in modern home appliances, and analyze why it has become an important component in modern home appliances.

What Is a Home Appliance Micro Switch?

Basic Definition of a Home Appliance Micro Switch

A micro switch is a precision switching device that uses minute mechanical actions to trigger changes in electrical signals. Its core feature is that it converts external actions into electrical signals through a mechanical structure, thereby achieving rapid connection or disconnection of the circuit. In home appliances, when the actuator of the home appliance micro switch is triggered externally, the internal contact system quickly switches states, thereby sending a signal to the control system.

In modern home appliance control systems, micro switches typically perform the following important functions:

• Safety control: Detecting whether the device is in a safe state; otherwise, preventing its activation.
• Status detection: Detecting whether the internal structure of the device is in the correct position, preventing safety hazards caused by misalignment.
• Circuit control: Starting or stopping the device, requiring high sensitivity and rapid action.

Due to its simple structure and high stability, the micro switch has become one of the most reliable mechanical trigger switches in many home appliances.

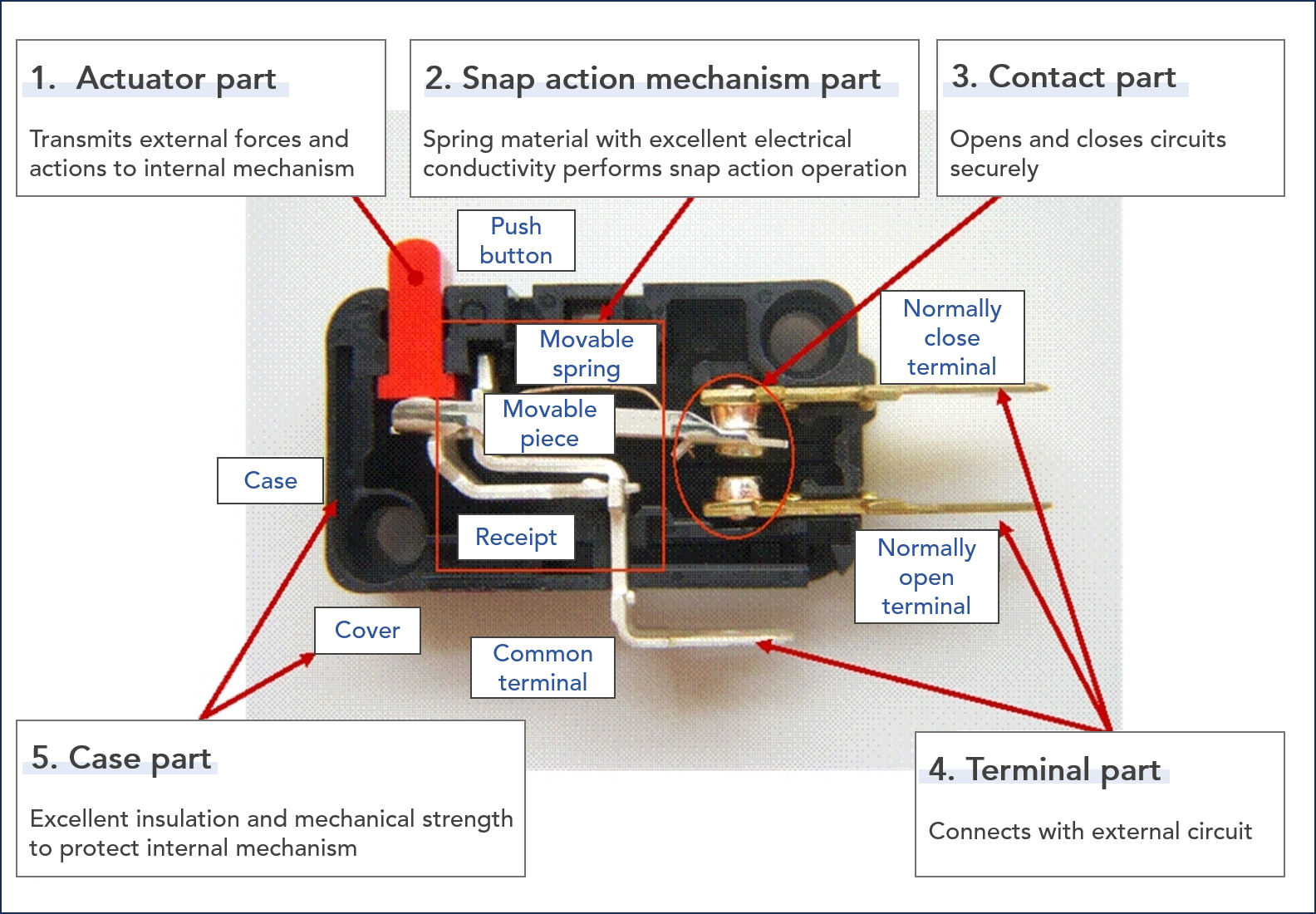

Basic Structure of a Home Appliance Micro Switch

A standard home appliance micro switch typically consists of the following core components:

Actuator:The actuator is the part of the switch that directly contacts the external mechanical structure. When the external structure generates mechanical action, the actuator is pressured and triggers the internal mechanism of the switch. Common actuator types include push-button, lever, and roller types; different actuator designs can adapt to the structural needs of different home appliances.

Snap Action Mechanism:The snap action mechanism is the core structure of the micro switch. When the actuator is subjected to external force, the spring gradually stores mechanical energy. When a critical point is reached, the spring flips instantaneously, thereby driving the contact system to switch rapidly. This snap action structure can significantly reduce contact switching time and reduce the impact of electric arc on the contacts.

Contact System:The contact system consists of moving contacts and stationary contacts. When the switch is triggered, the contacts quickly make or separate, thereby controlling the circuit's on/off state. Its materials typically employ silver alloys or gold plating to improve conductivity and wear resistance.

Terminal Structure:Terminals are used to connect to external circuits, enabling the micro switch to connect to appliance control boards, motors, or other electrical systems.

Key Features of Home Appliance Micro Switch

1. High Sensitivity Triggering

Micro switches require only a small mechanical displacement to trigger, allowing for accurate detection of various mechanical movements within the device.

2. Compact Design

Home appliance micro switches typically feature a compact design, allowing for easy installation within space-constrained appliances and avoiding overcrowding.

3. Fast Contact Switching

The fast-acting spring mechanism completes contact switching in a very short time, ensuring stable and reliable electrical signals and enhancing the overall user experience of home appliances.

4. Long Mechanical and Electrical Lifespan

High-quality micro switches typically have a mechanical lifespan of millions of cycles and stable electrical performance, making them ideal for frequently operated home appliances.

How a Home Appliance Micro Switch Works

Basic Working Principle of a Home Appliance Micro Switch

The basic working process of a home appliance micro switch typically includes the following steps:

Step 1: External Mechanical Action Triggers the Actuator

When a mechanical part of the home appliance (such as a door or button) moves, it pushes the actuator of the micro switch.

Step 2: The Spring Mechanism Stores Energy and Instantly Flips

As the actuator is subjected to pressure, the internal spring gradually stores mechanical energy. When the trigger point is reached, the spring flips instantaneously.

Step 3: Contacts Close or Open the Circuit

After the spring flips, the moving contact and the stationary contact quickly make or separate, thus connecting or disconnecting the circuit.

Step 4: Sending a Signal to the Control System

Changes in the circuit state are detected by the control system, triggering the device to start, stop, or perform other functions.

This working method features fast response, stable operation, and high repeatability, meeting the requirements of most home appliances.

Common Applications of Home Appliance Micro Switch

Application of Home Appliance Micro Switch in Washing Machines

Washing machines are one of the most widely used home appliances for micro switches, primarily for the following purposes:

Door lock detection: When the washing machine door is not closed, the micro switch will not be triggered, and the device will not start. This design prevents the washing machine from running with the door open and causing safety accidents due to high-speed rotation.

Water level or structural position detection: Some washing machines also use waterproof micro switches to detect structural positions or the status of internal components to ensure stable operation.

Application of Home Appliance Micro Switches in Microwave Ovens

Microwave oven safety control systems typically consist of multiple micro switches. When the microwave door is closed, multiple micro switches are triggered; the appliance is only allowed to start after all switches have been successfully activated. If the door is not properly closed, the switches will not trigger, and the control system will prevent the microwave oven from operating to prevent microwave leakage and potential harm.

Application of Home Appliance Micro Switches in Refrigerators

In refrigerators, micro switches are primarily used to detect door status. When a user opens the refrigerator door, the micro switch is released, and the system detects that the door is open.

In addition, many refrigerators use refrigerator door switches to control the internal lighting system. The light turns on when the door is open and off when the door is closed, improving the user experience while saving energy.

Application of Home Appliance Micro Switches in Other Home Appliances

Besides large appliances, many small appliances also rely on micro switches for control. When the base or lid of an electric kettle is not properly installed, the micro switch will prevent the appliance from starting; the switch will only activate when the juicer or blender container is properly installed, allowing the appliance to operate, and so on.

Conclusion

Home appliance micro switches are an indispensable and crucial component in modern home appliance control systems. They provide stable and reliable control functions in washing machines, microwave ovens, refrigerators, and various small appliances. Their rapid response, high reliability, and long mechanical life make them a key component in ensuring the safe operation and long-term stable functioning of home appliances.

In the context of the home appliance industry's continuous development towards intelligence and high reliability, choosing a high-quality micro switch manufacturer is particularly important for device performance. Professional manufacturers not only provide stable and reliable products but also offer customized solutions based on the structural requirements of different home appliances, thereby helping home appliance manufacturers achieve higher levels of product safety and quality assurance.
