A Beginner's Guide to Keyboard Switch: Understand the Inside Structure and Work Principle

In modern keyboard design, the keyboard switch is a core component that determines the user's input experience and keyboard performance. It not only affects typing comfort, accuracy, and responsiveness, but also directly relates to the keyboard's durability and operational stability. With the continuous development of electronic devices, understanding the internal structure and working principles of keyboard switches has become particularly important. This article will take you on an in-depth analysis of the construction and working mechanism of keyboard switches to help you better understand their crucial role in the keyboard.

What is a Keyboard Switch?

Basic Definition

A keyboard switch is a core component in a keyboard input device, responsible for converting the physical action of a user pressing a keycap into an electrical signal. These signals are transmitted through circuitry and ultimately recognized by a computer or other device to complete the corresponding operation. Each keyboard key typically consists of a switch and a keycap. The switch contains multiple structural components that work together to ensure the key's responsiveness and stability.

Types of Keyboard Switches

There are various types of keyboard switches, each suitable for different usage needs based on its triggering method, tactile feedback, and sound. Common keyboard switch types include:

Blue Switch:One of the most common mechanical switches, it features a distinct tactile bump and a crisp click, suitable for users who enjoy tactile feedback. However, it's relatively loud and not recommended for public use; it's more suitable for gamers.

Red Switch:A linear switch with no tactile bump, offering a smooth and responsive feel, ideal for users who type for extended periods, such as programmers and typists.

Brown Switch: Known for its moderate tactile bump, actuation force, and relative quietness. It falls between the Blue and Red switches, offering less tactile bump than the Blue but more pronounced tactile feedback than the Red, and is much quieter than the Blue, making it ideal for typists.

Inductive Keyboard Switch: Utilizes inductance to trigger signals, boasting a lifespan of 80 million keystrokes or more and a high-precision triggering mechanism, suitable for professional equipment requiring long lifespans.

Polar Magnetic Keyboard Switch: Employs the Hall effect principle, providing sensitive key feedback and noiseless operation, suitable for environments requiring high precision. Furthermore, its ability to adjust trigger travel and its unique fast-fire mechanism have made it popular among esports gamers.

These different types of switches each have their own advantages and disadvantages, allowing users to choose the most suitable keyboard switch based on their typing needs, work environment, and comfort.

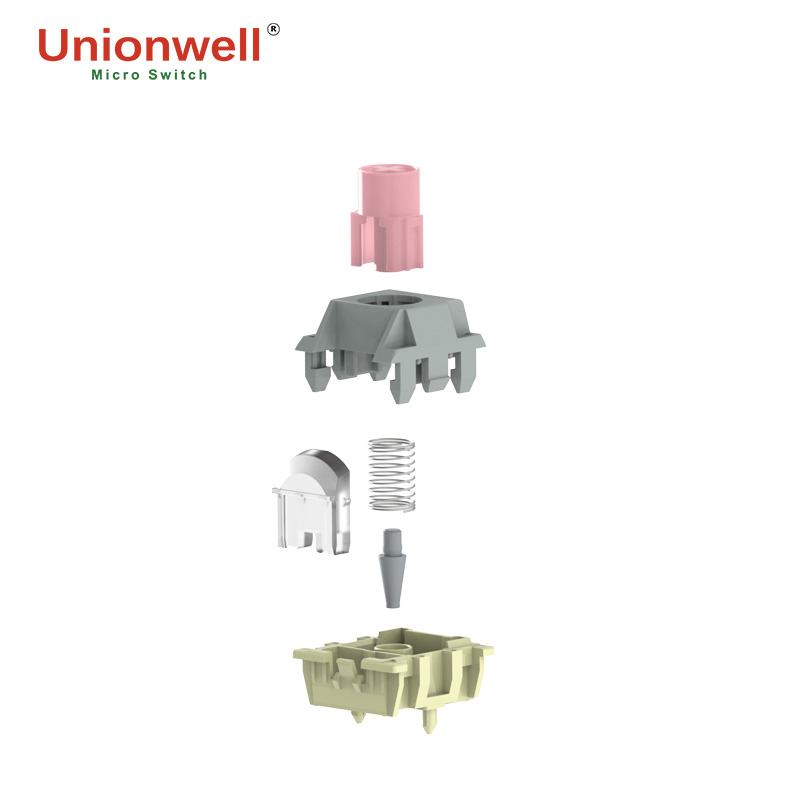

Internal Structure of Keyboard Switches

Housing and Stand

The housing of a keyboard switch is usually made of plastic. It not only protects the internal contact system but also resists external environmental interference such as dust, liquids, or vibration. The housing design typically has protective functions, effectively preventing external factors from affecting the switch's operation.

Contact System

The contact system is the core component of a keyboard switch. It usually consists of a moving contact and a stationary contact. When the user presses a key, the moving contact makes contact with the stationary contact, thus closing the circuit and generating a signal output. The contact method of the contacts can be adjusted through different triggering mechanisms (such as "mechanical triggering" or "Hall effect"). The cooperation between the moving and stationary contacts determines the response speed and triggering accuracy of the keyboard switch.

Spring

The spring is a very important component in a keyboard switch. It controls the rebound force of the key and determines the actuation force of the key. Generally, the design and material of the spring determine the key's pressing force and feedback. Different springs provide different key response feels; softer springs are suitable for a comfortable typing experience, while stiffer springs are suitable for high-precision operation.

Keyboard Stem Design and Stability

The key switch is a crucial component that holds the contacts, springs, and other parts together. It is typically made of high-strength plastic or alloy materials, offering excellent durability and stability. The key switch design has a decisive impact on the performance of the keyboard switches, especially in terms of key bounce, tactile feedback, and long-term stability. The shape and material of the key switch also directly affect the stability and durability of the keys.

How Keyboard Switches Work

Pressing Action and Signal Transmission

When a user presses a key, the spring is compressed, the moving contact makes contact with the stationary contact, and the circuit is closed. In this process, the keyboard switch's contact system completes the mechanical-to-electrical conversion, generating an electrical signal and transmitting it to the computer or device. When the user releases the key, the spring quickly returns to its original state, the contact opens, and the signal stops.

Triggering Method and Feedback Mechanism

Different types of keyboard switches have different triggering methods. For example, linear switches provide a smooth keystroke experience without tactile feedback; while tactile switches provide a clear feedback point, allowing the user to feel the trigger timing when pressing the key. The feedback mechanism is crucial to the user experience, affecting typing comfort and accuracy. Different feedback mechanisms suit different users, and which is more preferred requires user experience.

Current Control in Keyboard Switches

Current flows when the contacts are closed, forming the conduction of an electrical signal. To ensure signal accuracy, keyboard switches need stable current control capabilities. The design must avoid potential interference in the circuit to ensure stable current transmission, thereby guaranteeing input accuracy.

How Keyboard Switches Improve Keyboard Performance

Enhancing Input Precision and Response Speed

The precise triggering mechanism of keyboard switches makes user input more sensitive. Through a well-designed contact system, the keyboard can quickly respond to every keystroke, reducing accidental presses and significantly improving typing and gaming accuracy and efficiency. Gamers, in particular, value response speed, and the rapid triggering of keyboard switches effectively reduces input latency.

Durability and Stability

High-quality keyboard switches can withstand tens of millions of keystrokes without performance degradation, meaning users can still enjoy a stable operating experience after years of use. The durability of keyboard switches ensures consistent key feedback during extended typing sessions, preventing stuttering or malfunctions.

How to Choose the Right Keyboard Switch

When choosing the right keyboard switch, users need to consider several factors, including key response speed, feel, pressure point, and switch lifespan. Different needs may require different switches. For example, office users may prefer quiet, comfortable operation, while gamers may prioritize fast response and high feedback. Understanding the structure and working principles of keyboard switches helps in making a better choice.

FAQ

Q1: Will the type of keyboard switch affect my typing speed?

A1: Yes, different types of keyboard switches have different trigger mechanisms, response speeds, and feedback methods, which directly affect typing speed and accuracy.

Q2: Are there specific lifespan limits for keyboard switches?

A2: Each keyboard switch has a limited lifespan, typically tens of millions of keystrokes. Choosing a high-quality switch ensures more stable use over a longer period.

Q3: What does the actuation force of a keyboard switch mean?

A3: Actuation force refers to the pressure required to actuate the key. Lower actuation force is suitable for easy typing, while higher actuation force better prevents accidental keystrokes.

Q4: Can I customize the feel and feedback of my keyboard switches?

A4: Yes, different keyboard switches offer various feel options, such as linear, tactile, or echo feedback, which can be selected according to individual needs.

Q5: Why does the design of keyboard switches affect the gaming experience?

A5: The trigger speed and feedback mechanism of keyboard switches can affect the responsiveness of actions in games. Faster response times can improve game performance.

Conclusion

Having understood the structure and working principle of keyboard switches, we can see their decisive impact on keyboard performance, comfort, and durability. Whether you're an office user or a gamer, choosing the right keyboard switches can improve your typing experience and operational precision. Understanding how these switches work helps consumers make more informed decisions, selecting the products best suited to their needs from keyboard switch manufacturers, thereby enhancing the overall user experience.
