How a Push Button Switch Improves Automotive Reading Light Performance

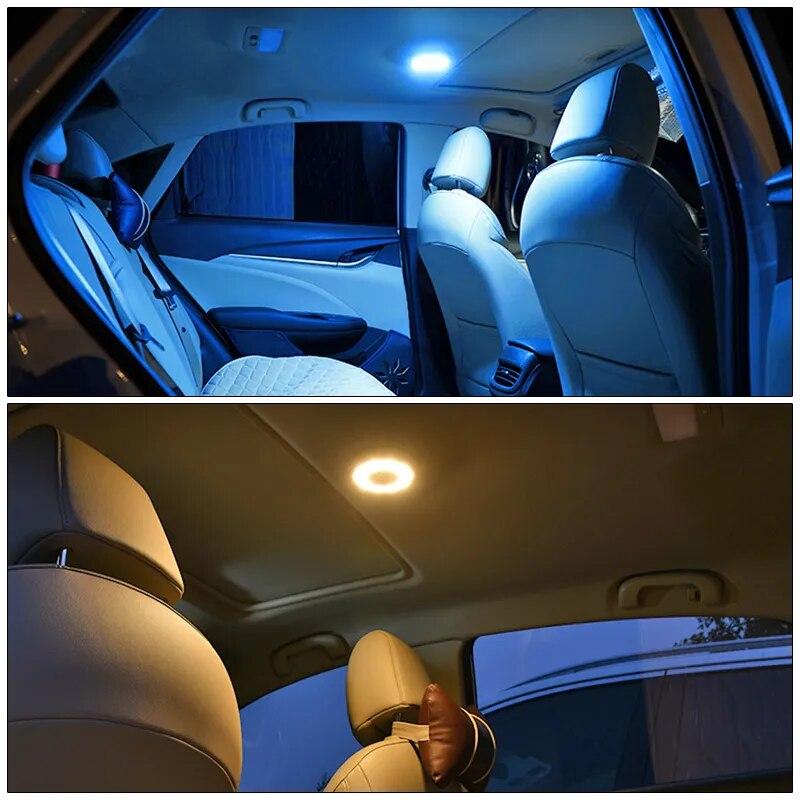

In modern automobiles, interior lighting systems are a crucial component directly impacting user experience. Among these, automotive reading lights, as lighting devices, primarily serve scenarios such as nighttime reading, passenger use, and creating an ambiance within the vehicle. Therefore, their control methods must possess characteristics such as rapid response, ease of operation, and stable reliability.

In this context, push button switches are widely used in automotive reading light systems. They not only perform the basic function of turning lights on and off but also directly affect the user's tactile feedback. This article will delve into the basic definition, design features, working principle, and practical applications of push button switches in automotive reading lights, analyzing how they can optimize the performance of automotive reading light systems.

What Is a Push Button Switch?

A push button switch is a control element that connects or disconnects a circuit through a pressing action. Its core principle is to convert mechanical action into an electrical signal, thereby controlling the on/off state of the circuit. In automotive electronic systems, this type of switch is typically used in control scenarios requiring frequent operation and high response speed.

Compared to other switches, push button switches are more direct in their operation; users can control them simply by pressing. Meanwhile, its internal structure is relatively stable and not easily affected by external interference, thus offering a significant advantage in reliability.

Key Design Features of Push Button Switch for Automotive Reading Lights

Size Advantage

As the automotive micro switch, it features a miniaturized design of only 13.60mm × 14.60mm, allowing for easy integration into roof control modules or reading light assemblies. In the modern automotive trend towards light-weighting and integration, the push button switch optimizes internal space layout while reducing interference with other components.

Functional Mode Diversity

The push button switch supports both locking and unlocking modes: in locking mode, a single press maintains the switch, suitable for always-on or always-off reading light scenarios; in unlocking mode, continuous pressing is required to maintain power, making it more suitable for special control logic. This allows it to adapt to different vehicle models and design needs, meeting diverse designer requirements.

Wide Operating Temperature Range

The push button switch can operate in temperatures ranging from -40℃ to +85℃, enabling it to withstand extreme automotive environments. Whether in cold regions or under intense sunlight, the switch maintains stable performance.

These design features work together to enable the push button switch in automotive reading light systems not only to perform basic control functions but also to significantly improve system reliability and user experience.

How Does a Push Button Switch Work in Automotive Reading Lights

Working Principle of Push Button Switch

The push button switch works by mechanically triggering a circuit change upon pressing. When the user presses the button, the internal contacts close, the circuit is completed, and the reading light illuminates; when pressed again, the contacts open, the circuit is interrupted, and the light turns off. This direct control method reduces intermediate links in signal transmission, making the system response faster.

Mechanical Structure of Push Button Switch

Structurally, a push button switch mainly consists of a button assembly, a spring system, and a contact structure. The button assembly receives external input; the spring system deforms during pressing and achieves rapid action when a critical point is reached; the contact structure is responsible for the actual circuit connection. This spring-based snap-action structure ensures that the contacts switch in a very short time, avoiding poor contact or arcing problems, thereby improving switch lifespan.

Signal Control Logic of Push Button Switch

In automotive reading light systems, push button switches typically serve as the input for control signals. When a user presses the switch, the signal is transmitted to the control module or directly drives the light circuit, turning the lights on or off. In some systems, this switch is also linked to the vehicle's control module to achieve functions such as delayed shutdown or brightness adjustment.

Why Push Button Switch Improves Automotive Reading Light Performance

From a user experience perspective, push button switches offer an intuitive and efficient operating method. Users can control the lights without complex operations and clearly perceive the operating status, thus reducing the occurrence of misoperations, which is particularly important for safety in a driving environment.

From a response speed perspective, its precise mechanical triggering mechanism allows the lights to respond almost instantly, avoiding the inconvenience caused by delays and ensuring accurate execution of every operation, greatly improving the user experience.

From a structural design perspective, push button switches employ a mature and stable mechanical structure that can withstand a large number of repetitive operations without performance degradation. This is especially crucial for high-frequency reading light systems, greatly avoiding malfunctions that may result from frequent use.

In addition, its small size allows it to be more flexibly integrated into different models, which not only has a significant advantage in terms of space utilization, but also improves the consistency and aesthetics of the overall design, making it easier for engineers to design the location of wiring and components in the vehicle, and providing more design space for other functional modules.

FAQ

Q1. Why is a push button switch suitable for automotive reading lights?

A1. Because of its small size, ease of operation, and rapid response, it enhances the user experience.

Q2. What is the difference between the locking and unlocking modes of a push button switch?

A2. In locking mode, a single press maintains the state; in unlocking mode, continuous pressing is required to maintain power.

Q3. Does the size of the push button switch affect automotive design?

A3. Yes, a smaller size makes it easier to integrate within limited space, which is beneficial for interior design optimization.

Q4. Why is the operating temperature range of a push button switch important?

A4. The temperature difference inside a car is large; a wide temperature range ensures stable operation of the switch in different climates.

Q5. What are the symptoms if a push button switch malfunctions?

A5. It may cause the reading lights to fail to turn on, fail to turn off, or have unstable responses.

Conclusion

In summary, the push button switch not only performs basic control functions in automotive reading light systems but also plays a crucial role in improving system performance. Its miniaturized design allows it to adapt to complex vehicle interior structures, its rapid response ensures immediate lighting control, and its stable and reliable mechanical structure guarantees long-term use.

As modern automobiles continue to evolve towards intelligence and high quality, push button switches have become an indispensable key component. For automakers, choosing push button switches designed by micro switch manufacturers not only improves product performance but also enhances the user experience, thus gaining a competitive edge in the market.
