Key Benefits of Using a Miniature Micro Switch in Automotive Door Locks

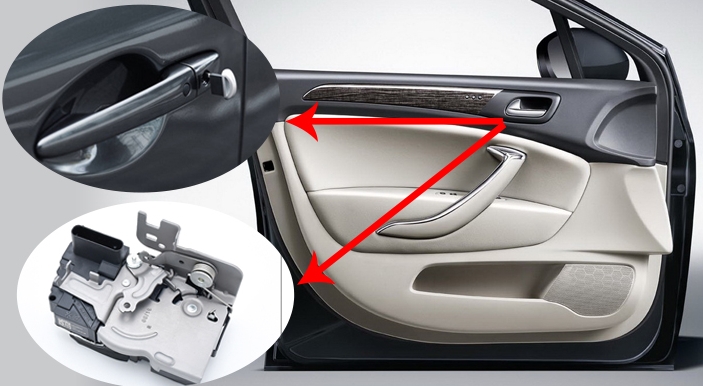

Automotive door lock systems are one of the most fundamental components. With the widespread adoption of electric door locks, smart door locks, and key-less entry systems in passenger and commercial vehicles, door locks have evolved into complex systems with highly coupled mechanical, electronic, and software logic.

In this process, the system's ability to determine whether the door lock status is truly in place directly impacts the vehicle's security, reliability, and user trust. Therefore, miniature micro switches have become an indispensable key component in automotive door lock systems. This article will delve into the core value brought by using miniature micro switches, focusing on the real-world operating conditions and system logic of automotive door locks.

Why Automotive Door Lock Systems Need Miniature Micro Switches

Modern automotive door locks are not simply about "locking and unlocking." In practical applications, door lock systems need to continuously provide accurate, stable, and repeatable status signals to the vehicle control system to support higher-level control logic.

Requirements for Accuracy and Stability of Automotive Door Lock System Status Detection

In the vehicle architecture, door lock status is often invoked simultaneously by multiple systems, such as the Body Control Module (BCM), anti-theft system, key-less entry system, and instrument cluster indicator system. These systems do not rely on "guessing" or "delayed judgment," but require a clear physical status confirmation signal.

Inaccurate door lock status detection can lead to problems such as a door being unlocked but the system indicating it is locked, false alarms about doors not being closed while driving, and key-less entry system malfunctions.

The Importance of "Confirmation Signal" in Door Lock Control

"Confirmation" is not simply detecting whether the actuator has moved, but rather determining whether the latch and bolt are truly in their designed positions. This is a typical mechanical status detection problem that requires reliable physical triggering.

The miniature micro switch is the component that plays this "final confirmation" role. By directly contacting the latch, lever, or linkage mechanism, it converts the actual mechanical state into a stable electrical signal, providing a reliable input to the upper-level control logic.

Functional Role of the Miniature Micro Switch in Door Lock Systems

In automotive door lock systems, the miniature micro switch is essentially a physical state detection switch, not an actuator. It is typically used to detect the following states:

• Whether the bolt is fully extended, providing immediate confirmation of the status;
• Whether the latch has reached the locking position, completing the locking action;
• Whether the actuator has completed a full action, checking for any abnormal jamming, etc.

These signals are input to the Body Control Module (BCM) via wiring harness, becoming the basis for the vehicle's door lock status determination. The micro switch is directly triggered by the mechanical structure, offering advantages such as clear status indication, simple logic, and strong anti-interference capabilities, making it particularly suitable for high-frequency, long-term use mechanisms like door locks.

Signal Relationship with the Body Control Module (BCM)

The BCM is not concerned with the internal structural details of the door lock; it only requires a reliable "yes/no" signal. The miniature micro switch is the key interface connecting the mechanical world and the electronic control world, providing crucial information transmission to the BCM and is an indispensable component.

Space and Structural Advantages of Miniature Micro Switches

Miniaturization and High Integration Advantages of Miniature Micro Switches

As the integration level of car doors continues to increase, door lock modules need to integrate motors, gears, linkages, sensors, and wiring harnesses within a limited space. Any component that is too large will significantly increase the difficulty of structural design.

Therefore, the miniaturized design of miniature micro switches allows engineers to flexibly arrange detection points without changing the overall door lock structure, thereby increasing the freedom of system design. Its compact size allows it to be installed in special locations such as the side wall of the lock body, near the internal lever, or at the end of the actuator's stroke, which provides possibilities for multi-state detection and redundant design. At the same time, a door lock module often needs to detect multiple states. The size advantage of miniature micro switches makes multi-switch combinations a feasible solution.

The Significance of Installation Flexibility for Automotive Door Lock Design

Miniature micro switches typically support multiple installation orientations and can be paired with different types of actuator arms or buttons, making them easy to adapt to different door lock structures. Whether it's a linear push, rotary trigger, or lever amplification structure, stable triggering can be achieved through proper design. This miniaturized design, adaptable to different door lock structures, makes it suitable for both traditional mechanical door locks and the complex needs of smart electric door locks.

Miniature Micro Switch Enhances Door Lock System Reliability

Automotive door locks often withstand tens or even hundreds of thousands of opening and closing actions throughout the vehicle's lifespan. This is a rigorous test for any status detection component. A single switch failure can lead to repeated alarms, inability to unlock, or user complaints, negatively impacting the brand. Therefore, its various performance parameters are crucial considerations.

Consistent Repeated Actions and Long Lifespan Advantages

High-quality miniature micro switches possess clear action points and rebound characteristics, maintaining consistent triggering behavior over long-term use. Stable lifespan means the door lock system requires minimal maintenance or replacement throughout the vehicle's lifespan.

Furthermore, issues such as false alarms and inability to recognize locking status can be effectively avoided through the micro switch's snap-action design. Clearly defined action travel and hysteresis control enable the system to accurately distinguish between "in-position" and "out-of-position" states. Preventing misjudgments, false locks, and false alarms is especially important for smart door locks and key-less systems.

The Value of the Miniature Micro Switch to Automotive Door Lock Security

If the system misjudges the door lock status, the doors may not be fully locked while the vehicle is in motion, posing a serious security risk. Both the vehicle's locking logic and anti-theft systems heavily rely on the accuracy of the door lock status signal.

Preventing System Misjudgments of Incomplete Door Lock Position

The miniature micro switch can detect whether the latch has truly reached its designed position, avoiding the hidden danger of "motor action completed but mechanical not in place." This is especially crucial in preventing security risks while the vehicle is in motion, particularly in child safety locks and automatic door locking functions.

Its Role in Smart Door Locks and Key-less Systems

In key-less entry and automatic locking logic, the accurate status signal provided by the micro switch is a prerequisite for the system to make correct decisions. Its reliable status detection helps improve the overall security level of the door lock system and is the foundation of intelligence.

How the Structural Design of the Miniature Micro Switch Supports Automotive Applications

The interior of a car door is constantly exposed to vibration, temperature changes, and a certain level of humidity, which places higher demands on the structure of the micro switch. Its snap-action structure ensures crisp and clean signal switching, reducing jitter and intermediate states. Furthermore, high-quality contact materials effectively reduce contact resistance and improve long-term stability.

The Importance of Sealing and Environmental Resistance

Dustproof and moisture-proof design helps the IP67 micro switch operate stably in the door environment for extended periods. A good sealing structure significantly reduces the impact of environmental factors on performance, ensuring the durability of the door lock system.
