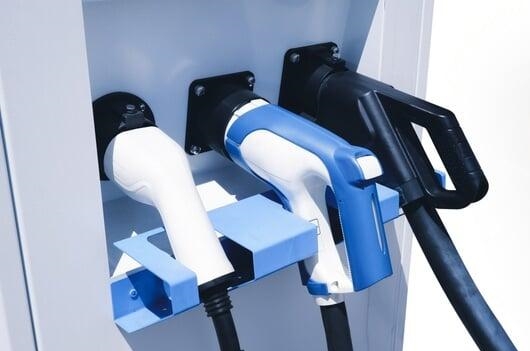

Motor Electronic Lock Switch Applications in Automotive Charging Gun Lock Systems

With the rapid development of new energy vehicles and charging infrastructure, the safety and reliability of the EV charging gun, as the connecting component between electric vehicles and charging piles, are receiving increasing attention. It needs to possess reliable locking, anti-accidental disconnection, and status feedback capabilities to ensure a safe and stable charging process. An accidental disconnection during charging can not only cause arcing risks but also affect equipment lifespan and user safety.

Therefore, the locking system has become one of the key modules in the design of the charging gun. In this system, the motor electronic lock micro switch, as a key detection and control element, is widely used in electronic lock structures to realize locking status recognition, position feedback, and safety linkage control. This article will focus on an in-depth analysis of the application of the motor electronic lock micro switch in the EV charging gun locking system.

What Is a Motor Electronic Lock Micro Switch?

A motor electronic lock micro switch is a micro switch used in a motor-driven locking structure. It is mainly used to detect changes in the position of the mechanical lock mechanism and convert mechanical actions into electrical signal outputs. It is usually used in conjunction with a motor, gear set, latch mechanism, and control board to form a complete electronic lock control system.

Structurally, it typically includes a contact system, spring mechanism, actuator, housing, and terminal interface. Its core principle is that the displacement of an external mechanical structure (e.g., the advance or retraction of the locking tongue) triggers a quick-acting mechanism inside the switch, thereby opening or closing the circuit. In practical applications, this switch acts as a signal input element, feeding back the locking state to the control board, which then determines the next action (such as allowing charging or performing unlocking).

Motor Electronic Lock Micro Switch Applications in Charging Gun Systems

The application of a motor electronic lock micro switch throughout the entire locking and unlocking process within the charging gun's internal structure is one of the core nodes for achieving intelligent control.

Electronic Lock Mechanism Integration

The charging gun is equipped with a motor-driven locking mechanism. The motor drives the locking tongue to move via gears or a lead screw, achieving automatic locking after insertion and automatic unlocking after charging is complete. The motor electronic lock micro switch is installed along the locking tongue's movement path or at a key position. When the locking tongue reaches a preset position, it is triggered, sending a "locked" or "unlocked" signal to the control system.

Unlock Feedback Signal

After an unlocking action is performed by the user or under system control, the switch provides a clear feedback signal to notify the control system that the locking mechanism has been fully released. Only after confirming unlocking is complete will the system allow the user to remove the charging gun, thus preventing damage caused by forcibly removing it while it is partially locked. This is crucial for improving the user experience, ensuring a smooth and safe operation.

Charging Authorization Control

Before power is supplied, the charging system must confirm a stable connection and reliable locking. The system only allows the high-voltage circuit to close and charging to begin after the motor electronic lock micro switch detects that the latch is fully locked. If no valid locking signal is detected, the system will disable power supply, preventing safety risks at the source.

End-of-Charge Release Control

After charging is complete, the system needs to execute an unlocking procedure to allow the user to safely remove the charging gun. At this time, the control system will drive the motor in reverse to release the locking state. Only after the switch confirms that the latch is fully returned to its original position will the system allow the user to operate, ensuring closed-loop control throughout the entire charging cycle.

Why Charging Gun Lock Systems Need a Motor Electronic Lock Micro Switch

Lock Position Detection with a Motor Electronic Lock Micro Switch

Lock position detection is one of the core functions. The switch accurately determines whether the bolt has reached the predetermined position and feeds the status back to the control system. This detection method has high accuracy and repeatability, and compared to pure software judgment or current detection, it can better avoid false judgments.

Prevent Accidental Unplugging

During charging, if the charging gun is accidentally pulled out, it may cause arcing, damage to electrical connections, or even safety accidents. Through the cooperation of the locking mechanism and the micro switch, the charging gun can effectively prevent accidental unplugging. Only after the system confirms power failure and unlocking can the user pull out the charging gun, thus forming a complete safety protection mechanism.

Safety Interlock Control

Safety interlocking is one of the core logic in charging system design. The motor electronic lock micro switch provides key input signals, enabling the system to implement control logic such as prohibiting power supply when unlocked, interrupting charging when locking is abnormal, and mandatory protection in fault conditions. This is an important foundation for ensuring user safety and reliable equipment operation.

Technical Requirements for Motor Electronic Lock Micro Switch in Charging Guns

1. Charging guns are often used in outdoor environments, facing complex factors such as rain, dust, and mud. Therefore, the switch must have excellent protection capabilities, requiring an IP54 or higher rating to ensure long-term stable operation.
2. New energy vehicles are used globally, with significant temperature variations. The switch must be adaptable to operating environments ranging from -40℃ to +85℃ and maintain stable performance under extreme temperatures.
3. Although the micro switch primarily transmits signals, its electrical stability is still crucial. It requires low contact resistance, good continuity consistency, and anti-interference capabilities to ensure accurate signal transmission.
4. During locking and unlocking, the switch must provide clear and jitter-free signal feedback. Any delay or false triggering may affect system judgment and thus the charging process.
5. Charging guns are high-frequency used devices, especially in public charging stations, where the daily usage is high. Therefore, the micro switch must have a long mechanical life to meet long-term usage requirements and reduce maintenance costs.

Why is it necessary to choose a professional micro switch manufacturer?

For charging gun manufacturers, selecting a suitable micro switch supplier is not only a procurement decision but also a crucial aspect of quality and brand risk management:

1. Professional manufacturers possess mature R&D systems and production experience, enabling them to provide targeted solutions based on application scenarios, not just standard products.
2. New energy vehicle-related products have extremely high reliability requirements. Professional suppliers can provide products that meet automotive-grade standards such as IATF 16949, demonstrating higher levels of expertise in material selection, manufacturing processes, and testing procedures.
3. Different charging gun structures have varying requirements for switch size, triggering methods, terminal types, and installation methods. Suppliers with extensive product lines and customization capabilities can better meet project needs.
4. With the globalization of the new energy vehicle industry, supply chain stability has become paramount. Manufacturers with global supply capabilities can support customers' business expansion in different markets.

Conclusion

In new energy vehicle charging systems, the safety and reliability of the charging gun locking structure are crucial, and the motor electronic lock micro switch is a core component for achieving accurate detection and safe control. From locking detection to security interlocks, from charging authorization to unlocking control, these automotive micro switches play an irreplaceable role.

For manufacturers, choosing a professional micro switch supplier not only ensures stable product performance but also establishes a stronger product advantage in fierce market competition, thereby creating safer, more durable, and more competitive charging devices.
