Model No: G606-200K19DU

DPDT Miniature Micro Switch For Industrial Control G606 Series

Model Number:G606
Max. Current:6A
Max. Voltage:125/250VAC
Operating Temperature:-40+125°C
Electrical life:50,000~100,000 cycles
Mechanical life:500,000 cycles
Function/circuit:DPDT (DPDT-NO)
Lever type:with or without lever available
Color:Black
Operating force:200gf max w/ lever (light or heavy for option)
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:Solder terminals

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The G606 Series Miniature Micro Switch for Industrial Control is a DPDT miniature micro switch specifically designed for complex industrial control applications, particularly suitable for automated equipment requiring simultaneous switching of multiple circuits. Its dual-break structure allows for simultaneous switching of two circuits in a single operation, significantly improving the stability and safety of the control system. Whether in industrial robot joint position detection, limit control of automated conveyor lines, or stroke judgment of precision machining equipment, this switch provides fast and accurate response. It operates in temperatures ranging from -40℃ to +125℃ and has a mechanical life of up to 500,000 cycles, maintaining excellent reliability even under high-frequency operations and complex conditions.

As a micro switch for industrial, the G606 Series can be widely applied in PLC control devices, automated inspection equipment, and packaging machinery. Its electrical life reaches 50,000 to 100,000 cycles, suitable for control nodes with high-precision signal triggering and frequent operations. Meanwhile, the switch boasts a humidity resistance of 85%RH Max, ensuring stable operation in environments with high humidity, vibration, and significant load fluctuations. It is less prone to false triggering or drift, thus ensuring the continuity and safety of production line operations.

The G606 series is also a miniature micro switch suitable for space-constrained equipment. It can be easily integrated into automated actuators, robotic end effector modules, small motion control devices, and safety interlocking structures, providing durable, sensitive, and consistent performance for industrial systems. As a product meticulously designed by the micro switch manufacturer, the G606 series micro switches aim to provide industrial control users with a more reliable, longer-lasting, and more stable precision switching solution.

Feature

◆ Compact size and structure
◆ Long life and high reliability
◆ Complete range of terminals
◆ Double-break switching mechanism
◆ Widely used in industrial control and other fields

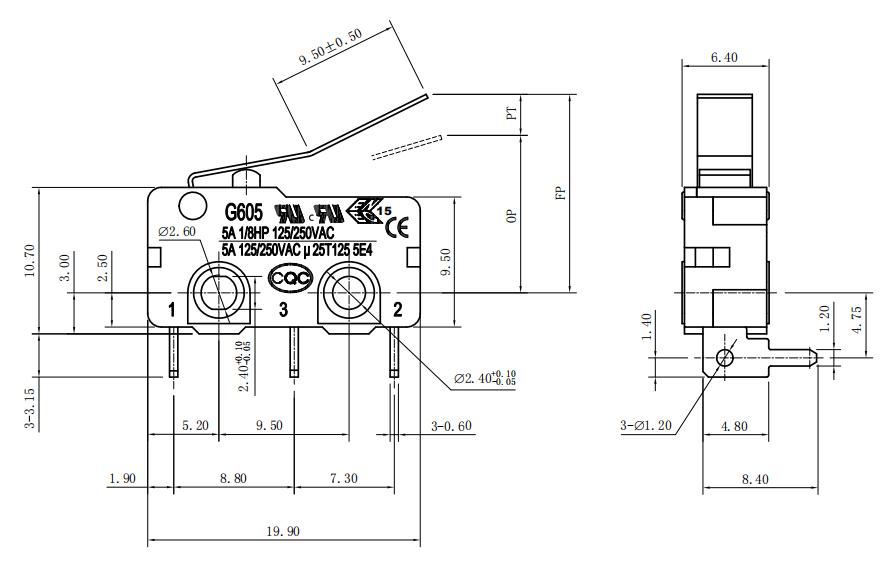

Drawing

Parameter

Rating	06	0.5A 125/250VDC
		0.5A/6A 125/250VAC, 1/4HP 250VAC
Operating Frequency	Electrical	10~30 cycles/min.
	Mechanical	120 cycles/min.
Contact resistance (initial value)		Max. 30~100mΩ (depending on type)
Insulation resistance		100MΩMin (at 500VDC)
Dielectric strength		AC 750V RMS (50~60Hz)
Operating environment temperature		-40℃~+125℃
Operating environment humidity		85%RH Max
Lifespan	Electrical	50,000~100,000 (depending on type)
	Mechanical	500,000 cycles
Unit weight		about 1.96g(Soldering terminals without handles)

Application

As a miniature micro switch designed specifically for industrial equipment, this product is suitable for a variety of precision control scenarios. Its compact structure and sensitive operation enable reliable circuit switching within limited space, making it ideal for industrial automation equipment, machine control panels, production line monitoring modules, and various electrical control systems requiring rapid response.

This series employs a double-break conversion structure, enabling synchronous switching of two independent sets of contacts in each operation, significantly improving the safety and reliability of circuit control. This structure is ideal for applications in industrial environments with high requirements for electrical control precision and safety.

Furthermore, the G606 series boasts excellent mechanical life and electrical durability, with a robust structure providing stable and precise control support for automated equipment, demonstrating superior durability and operational consistency in the industrial control field.
