Model No: G605-250R26C5-T125U

G605 Air Conditioning Miniature Micro Limit Switch 125/250VAC

Model Number:G605-250R26C5-T125U
Max. Current:0.1A~5A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+125℃
Product name:5a 1/8hp 36v 10t125 micro switch
Electrical life:10,000 ~ 50,000cycles (Depend on Part No.)
Mechanical life:1,000,000cycles
Operating force:250gf max w.o lever
Terminal:Bent solder terminals
Function:SPDT
Lever type:Straight Lever
Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Color:Black
Contact Resistance:100mΩ Max

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The G605 Air Conditioning Miniature Micro Limit Switch 125/250VAC is a miniature micro switch designed specifically for air conditioning systems, playing a crucial role in air conditioners and other home appliances. This switch has an operating temperature range of -25℃ to +125℃, making it ideal for use in both high and low temperature environments within air conditioning systems.

As an SPDT micro switch, it features single-pole double-throw operation, providing high-precision triggering to ensure that air conditioning equipment is switched on and off at the appropriate time. This makes it widely applicable in various aspects of air conditioning systems, including temperature control, pressure protection, and fan starting. Whether it's compressor protection or air circulation system regulation, the G605 miniature micro switch provides stable and reliable control, ensuring efficient equipment operation.

Furthermore, the G605 Miniature Micro Switch boasts an electrical life of 50,000 cycles and a mechanical life of 1,000,000 cycles, maintaining excellent performance during prolonged use and significantly improving the lifespan and reliability of air conditioners and other home appliances. Designed by the micro switch manufacturer, this air conditioning micro switch's small size and compact design make it easy to integrate into the control systems of various air conditioning equipment, making it an ideal choice for air conditioning and other industrial automation applications.

Feature

◆Small and compact size
◆With global safety certification
◆Long life and high reliability
◆Terminal load capacity up to 10(2)A1/4HP
◆Complete terminal operating handles
◆Widely used in automotive control, home appliance control, industrial control and other fields

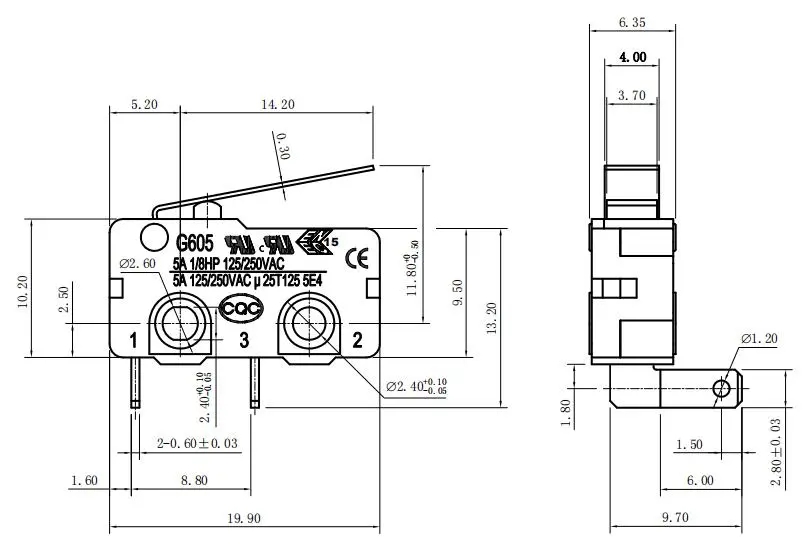

Drawing

Parameter

Rating	P1	ENEC/CQC: 0.1A 125/250VAC 0.1A 48VDC μ 25T125 5E4 UL: 0.1A 125/250VAC 0.1A 48VDC Contacts optional gold plating
	05	ENEC/CQC: 5(3)A 125/250VAC 5A 125/250VAC 5A 30VDC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC 5A 30VDC
	051/052	ENEC/CQC: 5A 125/250VAC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC
	10/101	ENEC/CQC: 10(2)A 125/250VAC μ 25T125 1E4 UL: 10.1A 125/250VAC 1/4HP 125/250VAC 10A 30VDC Note: Only applicable for operating forces above 250gf
	12	ENEC/CQC: 12(6)A 125/250VAC μ 40T125 1E4 UL: 12A 125/250VAC Note: Only applicable for operating forces 350gf
Operating frequency	electrical	10~30 cycles/min
Operating frequency	mechanical	120 cycles/min
Initial contact resistance		100mΩ Max.
Insulation resistance		100MΩ Min.(at 500VDC)
Dielectric strength	between terminal	1,000VAC 50~60Hz for 1 Min.
Dielectric strength	Between terminal and housing	1,500VAC 50~60Hz for 1 Min.
Operating environment temperature		-25℃~+125℃
Operating environment humidity		85%RH Max
Lifespan	electrical	10,000~50,000(Depend on part NO.)
Lifespan	mechanical	1,000,000 cycles

Application

This miniature switch, specifically designed for air conditioning systems, is widely used in critical components such as temperature control, compressor protection, and fan start/stop in air conditioning equipment. The switch features precise triggering capability, providing reliable on/off control during air conditioner operation to ensure normal equipment function.

Its compact design makes it ideal for installation in the confined space of an air conditioner, effectively controlling various components within the system. Through the triggering of the micro switch, the air conditioner can respond to temperature changes in real time, adjusting indoor airflow and temperature, improving user comfort .

Furthermore, this miniature micro switch has a long service life and high mechanical durability, capable of withstanding frequent operation over extended periods. It helps improve equipment reliability and extend its lifespan, making it an indispensable and crucial component of air conditioning equipment.
