Model No: G10A series
Subminiature Micro Switch for Mouse G10A Series
Model Number:G10A series
Max. Current:3A
Max. Voltage:30VDC 250VAC
Operating Temperature:-40℃~+85℃
Product Name:Electric Mouse Subminiature Micro Switch
Rating-P1:0.1A 30VDC/125VAC(Gold plated optional )
Rating-03:3A 125/250VAC
Payment Terms:T/T,Western Union,Paypal
Operating Force:150gf max.
Terminal type:Straight PCB Terminals
Lever type:long straight lever
Circuit Code:SPDT
Electrical life:10,000 cycles
Mechanical life: 1,000,000 cycles
Max. Current:3A
Max. Voltage:30VDC 250VAC
Operating Temperature:-40℃~+85℃
Product Name:Electric Mouse Subminiature Micro Switch
Rating-P1:0.1A 30VDC/125VAC(Gold plated optional )
Rating-03:3A 125/250VAC
Payment Terms:T/T,Western Union,Paypal
Operating Force:150gf max.
Terminal type:Straight PCB Terminals
Lever type:long straight lever
Circuit Code:SPDT
Electrical life:10,000 cycles
Mechanical life: 1,000,000 cycles
minimum order :
1000 pieces
Quantity :
Product Description
As a stable micro switch for mouse, the G10A Series provides fast response and low-latency triggering performance in practical applications. Whether in intense gaming, prolonged office typing, or design software environments requiring precise feedback, it maintains excellent click consistency. Its lightweight design allows for easy integration into various mouse shells and button structures, meeting the 10,000-click electrical lifespan requirement, providing a reliable operating experience and reducing click failures or feel degradation caused by component instability.
The G10A Series Subminiature Micro Switch for Mouse is a high-sensitivity subminiature micro switch specifically developed for mouse button structures, exhibiting excellent trigger accuracy and structural stability in miniaturized devices. Its operating temperature range of -40℃ to +85℃ and humidity resistance of 85%RH Max make it suitable for various desktop and mobile office environments. With a mechanical lifespan of 1,000,000 clicks and stable electrical performance, it ensures consistent feel and feedback for both left and right mouse buttons during prolonged high-frequency clicking, making it a crucial component of various office and gaming mice.
As a stable micro switch for mouse, the G10A Series provides fast response and low-latency triggering performance in practical applications. Whether in intense gaming, prolonged office typing, or design software environments requiring precise feedback, it maintains excellent click consistency. Its lightweight design allows for easy integration into various mouse shells and button structures, meeting the 10,000-click electrical lifespan requirement, providing a reliable operating experience and reducing click failures or feel degradation caused by component instability.
Meanwhile, the G10A series, meticulously designed by the micro switch manufacturer, is also considered a micro switch for electronic products. It can be used not only in mouse button mechanisms but also in button modules for small electronic devices requiring light touch triggering and high-frequency operation. Its small size, stable contact structure, and good environmental adaptability make it widely popular in the electronics industry.
Feature
◆ Compact size and structure
◆ Long lifespan and high reliability
◆ Complete range of terminal types
◆ Equipped with various types of operating handles
◆ Widely used in home appliances and industrial control fields
◆ Long lifespan and high reliability
◆ Complete range of terminal types
◆ Equipped with various types of operating handles
◆ Widely used in home appliances and industrial control fields
Parameter
| Rating | P1 | 0.1A 125/250VAC 30VDC 1E4 40T85 |
| 03 | 3A 125/250VAC 30VDC 1E4 40T85 | |
| Operating Frequency | Electrical | 10~30 cycles/min. |
| Mechanical | 120 cycles/min. | |
| Initial contact resistance | 100mΩ Max. | |
| Insulation resistance | 100MΩ Min.(at 500VDC) | |
| Dielectric strength | between terminals | 600VAC 50~60Hz for 1 Min. |
| between terminals and housing | 1,000VAC 50~60Hz for 1 Min. | |
| Operating Environmental Temperature | -40℃~+85℃ | |
| Operating Environmental Humidity | 85% RH Max. | |
| Lifespan | Electrical | 10,000 cycles |
| Mechanical | 1,000,000 cycles | |

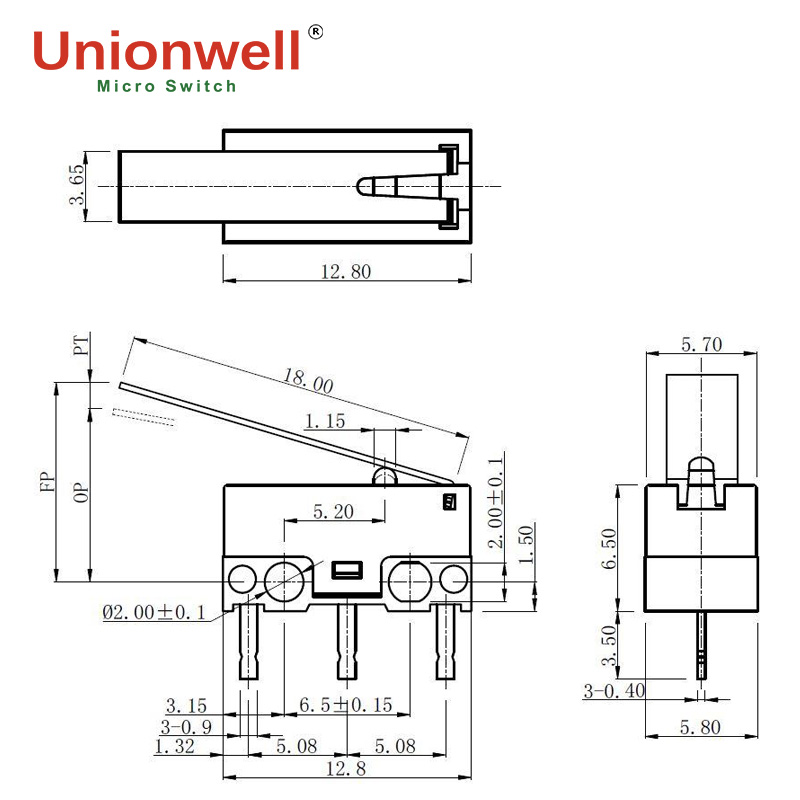

Drawing
This series of products offers different terminal types and operating levers for customers to choose from. The following drawings are for reference only:
Details View
In this details view, you can see the Internal structure of the G10A series micro switch:
Application
The G10A series boasts long lifespan and high reliability, maintaining consistent trigger force and rebound feel even under high-frequency clicking conditions. It is suitable for mice with extremely high click lifespan requirements and professional design mice. Its internal optimized contact structure reduces contact resistance fluctuations, resulting in more stable click feedback and minimizing feel degradation due to prolonged use.
As a high-performance subminiature micro switch designed specifically for computer mice, this product is widely used for its sensitive triggering characteristics and stable feel. The series of switches is compact and can be easily integrated into various office mice, gaming mice, and portable input devices, providing fast and precise response for the left and right buttons.
The G10A series boasts long lifespan and high reliability, maintaining consistent trigger force and rebound feel even under high-frequency clicking conditions. It is suitable for mice with extremely high click lifespan requirements and professional design mice. Its internal optimized contact structure reduces contact resistance fluctuations, resulting in more stable click feedback and minimizing feel degradation due to prolonged use.
