Model No: G905-200E06W2U

Unionwell waterproof 0.1A/5A 25t120 juicer micro switch with wire leads to bottom

Model Number:G905-200E06W2U
Max. Current:5A
Max. Voltage:250V
Operating Temperature:-25°C~+120°C
Protection Level:IP67
Rating:6A 125/250VAC 1E4/Gold Plated Contact Optional
Operating Frequency Electrical:10~30cycles/minute
Operating Frequency Mechanical:120cycles/minute
Contact Resistance(Initiative):100mΩMax
Insulation Resistance (at 500VDC):100M Ω Min
Dielectric Strength:AC 1,000V RMS (50~60Hz)
Storage Temperature:-25°C~+120°C
Storage Humidity:85%RH Max
Electrical life:10,000~100,000cycles/Depend on part No.
Mechanical Life:500,000cycles

minimum order :

1 piece

Quantity :

Contact Now

Product Description

The Waterproof Juicer Micro Switch with Wire Leads to Bottom is a miniature micro switch specifically designed for juicers, widely used in the home appliance industry, especially for equipment requiring high performance and long lifespan. Its IP67 waterproof and dustproof rating makes it impeccable in humid and dusty environments, extending the device's lifespan and improving safety. As a waterproof micro switch, its excellent waterproof performance makes it particularly suitable for high-humidity working environments, ensuring efficient and stable performance even during prolonged use.

Thisjuicer micro switch has an operating temperature range of -25℃ to +120℃, enabling stable operation in harsh environments, making it ideal for home appliances such as juicers. In juicers, it is responsible for precisely controlling the motor's start and stop, ensuring the device's safety and efficiency. Whether in high-temperature environments or with frequent operation, it provides reliable performance, preventing equipment failure and extending its lifespan.

Furthermore, as a high-quality home appliance micro switch meticulously designed by a micro switch manufacturer, it boasts a 50,000-cycle electrical life and a 500,000-cycle mechanical life, ensuring accurate response even after years of use. The switch features a bottom-wiring design, simplifying installation and maintenance, and is suitable for various types of home appliances, performing particularly well in juicers.

Feature

◆ Waterproof and dustproof (IP67) design
◆ Small size and compact structure
◆ Long life and high reliability
◆ Complete terminal block selection
◆ Equipped with various operating handles
◆ Widely used in automotive, home appliance, and industrial control applications

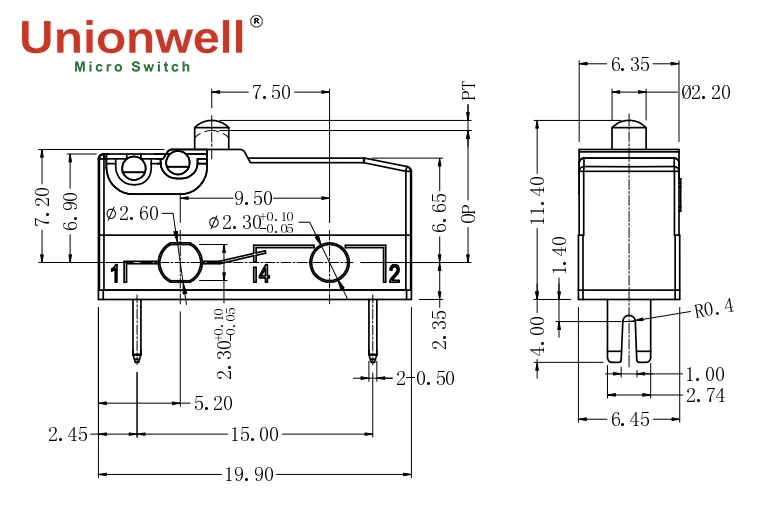

Drawing

Parameter

Rating	P1	0.1A 125/250VAC 48VDC 5E4 Contacts optional gold plating
	05	UL: 5A 125/250VAC ENEC: 6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ 25T120
Operating Frequency	electrical	12~30 cycles/min
	mechanical	120 cycles/min
Initial contact resistance		100mΩ Max（Wire type varies depending on wire length）
Insulation resistance		100MΩ Min
Dielectric strength		AC1,000V RMS(50~60Hz)
Operating environment temperature		-25℃~+120℃
Operating environment humidity		85%RH Max
Lifespan	electrical	10,000~100,000 cycles (depend on part NO.)
	mechanical	500,000 cycles

Application

This high-performance micro switch, designed specifically for juicers, boasts excellent waterproof and dustproof performance, meeting IP67 protection standards and suitable for stable operation in humid and dusty environments. Its waterproof and dustproof features ensure that during juicer use, liquid splashes or the entry of small particles will not affect normal operation, greatly improving the reliability and lifespan of the device.

In juicers, this waterproof micro switch is primarily used for precise control of the motor's start and stop. When the user starts the juicer, the micro switch ensures accurate current switching, guaranteeing safe and stable machine operation. Its stable performance effectively prevents problems such as abnormal motor starting or overheating caused by switch malfunction. Whether in a high-humidity kitchen environment or with frequent daily operation, this switch maintains long-term stable performance, meeting the high demands of modern home appliances.
