Model No: G5W11-series

Unionwell Waterproof and Dustproof IP67 Micro Switch For Cooker G5W11

Model Number:G5W11
Max. Current:10A
Max. Voltage:250VAC
Operating Temperature:-40℃~85℃
Protection Level:IP67
IP level:ip67
Electrical life:Over 20,000 -1,000,000cycles
Mechanical life:Over 500,000-1,000,000cycles
Terminal:Solder terminals or wire
Insulation Resistance:at 500VDC 100mΩMin
Rating:10A 125/250VAC
Product Name:Basic Waterproof Micro Swich
Contact Resistance:50mΩ Max
Color:Black
Material:Plastic
Certification:ENEC、UL

minimum order :

1000 pieces

Quantity :

Contact Now

Products Description

The Unionwell Waterproof and Dustproof IP67 Micro Switch for Cooker G5W11 is a basic waterproof micro switch designed specifically for kitchen appliances, particularly suitable for various control systems of kitchen stoves. This switch plays a crucial role in the kitchen environment, operating stably in high-temperature and humid conditions to ensure the safe operation of the stove. Its IP67 waterproof and dustproof rating effectively prevents the intrusion of water vapor, oil, and dust, avoiding malfunctions caused by the hot and humid kitchen environment and ensuring the switch's stability over long-term use.

As an IP67 micro switch for cookers, this switch is designed to meet the high requirements of kitchen appliances, especially for normal operation under high-temperature conditions. Its operating temperature range is -40℃ to +85℃, maintaining excellent performance even in extremely hot or cold environments. The switch has a mechanical life of 500,000 or 1,000,000 cycles, and an electrical life of 20,000 to 100,000 cycles, meaning it can reliably provide precise control of appliances for extended periods.

Furthermore, this waterproof micro switch, meticulously designed by the micro switch manufacturer, demonstrates exceptional durability in the humid and variable environment of a kitchen. With a moisture resistance of 85%RH Max, it can withstand the moisture and steam commonly found in kitchens, while its IP67 waterproof and dustproof rating further enhances the switch's long-term stability and reliability.

Feature

◆ Waterproof and dustproof design, suitable for use in wet or dusty environments.
◆ Compact design with tiny contact gaps, featuring fast response, high sensitivity, and minimal travel.
◆ Long lifespan, high precision, and minimal travel.
◆ Suitable for use in automotive, agricultural machinery, large household appliances, office equipment, and other applications requiring environmental resistance.
◆ Maximum ENEC/UL certified current up to 10A.

Parameter

Protection structure			IP67
Operating frequency			Mechanical 60 cycles/min;Electrical 10~30 cycles/min
Insulation resistance			≥100M Ω (500VDC)
Contact resistence			≥100M Ω (depend on the length of the wire)
Test Voltage	Between each terminals of the same polarity	AC1000V,50/60HZ, 1min
Test Voltage		Between current- carrying metal part and groud and between each terminal and non-current carrying metal parts	AC1500V,50/60HZ,1min
Vibration resistance			10-55HZ,1.5MM Double amplitude
Shock resistence			Destruction:OF>1.0N:1000M/s2(approx.100G)max. OF≤1.0N:400M/s2(approx.40G)max. Destruction:OF>1.0N:200M/s2(approx.20G)max. OF≤1.0N:100M/s2(approx.10G)max.



Life expectancy			Mechanical≥10,000,000 cycles or 1,000,000 cycles Electrical≥50,000 cycles or 100,000 cycles
Life expectancy
Weight			Approx. 6.2g(No lever)

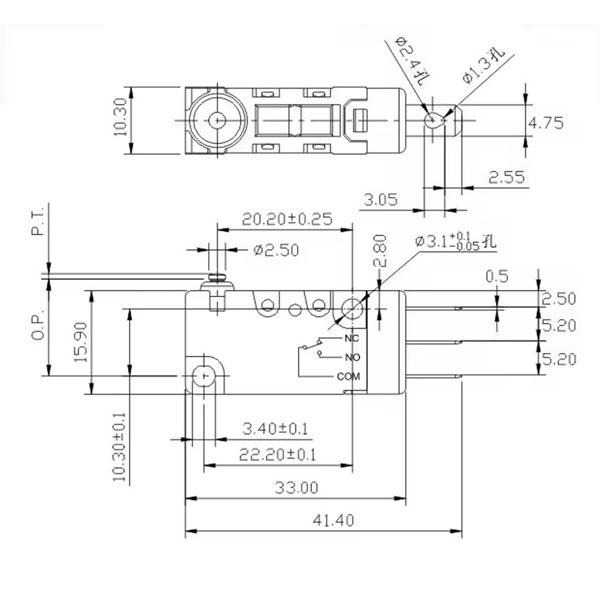

Drawing

Aplication

As a high-performance micro switch designed specifically for kitchen appliances, this product boasts superior waterproof and dustproof capabilities, achieving an IP67 protection rating. It is particularly suitable for kitchen environments that require exposure to steam, oil, heat, and humidity. The G5W11 series microswitches are widely used in the safety control systems of kitchen appliances such as rice cookers, induction cookers, and gas stoves, providing precise switching signal feedback.

The IP67 waterproof and dustproof rating of this micro switch effectively prevents the intrusion of external substances such as water vapor, oil droplets, and food residue, ensuring continuous and stable operation of the equipment in humid and greasy kitchen environments. It is not only suitable for traditional kitchen appliances but can also be widely used in other home appliances, providing efficient control solutions. With its high durability and reliability, the G5W11 is increasingly widely used in the home appliance industry, making it a trusted and ideal choice for home appliance manufacturers.
