Model No: G605-100R92AU
Unionwell miniature micro switch 16A 25T125 3pin micro switch for air conditioning
Model Number:G605-100R92AU
Max. Current:5(3)A 30VDC
Max. Voltage:125/250VAC
Operating Temperature:-25℃~+125℃
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Terminal Type:Quick connect terminals
Circuit Code:SPDT
Max Operating Force:Max. 100gf at the pin plunger
Electrical life:Over 50,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Color:Grey
Max. Current:5(3)A 30VDC
Max. Voltage:125/250VAC
Operating Temperature:-25℃~+125℃
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Terminal Type:Quick connect terminals
Circuit Code:SPDT
Max Operating Force:Max. 100gf at the pin plunger
Electrical life:Over 50,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Color:Grey
minimum order :
1000 pieces
Quantity :
Product Description
In air conditioning systems, it is typically used for damper position detection, fan control, and safety interlock functions. With an electrical life of 50,000 cycles, this air conditioning micro switch maintains stable conduction characteristics during repeated circuit switching, ensuring accurate circuit triggering and assisting the air conditioner in temperature adjustment, cooling mode switching, and other operations. Its sensitive response and high-temperature resistant structure reduce false triggering, improving the overall performance and safety of the air conditioner.
Furthermore, as a home appliance micro switch designed by a micro switch manufacturer, this product boasts reliable performance and is suitable for various mechanical and electrical signal control scenarios in home appliances. Its highly durable mechanical structure can withstand high-frequency operation, reducing maintenance needs and providing a longer lifespan for home appliances. In application, it effectively improves the operating efficiency and automation level of equipment, making it an indispensable core component in many home appliances.
The Unionwell Limit micro switch 16A 25T125 3-pin micro switch for air conditioning is a compact, highly sensitive miniature micro switch, designed for continuous operation. Its operating temperature range is -25℃ to +150℃, maintaining stable triggering performance under harsh temperature variations, making it ideal for applications requiring precise position detection and circuit control. This product boasts high durability, with a mechanical life of 1,000,000 cycles, ensuring reliable operation even under frequent operation and meeting long-term usage requirements.
In air conditioning systems, it is typically used for damper position detection, fan control, and safety interlock functions. With an electrical life of 50,000 cycles, this air conditioning micro switch maintains stable conduction characteristics during repeated circuit switching, ensuring accurate circuit triggering and assisting the air conditioner in temperature adjustment, cooling mode switching, and other operations. Its sensitive response and high-temperature resistant structure reduce false triggering, improving the overall performance and safety of the air conditioner.
Furthermore, as a home appliance micro switch designed by a micro switch manufacturer, this product boasts reliable performance and is suitable for various mechanical and electrical signal control scenarios in home appliances. Its highly durable mechanical structure can withstand high-frequency operation, reducing maintenance needs and providing a longer lifespan for home appliances. In application, it effectively improves the operating efficiency and automation level of equipment, making it an indispensable core component in many home appliances.
Feature
◆Small and compact size
◆With global safety certification
◆Long life and high reliability
◆Terminal load capacity up to 10(2)A1/4HP
◆Complete terminal operating handles
◆Widely used in automotive control, home appliance control, industrial control and other fields
◆With global safety certification
◆Long life and high reliability
◆Terminal load capacity up to 10(2)A1/4HP
◆Complete terminal operating handles
◆Widely used in automotive control, home appliance control, industrial control and other fields

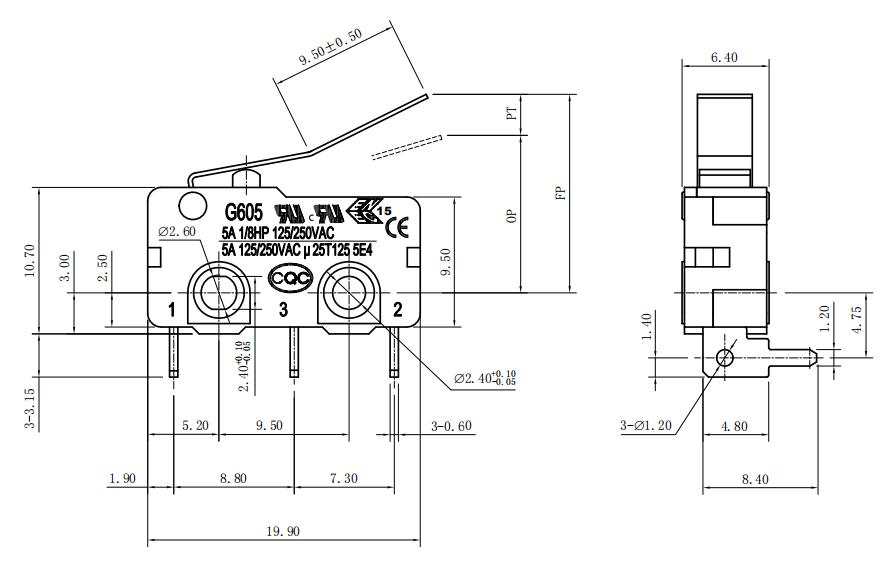

Drawing
Parameter
| Rating | P1 | ENEC/CQC: 0.1A 125/250VAC 0.1A 48VDC μ 25T125 5E4 UL: 0.1A 125/250VAC 0.1A 48VDC Gold plating is optional for the contacts. |
| 05 | ENEC/CQC: 5(3)A 125/250VAC 5A 125/250VAC 5A 30VDC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC 5A 30VDC | |
| 051/052 | ENEC/CQC: 5A 125/250VAC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC | |
| 10/101 | ENEC/CQC: 10(2)A 125/250VAC μ 25T125 1E4 UL: 10.1A 125/250VAC 1/4HP 125/250VAC 10A 30VDC Note: Only applicable to"250gf"operating force. | |
| 12 | ENEC/CQC: 12(6)A 125/250VAC μ 40T125 1E4 UL: 12A 125/250VAC Note: Only applicable to"350gf"operating force. | |
| Operating Frequency | Electrical | 10~30 cycles/min |
| Mechanical | 120 cycles/min | |
| Initial contact resistance | 100mΩ Max. | |
| Insulation resistance | 100MΩ Min.(at 500VDC) | |
| Dielectric strength | Between terminals | 1,000 VAC 50~60Hz for 1 Min. |
| Terminals and housing | 1,500 VAC 50~60Hz for 1 Min. | |
| Operating Environment temperature | -25℃~+125℃ | |
| Operating Environment humidity | 85%RH Max. | |
| Lifespan | Electrical | 10,000~50,000cycles(depend on NO.) |
| Mechanical | 1,000,000cycles | |
Application
In air conditioning equipment, this switch can be installed on dampers, compressor protection components, or temperature control mechanisms to detect component positions, start/stop signals, and safety interlock status. For example, when a damper reaches a designated position or compressor operating conditions are met, the switch instantly transmits an electrical signal, enabling the equipment to adjust its operating mode promptly, ensuring normal cooling and stable airflow distribution.
Furthermore, its stable and sensitive mechanical structure allows it to maintain consistent performance in long-term air conditioning operation, contributing to efficient control and extended service life. It is one of the commonly used key micro-switch components in air conditioning systems.
This is a compact and highly responsive miniature micro switch primarily used in air conditioning systems for position detection and status control.
In air conditioning equipment, this switch can be installed on dampers, compressor protection components, or temperature control mechanisms to detect component positions, start/stop signals, and safety interlock status. For example, when a damper reaches a designated position or compressor operating conditions are met, the switch instantly transmits an electrical signal, enabling the equipment to adjust its operating mode promptly, ensuring normal cooling and stable airflow distribution.
Furthermore, its stable and sensitive mechanical structure allows it to maintain consistent performance in long-term air conditioning operation, contributing to efficient control and extended service life. It is one of the commonly used key micro-switch components in air conditioning systems.
