Model No: G905-200F01W2-T089U
Unionwell Waterproof Mini Micro Switch G905 Series 25T120 0.1A/5A 125/250VAC
Model Number:G905-200F01W2-T089U
Max. Current:5A
Max. Voltage:250V
Operating Temperature:-25°C~+120°C
IP level:ip67
Rating:0.1A/5A 125/250VAC 48VDC/Gold Plated Contact Optional
Operating Frequency Electrical:10~30cycles/minute
Operating Frequenc Mechanical:120cycles/minute
Contact Resistance(Initiative):100mΩMax
Insulation Resistance (at 500VDC):100M Ω Min
Dielectric Strength:AC1,000V RMS (50~60Hz)
Storage Humidity:85%RH Max
Electrical life:10,000~100,000cycles/Depend on part No.
Mechanical Life:500,000cycles
Max. Current:5A
Max. Voltage:250V
Operating Temperature:-25°C~+120°C
IP level:ip67
Rating:0.1A/5A 125/250VAC 48VDC/Gold Plated Contact Optional
Operating Frequency Electrical:10~30cycles/minute
Operating Frequenc Mechanical:120cycles/minute
Contact Resistance(Initiative):100mΩMax
Insulation Resistance (at 500VDC):100M Ω Min
Dielectric Strength:AC1,000V RMS (50~60Hz)
Storage Humidity:85%RH Max
Electrical life:10,000~100,000cycles/Depend on part No.
Mechanical Life:500,000cycles
minimum order :
1000 pieces
Quantity :
Product Description
The G905 Series Waterproof Mini Micro Switch is a compact, agile, waterproof micro switch widely used in precision control applications in automotive and industrial equipment. This micro switch provides rapid triggering and reliable feedback, maintaining stable performance even under temperature variations, mechanical vibration, and humid environments, making it ideal for systems requiring high sensitivity and position control. Its operating temperature range is -25℃ to +120℃, and it boasts a mechanical lifespan of 500,000 cycles and an electrical lifespan of 100,000 cycles, demonstrating excellent structural durability.
In automotive systems, this product is often installed as a critical automotive micro switch in locations such as window regulators, power tailgates, door locks, and automotive air conditioning control mechanisms, primarily responsible for signal detection and trigger control. Its fast-response design ensures greater accuracy in executing commands; while its high temperature resistance and reliable contact structure make it suitable for use in engine compartments, high-temperature ducts, and near long-operating components, providing robust protection for intelligent control and safety functions.
Furthermore, the G905 Series, as a stable IP67 micro switch, also performs exceptionally well in industrial automation. It is commonly used in scenarios such as mechanical limit detection, equipment safety locking, conveyor line position sensing, and smart home appliance control. In dusty, oily, or humid working areas, its IP67 waterproof and dustproof rating effectively prevents liquids and impurities from entering, allowing the switch to maintain high reliability for extended periods, thereby reducing maintenance frequency and improving equipment operating efficiency.
Overall, this meticulously designed G905 series micro switch, manufactured by a micro switch manufacturer, is renowned for its durability, high trigger sensitivity, and excellent environmental adaptability, making it a reliable micro switch product for automotive and industrial applications. Its compact structure facilitates installation and integration, flexibly adapting to various system design requirements.
Feature
◆ Waterproof and dustproof (IP67) design
◆ Small size and compact structure
◆ Long life and high reliability
◆ Complete terminal block selection
◆ Equipped with various operating handles
◆ Widely used in automotive, home appliance, and industrial control applications
◆ Small size and compact structure
◆ Long life and high reliability
◆ Complete terminal block selection
◆ Equipped with various operating handles
◆ Widely used in automotive, home appliance, and industrial control applications
Parameter
Rating | P1 | ENEC: 0.1A 125/250V 48VDC 5E4 Gold Plated Contact Optional |
,05 | ENEC:5A 125/250VAC | |
10 | ENEC :10(2)A 125/250 VAC u25T125 NOTE:only with"OF"over"250gf" | |
Operating Frequency | Electrical | 10-~30 cycles/minute |
Mechanical | 120 cycles/minute | |
Contact Resitance | 100MΩ Max | |
Insulation Resistance ( at 500VDC) | 100MΩ Min | |
Dielectric Strength | AC 1,000V RMS (50~60Hz) | |
Storage Temperature | (-40°C~ +125°C/85°C) | |
Storage Humidity | 85% RH max | |
Service Life | Electrical | 10,000~100,000cycles (Depend on part number) |
Mechanical | 1,000,000cycles | |

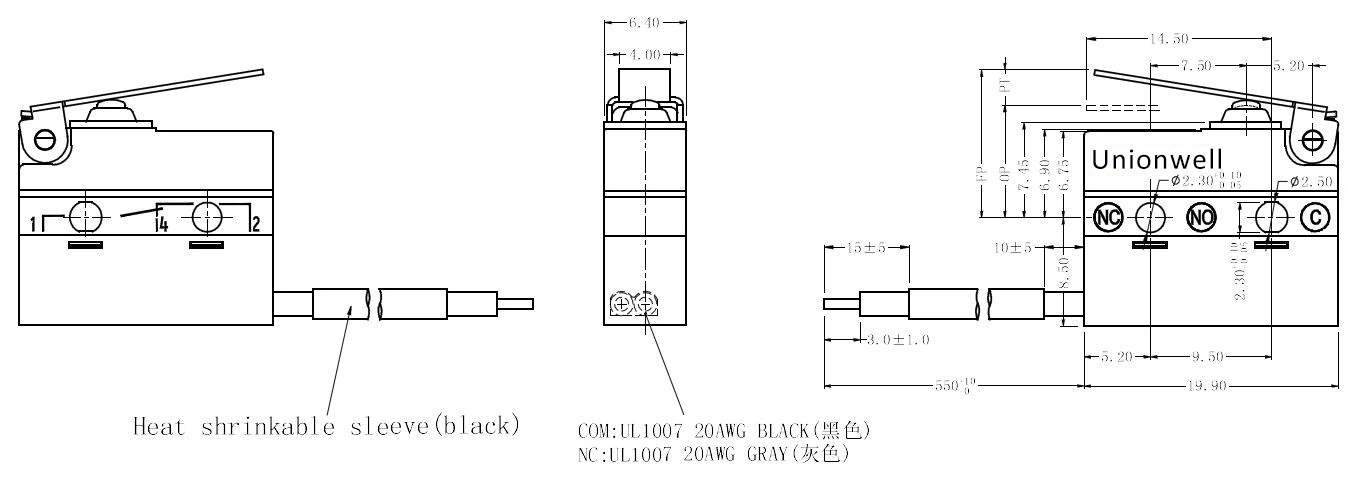

Drawing
Application
In the automotive sector, this product is commonly used in door locks, window lift systems, trunk releases, and pedal detection, maintaining stable operation even in environments with complex vibrations and temperature variations. Its precise triggering characteristics contribute to improved vehicle safety and user experience. In industrial applications, this switch can be used for mechanical linkage detection, equipment position sensing, and limit control, adapting to various voltage specifications (0.1A/5A 125/250VAC) to meet diverse control requirements.
Furthermore, this series of switches boasts an IP67 waterproof and dustproof rating, effectively preventing dust, oil, and liquid intrusion, making it suitable for outdoor and high-pollution operating environments, providing longer service life and higher stability for equipment. Its compact design facilitates flexible installation, making it a reliable detection and limit component choice for automotive and industrial systems.
As a compact, highly sensitive, waterproof micro switch, it is suitable for various automotive and industrial control applications. This switch enables rapid action within a short stroke, ensuring accurate feedback and improving overall operational reliability.
In the automotive sector, this product is commonly used in door locks, window lift systems, trunk releases, and pedal detection, maintaining stable operation even in environments with complex vibrations and temperature variations. Its precise triggering characteristics contribute to improved vehicle safety and user experience. In industrial applications, this switch can be used for mechanical linkage detection, equipment position sensing, and limit control, adapting to various voltage specifications (0.1A/5A 125/250VAC) to meet diverse control requirements.
Furthermore, this series of switches boasts an IP67 waterproof and dustproof rating, effectively preventing dust, oil, and liquid intrusion, making it suitable for outdoor and high-pollution operating environments, providing longer service life and higher stability for equipment. Its compact design facilitates flexible installation, making it a reliable detection and limit component choice for automotive and industrial systems.
