Subminiature waterproof and dustproof micro switch G10B series

Model Number:G10Bseries
Max. Current:3A
Max. Voltage:250VAC
Operating Temperature:-40℃~+85℃
Protection Level:IP67
IP level:IP67
Electrical life:10,000 cycles
Mechanical life:300,000 cycles
Rating:0.1A/3A 125VAC/250VAC 30VDC 1E4
Operating force:150gf
Terminal:Straight PCB Terminals
Function:SPDT/SPST-NO/SPST-NC
Lever type:Simulated Roller Lever
Qualification:ISO9001, TS16949
Application:Home appliance, Telephone, Electrical device, Tester machine etc.

Quantity :

Contact Now

Product Description

The G10B series subminiature waterproof and dustproof micro switch is a high-performance waterproof micro switch designed for precision control applications. Its core features are its miniaturized structure and stable contact system, enabling reliable operation even in complex environments. The switch has an IP67 waterproof and dustproof rating and can operate continuously in temperatures ranging from -40℃ to +85℃ and humidity levels ≤85%RH, unaffected by external moisture, dust, or minor oil contamination. In automotive control systems, this subminiature micro switch is commonly used in applications such as door lock mechanisms, power seat feedback, and in-vehicle button triggering, making it particularly suitable for precision detection tasks requiring small size and stable response.

As a subminiature waterproof micro switch, the G10B series also performs exceptionally well in home appliance control. Its stable contact structure makes it suitable for applications such as air conditioner vent position detection, refrigerator door control signals, washing machine safety locks, and etc. Rated at 3A 125/250VAC and 30VDC 1E4, the G10B series can handle light to medium load control needs, while its 300,000 mechanical cycles and 10,000 electrical cycles ensure consistent triggering performance over long-term use.

As an IP67 micro switch suitable for a wide range of devices, it also has extensive applications in industrial control, such as limit detection and travel control modules in automated equipment. Its robust contacts and stable operating structure maintain reliable output under continuous vibration, temperature fluctuations, or long-term operation, making it particularly suitable for high-frequency operation or precision position detection requirements in industrial settings. The series' IP67 seal not only prevents liquid intrusion but also effectively prevents dust from affecting contact accuracy, improving the overall stability of industrial systems.

In summary, the G10B series subminiature micro switch, with its compact design, versatile operating lever configurations, reliable service life, and stable and durable waterproof seal, has become a highly favored professional switching solution in the automotive, home appliance, and industrial sectors. As a

subminiature micro switch meticulously designed by the micro switch manufacturer, it provides a reliable and flexible solution for control systems that require high sensitivity, high durability, and high security.

Feature

◆ Waterproof and dustproof (IP67) design
◆ Compact size and structure
◆ Long life and high reliability
◆ Equipped with various types of operating handles
◆ Widely used in automotive control, home appliance control, industrial control, and other fields

Parameter

Rating	P1	0.1A 125/250VAC 30VDC 1E4 40T85
	03	3A 125/250VAC 30VDC 1E4 40T85
Operating Frequency	Electrical	10~30 cycles/min
	Mechanical	120cycles/min
Initial Contact Resistance		100mΩ Max.
Insulation Resistance		100MΩ Min.(at 500 VDC with insulation tester)
Dielectric Strength	Between Terminals	600VAC 50~60Hz for 1 Min.
	Between Terminals and housing	1,000VAC 50~60Hz for 1 Min.
Operating Environment Temperature		-40℃~+85℃
Storage Humidity		85%RH Max.
Lifespan	Electrical	10,000 cycles
	Mechanical	300,000 cycles
Protection Level		IP67

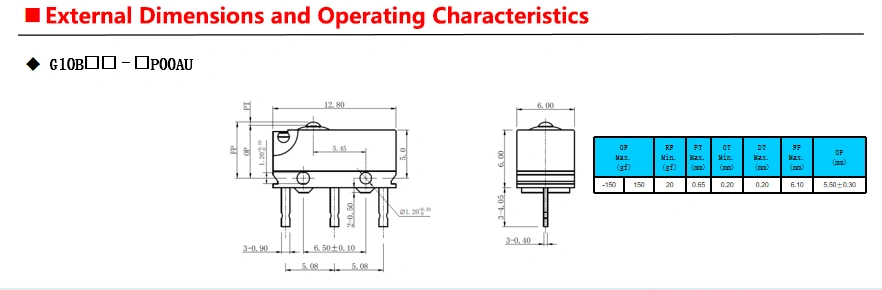

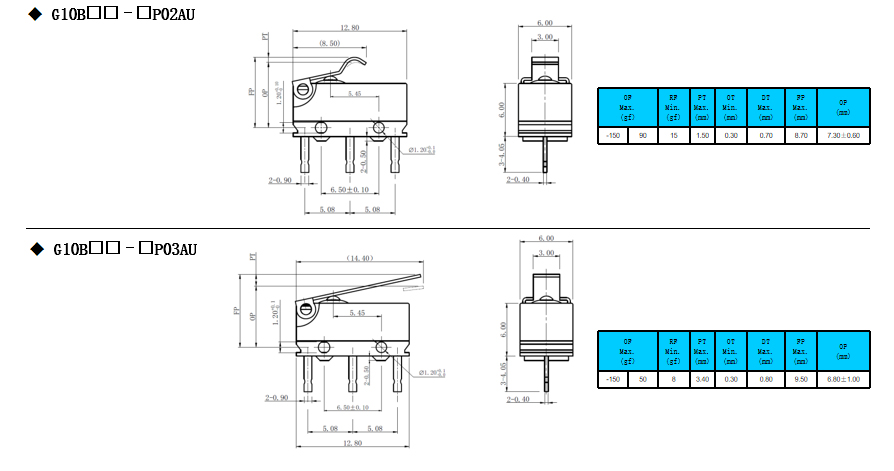

Drawing

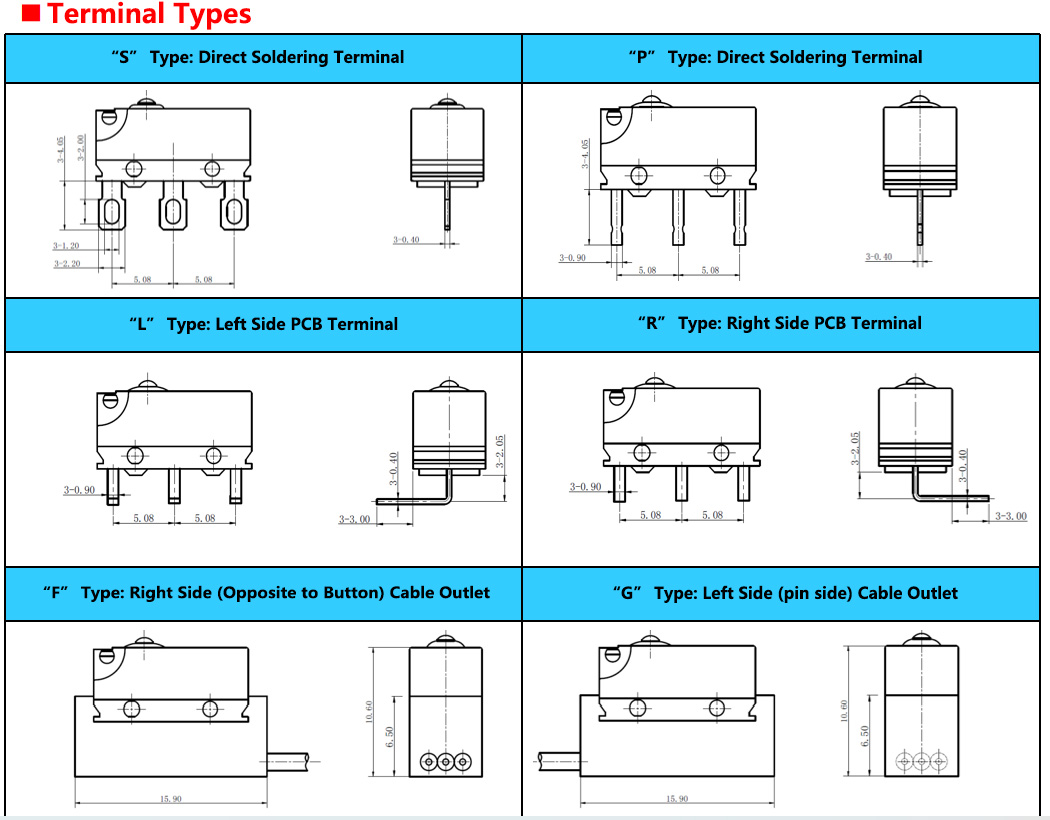

g10b subminiature micro switch terminal types-1

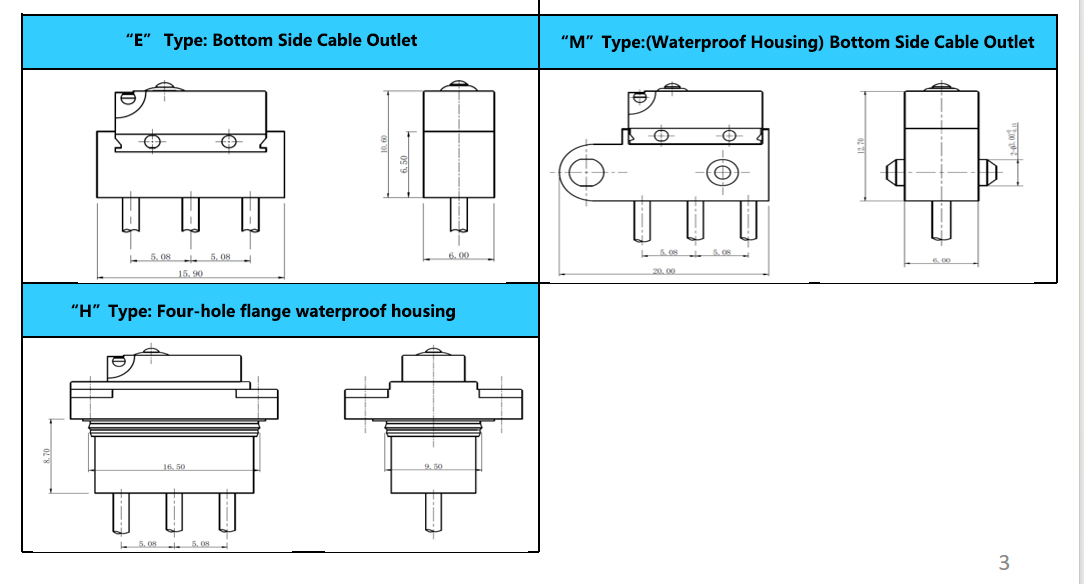

ip67 g10b subminiature micro switch terminal types-2

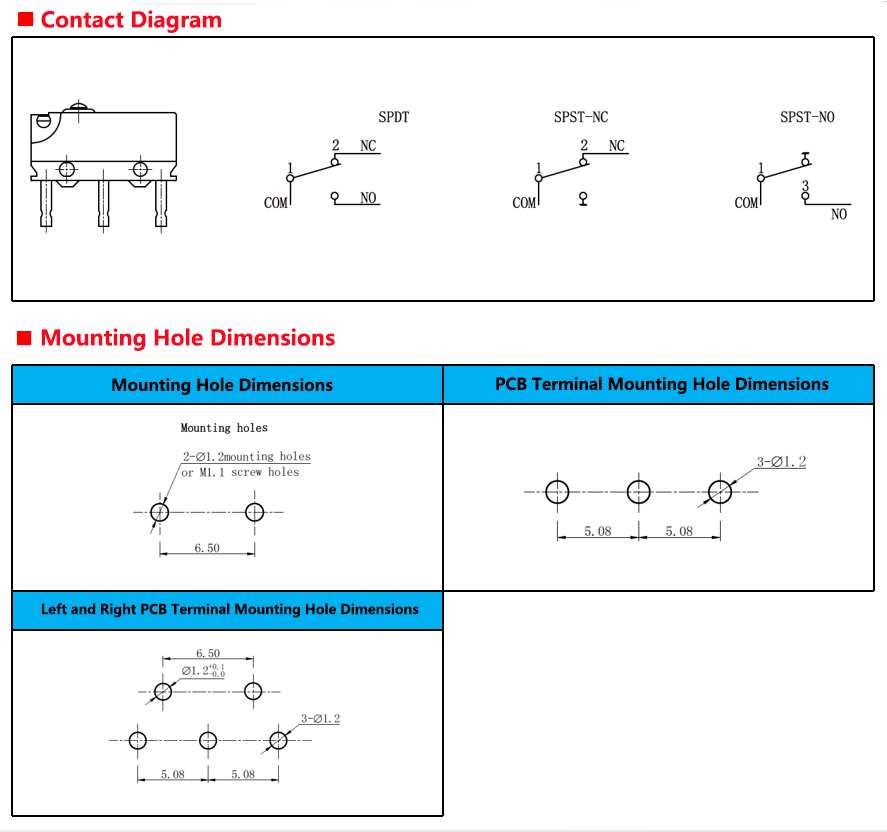

subminiature micro switch contact diagram and dimesions

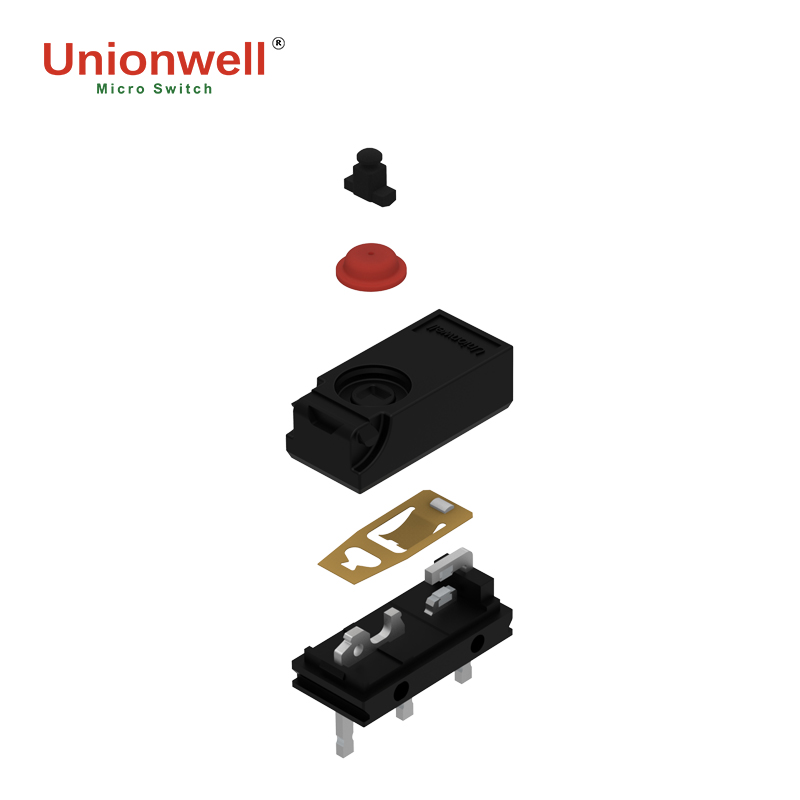

Details View

Application

As a compact yet stable subminiature IP67 micro switch, it is designed for precision control in various scenarios with limited space. Its compact structure, sensitive contact action, and IP67-rated waterproof and dustproof capabilities ensure reliable triggering even in humid, dusty, or oily environments.

In automotive control systems, the G10B series is commonly used in door lock actuators, in-vehicle button feedback, and power seat position detection, ensuring accurate response from vehicle electronic modules under varying temperature and vibration conditions. For home appliance control, it is suitable for applications such as air conditioning panel triggering, small motor travel detection, and smart appliance safety protection, enhancing appliance reliability with its light touch and stable action. In industrial control equipment, this series can be equipped with various lever options to meet different installation space and operating force requirements, and can be used for tasks such as position detection, micro-actuators, and light-load signal feedback, providing fast and precise switching actions for automated equipment.
