What Is a Large Basic Limit Switch and How Does It Work

In industrial equipment and elevator systems, position detection and stroke control are among the most fundamental and critical control requirements. Whether it's confirming the extreme positions of an elevator car or stopping industrial machinery under high load, reliable physical detection components are essential for final confirmation.

Against this backdrop, the Large Basic Limit Switch, as a limit switch with a stronger structure and higher triggering capability, is widely used in elevators and various industrial systems. This article will focus on a core question: "What is a Large Basic Limit Switch, and how does it operate in elevators and industrial systems?" to clearly introduce this electronic component.

What Is a Large Basic Limit Switch

Conceptual Explanation of a Large Basic Limit Switch

A Large Basic Limit Switch is essentially a limit switch used for detecting the end of mechanical stroke. It converts the state of "whether a specified position has been reached" into a definite electrical signal by directly accepting physical contact or impact from mechanical components. Compared to miniature micro switches, Large Basic Limit Switches do not prioritize compact size but emphasize structural strength, mechanical load-bearing capacity, and long-term stability.

Engineering Meanings of "Large" and "Basic" in Limit Switches

• "Large" means that this type of switch has a larger mechanical input stroke, higher trigger force tolerance, and stronger shock and vibration resistance.
• "Basic" means that the working logic of this type of switch is relatively straightforward; it only requires pure mechanical triggering but has a clear on/off output and does not involve complex electronic processing.

This makes the Large Basic Limit Switch differ from other micro switches in many ways, mainly in size and structural strength, the mechanical input force it can withstand, and the safety level and reliability requirements of the applicable environment. It is not an "enlarged micro switch," but a stroke detection element specifically designed for high mechanical stress scenarios.

The Fundamental Positioning of the Large Basic Limit Switch in Stroke Control Systems

In stroke control systems, it typically serves as:

1. The final confirmation point of physical position, the last "warning line" for the running position;
2. A hard boundary signal source in the control logic, a deceleration and stopping point for high-speed moving parts;
3. The first layer of mechanical protection in the safety system, the most basic and important first line of defense.

For this reason, the large basic limit switch plays a vital and indispensable role in the travel control system.

Basic Structural Components of a Large Basic Limit Switch

Why Large Basic Limit Switches Require a More Robust Structural Design

In elevators and industrial equipment, limit switches often directly face high-speed moving parts, large inertial impacts, and repeated mechanical impacts over long periods. Insufficient structural strength can lead to signal drift, direct failure, or even safety hazards. Therefore, the structural design of a Large Basic Limit Switch revolves around impact resistance and long-term stability. Its structure is not merely for "looking robust," but to ensure consistent trigger points over time, prevent malfunctions caused by mechanical fatigue, and guarantee reliable signal output even under extreme conditions.

External Actuation Structure of a Large Basic Limit Switch

Lever and Roller Structure

The external actuation structure of a Large basic limit switch typically includes a rigid lever or a lever structure with rollers. The introduction of rollers reduces friction, minimizes direct impact, and extends the mechanical life of the actuator.

The large travel and high mechanical force input adaptation method ensures stable triggering rather than malfunctions

Due to its actuator structure, the Large Basic Limit Switch can withstand longer trigger travel and greater mechanical force input without overloading and damaging its internal mechanisms. Through precise lever ratio design and reasonable return spring force, it also ensures that triggering only occurs when the switch is truly in place, rather than being malfunctioning due to vibration or brief contact.

Internal Contacts and Micro-Switch Mechanism of the Large Basic Limit Switch

Despite its large overall size, the switch still employs a snap-action micro-switch structure. This structure converts slow mechanical input into rapid electrical switching, thereby eliminating signal jitter and providing a clear on/off boundary.

When the external actuator reaches the set trigger point, the moving contact switches instantaneously, resulting in a very clear change in circuit state and avoiding an unstable "semi-conductive" state. Even with the larger external structure, the precise spring design and stable contact pressure inside ensure that the electrical signal remains reliable.

Basic Working Principle of a Large Basic Limit Switch

The Complete Process from Mechanical Contact to Electrical Signal Output

The working process of a large basic limit switch can be summarized as follows:

1. The moving part of the equipment contacts its external actuator;
2. This mechanical force is transmitted through a lever, and the internal spring stores energy and releases it instantaneously;
3. The released energy from the spring affects the contacts to complete a rapid switching;
4. The switching of the contacts is converted into a clear electrical signal output.

Its working process does not participate in complex judgments, but only answers one question: "Has the equipment reached its limit position?" When the mechanical position exceeds the limit, direct intervention by the physical switch is the best option.

Why Elevators and Industrial Equipment Rely on Large Basic Limit Switches

1. The moving parts of elevators and industrial equipment often have large mass and high inertia, and the large basic limit switch can withstand this direct impact;
2. In environments with dust, oil, and vibration, its high triggering force can prevent malfunctions.
3. It provides mechanical determinism, which cannot be replaced by any software or sensor.

How a Large Basic Limit Switch Works in Elevator Systems

Elevators are highly regulated safety systems with extremely stringent requirements for travel control. Furthermore, the elevator car has a large mass and high impact energy; any failure poses a significant hazard. Therefore, using a Large Basic Limit Switch is essential.

How a Large Basic Limit Switch Operates in Elevator Travel Control

The complete chain for triggering an elevator to reach its destination is: Car or mechanism movement → Mechanical stop contact → Limit switch trigger → Control system response → Movement stop or state change.

This chain is purely mechanically triggered, avoiding reliance on software delays or sensor misjudgments, greatly improving safety.

The Role of a Large Basic Limit Switch in Elevator Safety Systems

1. Used to detect top and bottom limit positions, usually connected to the alarm;
2. Prevents equipment from over-travel, leading to serious accidents such as overshooting or bottoming out;
3. Often used as a hard cutoff signal source in safety circuits for faster signal cutoff.

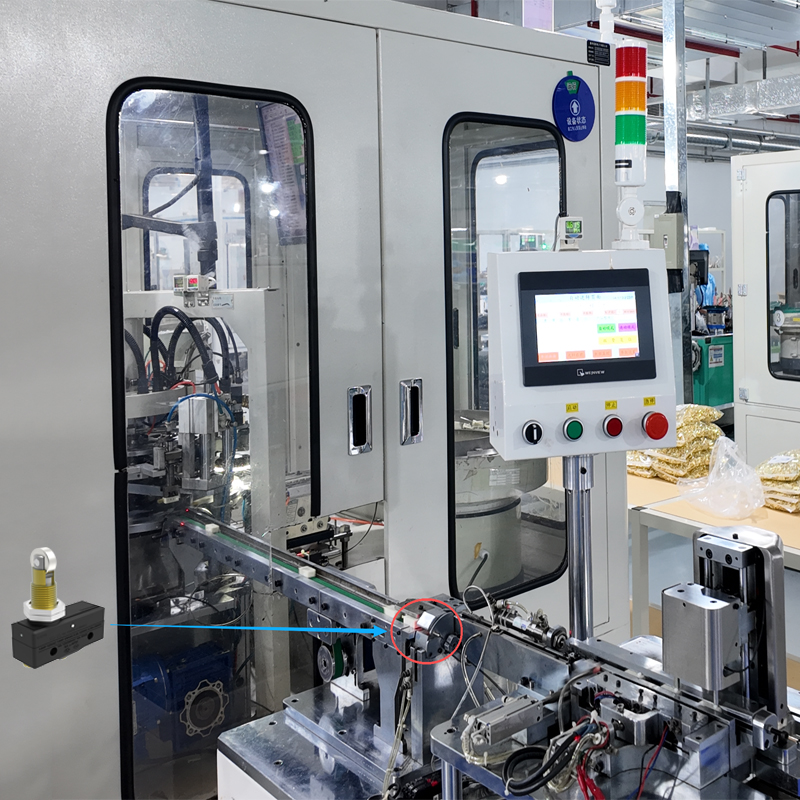

How a Large Basic Limit Switch Works in Industrial Equipment

Industrial equipment typically experiences heavy loads, frequent impacts, and long continuous operating times. Therefore, large basic limit switches are commonly used at critical points for stop detection, direction switching, and status confirmation.

In linear or rotary mechanisms, they are frequently used in slides, robotic arms, and conveyor systems. In PLCs or control systems, these switches primarily provide explicit status inputs, delivering faster and clearer electrical signals to the equipment.

In industrial safety interlocks, large basic limit switches generally serve as physical verification elements for mechanical limits, ensuring that equipment does not exceed these limits and forcibly stopping the system in abnormal situations to ensure safe operation.

Conclusion

The Large Basic Limit Switch is a limit switch designed for high-reliability, high-safety applications.Through its robust construction and well-defined operating logic, it plays an irreplaceable role in travel control and safety verification in elevators and industrial systems.

It is not simply an enlarged micro switch, but a critical physical boundary connecting mechanical motion and safety control. Understanding the main operating principles of the limit switch designed by micro switch manufacturers is a crucial foundation for its correct application and safe system design.
