Why Air Pressure Switch Reliability Is Critical in Water Heater

The core objectives of both gas and electric water heaters have always revolved around safety and stability. Combustion efficiency, exhaust flow, and negative pressure directly affect the completeness of combustion; airflow and pressure monitoring also influence the heating system's heat dissipation and protection mechanisms.

In this safety chain, the air pressure switch detects changes in positive pressure, negative pressure, or pressure difference, transmitting a clear status signal to the control board to determine whether ignition is permitted or operation continues. So, why is the reliability of the air pressure switch crucial in a water heater? This article will explore this question and provide evidence for your reference.

What Is an Air Pressure Switch and Its Function in Water Heater Systems

An air pressure switch is an electromechanical device that controls the on/off state of a circuit by sensing changes in air pressure. Its basic structure includes a pressure sensing chamber, a flexible diaphragm, and an internal micro switch module.

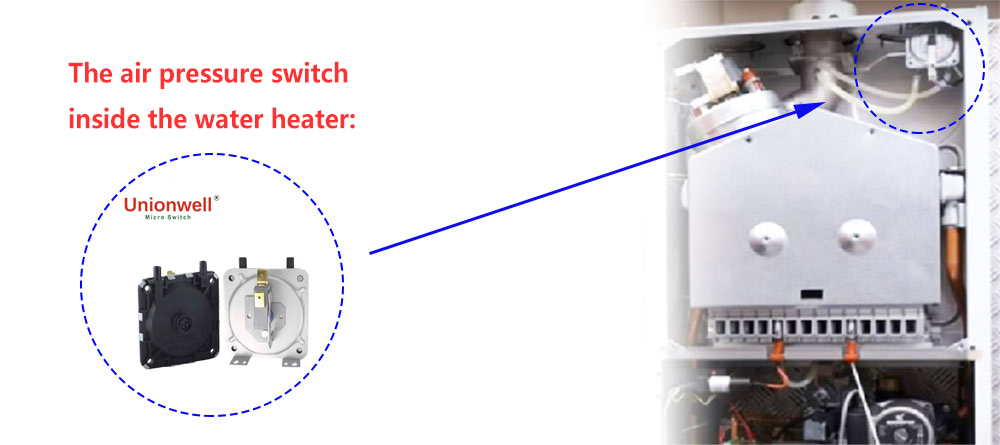

In a water heater, the air pressure switch is typically installed near the combustion chamber or exhaust system, connected to the fan or combustion chamber via a silicone tube. When the fan operates, airflow changes, and the pressure signal is transmitted to the switch chamber, triggering the micro switch.

This device features the following sensing characteristics:

• Positive pressure sensing: Detects positive pressure in the exhaust system.
• Negative pressure sensing: Detects negative pressure in the combustion chamber.
• Pressure difference sensing: Determines whether the airflow is normal by comparing pressures at both ends.

The internal micro switch of the air pressure switch typically provides a 16A 125/250VAC load control capability. This means it not only outputs signals but also has a certain power control capability, allowing direct participation in the electrical control of the safety circuit.

Furthermore, the air pressure switch forms a closed-loop control logic with the control board and the fan system. After the fan starts, if the pressure value reaches the set standard, the switch closes, and the control board allows ignition; if the pressure is abnormal, ignition is prohibited to prevent significant safety hazards.

How Air Pressure Switch Works in a Water Heater

Its working process has a clear logical sequence. First, after the fan starts, a pressure difference is created. Air is drawn into or expelled from the combustion chamber, creating a negative or positive pressure state.

After the pressure state changes, the pressure change acts on the diaphragm structure. When the diaphragm reaches the set pressure point, it displaces, triggering an internal micro switch via a transmission rod.

The change in the switch's state then feeds a signal back to the control module. If the pressure reaches the safety threshold, the system enters the normal ignition process.

If the set pressure is not reached, for example, due to exhaust blockage or fan failure, the switch remains open, and the control system refuses to initiate the combustion program, thus implementing an active protection mechanism.

This process, while seemingly simple, demands extremely high repeatability and trigger stability. Only when the entire switch can accurately detect the specific air pressure value can the entire system operate normally.

Why Air Pressure Switch Reliability Is Critical in Water Heater Safety

Water heating systems involve combustion and exhaust processes. Gas-fired water heaters need to continuously exhaust gases during combustion. If exhaust is obstructed, combustion efficiency will decrease and potentially dangerous gases may be produced. If negative pressure detection fails, the system may still ignite despite obstructed exhaust, posing a serious safety hazard. Therefore, the air pressure switch is essentially the first line of defense in safety interlocks.

Preventing Incomplete Combustion Risks

Obscessed exhaust leads to incomplete combustion. Incomplete combustion of gas easily produces carbon monoxide. Carbon monoxide accumulation poses an extremely high risk; if the system lacks an accurate detection mechanism, the consequences can be severe. The air pressure switch, by confirming the airflow status before ignition, can prevent dangerous startup conditions. When the exhaust system is blocked or the fan malfunctions, the system will also stop operating directly. Therefore, its reliability directly affects the overall safety level of the unit and is a crucial component.

How High-Quality Air Pressure Switch Improves Water Heater Reliability

High-quality air pressure switches address reliability issues at the design level. First, precise pressure setting and a stable trigger point are crucial. A high-precision spring and diaphragm combination ensures that the pressure setting error is controlled within a reasonable range, preventing misjudgments due to trigger drift. This provides a fundamental guarantee for the safe use of the water heater.

Second, high-temperature resistant materials are essential. The internal environment of a water heater can reach above 80℃, requiring materials with long-term high-temperature resistance to prevent premature aging during its lifespan.

Durability and Life-cycle Performance

In addition, high cycle life testing standards are an important criterion for evaluating the quality of an air pressure switch. High-quality water heater switch typically undergo tens of thousands of cycles of operation life testing, ensuring the water heater's lifespan and user experience.

Under frequent start-stop conditions, the switch also needs to maintain consistent triggering. If the actuation point drifts over time, it will lead to false alarms or system failure to start. Optimizing the spring material of the air pressure switch, controlling internal friction loss, and increasing housing rigidity can significantly improve long-term stability. This is a major reason why a high-quality air pressure switch enhances the reliability of the water heater.

Key Technical Parameters for Evaluating an Air Pressure Switch for a Water Heater

During the selection process, the following technical parameters are crucial for an air pressure switch:

1. Set Pressure Range: Different water heater models have different pressure requirements, which must match the system's fan output characteristics. However, most models on the market typically require a pressure range of 10-1500 Pa, which can be used as a reference.

2. Operating Temperature Range: A wide temperature range ensures normal operation in both cold and high-temperature environments. -40~+90℃ is a reasonable range.

3. Electrical Ratings: This parameter should be selected based on the control circuit load to avoid overload or redundant design. Ratings of 0.1A, 3A, 5A, 16A, etc., are possible for both domestic and industrial applications. The customer should select the appropriate rating based on their intended use.

4. Response Time and Repeatability: A fast response improves system safety, and high repeatability ensures consistent operation each time.

These parameters collectively determine whether an air pressure switch is suitable for the required water heater.

Long-Term Value of Using Reliable Air Pressure Switches in Water Heater Manufacturing

Using highly reliable air pressure switches can significantly reduce after-sales repair rates. Pressure switch failure is one of the common sources of failure in hydrothermal systems, and a superior design can reduce service costs.

Secondly, it improves the overall safety certification pass rate. Stable safety switch performance helps attract more customers.

Furthermore, it enhances brand reputation and reduces system-level risks. Stable pressure detection reduces malfunctions and avoids cascading failures. This stability directly impacts the end-user experience, making the cost-effectiveness of high-quality air pressure switches acceptable to both customers and water heater manufacturers.

Conclusion

In water heaters, air pressure switches are not only control components but also the core of safety. Their reliability directly affects combustion safety and system lifespan. Micro switch manufacturers need to continuously develop high-quality air pressure switches, achieving long-term stable operation through structural optimization and material upgrades.

With the intelligent upgrading of hydrothermal systems, the demand for highly reliable air pressure switches will continue to grow. For manufacturers, improving product reliability will become a key factor in winning the water heater market competition.
