Why Subminiature Sealed Micro Switch Is Growing in Automotive Charging Ports

With the continued growth in global sales of new energy vehicles, EV charging systems are undergoing rapid upgrades. Global EV sales are projected to continue growing in 2025, and public charging infrastructure is expanding in tandem. Simultaneously, the widespread adoption of 800V high-voltage fast charging, public charging scenarios, and intelligent charging system upgrades are transforming EV charging ports into core control nodes integrating safety locking, status detection, signal feedback, and intelligent interlocking.

Under this trend, traditional switching solutions have revealed shortcomings such as insufficient protection capabilities, poor signal stability, and limited lifespan. Meanwhile, subminiature sealed micro switches, with their advantages of small size, strong sealing, fast response speed, and long lifespan, are being adopted by more and more manufacturers. This article will delve into the core driving forces behind this growth trend to help purchasers determine their selection direction.

Why EV Charging Ports Are Becoming More Complex

The increasing complexity of EV charging ports is primarily driven by three trends: higher voltage, more environmentally demanding requirements, and higher frequency of use. This complexity directly alters the selection logic for internal control components, More and more manufacturers are choosing waterproof automotive micro switches.

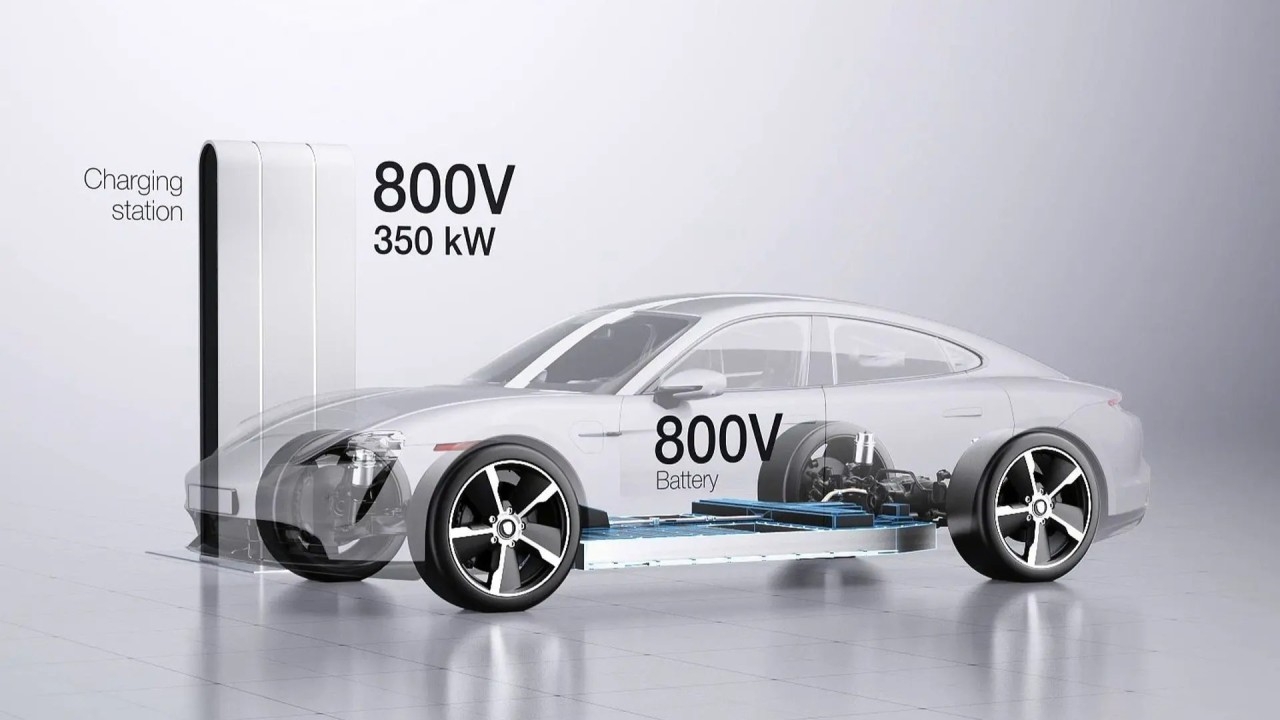

800V Fast Charging Creates Higher Safety Risks

The 800V high-voltage fast charging platform is becoming an important development direction for mid-to-high-end new energy vehicles. Compared to 400V systems, it offers higher power density and faster charging speeds, but also brings more stringent safety control requirements. In practical engineering applications, if the charging gun enters the power-on process without being fully locked, serious problems such as arcing, instantaneous overheating, or even interface damage may occur. This not only affects the user experience but may also pose serious safety hazards to the entire vehicle.

Therefore, the charging system must rely on a more reliable state detection mechanism, which is one of the key reasons for the introduction of the subminiature sealed micro switch—to provide a clear, stable, and unambiguous locking feedback signal.

Outdoor Charging Increases Environmental Stress

With the rapid expansion of public charging networks, a large number of EV charging ports are exposed to outdoor environments for extended periods, and their operating conditions differ from the design assumptions of traditional automotive electronic components. Charging interfaces need to withstand factors such as rain erosion, dust accumulation, humidity changes, thermal cycling shocks, and ultraviolet radiation, all of which continuously affect the internal structure.

If the switch's sealing is insufficient, oxidation, poor contact, or signal drift are highly likely to occur. The core value of a subminiature sealed micro switch lies in its structural-level sealing design, which improves long-term environmental stability and significantly reduces the probability of these problems.

Public Charging Requires Higher Durability

Public charging stations are used far more frequently than in homes, with dozens or even hundreds of plug-and-unplug operations per day being commonplace. This means that the internal switches must possess extremely high mechanical lifespan and stability. Low-lifespan switches in such scenarios are prone to contact fatigue, feedback delays, structural loosening, and signal inconsistencies. These problems ultimately translate into a degraded user experience and increased after-sales costs.

Why Traditional Switching Solutions Are Losing Their Advantage

Other Mechanical Switches Failure Risks

Traditional mechanical switches typically lack a sealing structure specifically designed for the high humidity and dust environments of automobiles, making them prone to the following problems in practical use:

1. Contact oxidation leading to signal failure
2. Fatigue of internal springs causing weakened rebound
3. Dust ingress causing jamming
4. Long-term vibration causing structural displacement

These problems are unacceptable in high-reliability systems like charging ports, therefore this solution has been phased out by most manufacturers.

Hall Sensors Increase System Cost

While Hall sensors offer the advantage of non-contact detection, they are not a panacea for automotive charging systems. Their main problems include the need for additional magnet structures, high PCB design complexity, increased system integration costs, and extremely high installation precision requirements, etc. In mass-produced vehicles, these cost factors significantly impact the BOM structure.

Reed Switch Signal Limitations

Reed switches still exist in some low-cost systems, but their stability is limited in high-vibration, high-frequency operating environments like EV charging ports. Especially under long-term vibration or mechanical shock, its signal consistency decreases significantly, affecting the reliability of system judgment and indirectly impacting user experience.

Where Subminiature Micro Switch Is Now Being Integrated

Compared to the three solutions above, the subminiature sealed micro switch is no longer an "optional component," but rather a core structure of the EV charging system, becoming an integral part.

Charging Gun Lock Detection

In the charging gun locking mechanism, this switch is mainly used to detect whether the latch is fully closed. When locking is complete, the system receives clear mechanical feedback, allowing high-voltage current to enter. This "physical confirmation signal" is a crucial step in ensuring safe charging, greatly reducing safety hazards such as power-on before locking is complete.

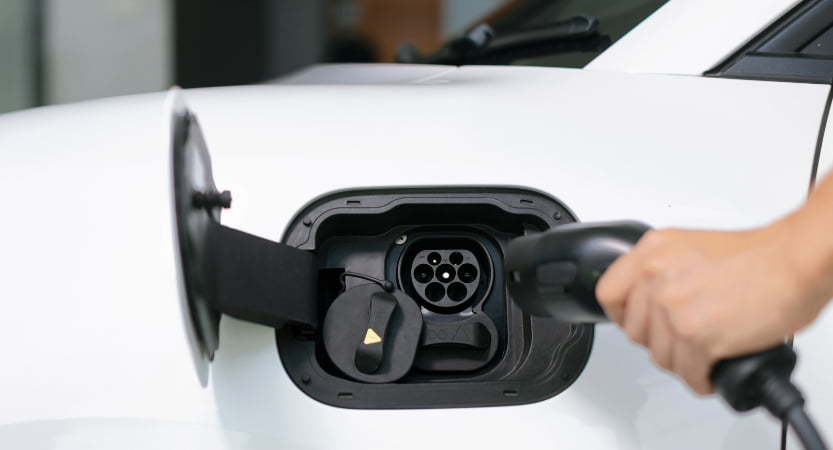

Charging Port Door Detection

In the vehicle-side charging port structure, this switch is used to detect the status of the charging port cover. If the cover is not fully closed or is abnormally opened, the system can prevent charging or trigger an alert mechanism, thus avoiding risks of misoperation or environmental exposure.

Emergency Disconnect Systems

Under abnormal operating conditions (overheating or locking failure), the subminiature sealed micro switch can act as a fast feedback node, transmitting signals to the control system to trigger power-off or protection mechanisms. This rapid response capability is particularly important in high-voltage systems, significantly improving the safety of charging systems.

Why OEMs Are Accelerating Adoption

OEMs and Tier 1 suppliers are accelerating the adoption of this type of switch, primarily due to the increasing demand for system-level risk control:

1. More stable switches mean fewer after-sales issues, directly reducing the overall vehicle lifecycle cost.
2. High-reliability components are more likely to pass automotive-grade testing and certification requirements, shortening development cycles.
3. With continuously shrinking interior space in new energy vehicles, miniaturized switches are better suited for complex structural layouts.
4. Strong mechanical structural stability helps improve mass production consistency and reduce assembly fluctuations.

Future Trends of Subminiature Micro Switch in EV Charging

Future EV charging systems will become increasingly intelligent, driving continuous upgrades in switch technology:

1. Automated charging robots will add numerous precision position detection nodes, further increasing the demand for subminiature micro switches;
2. As a new type of bidirectional energy interaction technology, vehicle-to-grid (V2G) energy flow requires more complex state judgments and safety logic;
3. Future charging systems will rely on real-time diagnostic capabilities, and instant switch feedback is likely to become a crucial part of the data link.

Conclusion

As new energy vehicle charging systems continue to develop towards higher voltage, greater intelligence, and higher frequency, subminiature sealed micro switches, with their stronger sealing capabilities, more stable signal feedback, and smaller structural design, are becoming a key component of automotive charging ports.

For OEMs, Tier 1 suppliers, and charging equipment manufacturers, early deployment of high-reliability micro switch solutions from custom switch manufacturers can not only reduce future after-sales risks but also gain a stronger competitive advantage in the rapidly growing EV market, allowing them to more quickly embrace the vast blue ocean market.
