With the rapid popularization of new energy vehicles, the safety and stability of automotive charging ports are receiving increasing attention. During charging, the port is exposed to rain, dust, moisture, high and low temperatures, and frequent plugging and unplugging, thus requiring internal control components with higher reliability.

Against this backdrop, sealed miniature micro switches are widely used in automotive charging port locking detection, cover detection, status feedback, and safety interlocking systems. Their strong sealing performance, stable signal output, and excellent lifespan have attracted engineers' attention. This article will delve into how sealed miniature micro switches improve the safety of automotive charging ports and their core value in new energy vehicle charging systems.

Why EV Charging Safety Depends on Tiny Switching Components

As the electric vehicle industry moves towards 800V high-voltage architecture, charging safety no longer depends solely on the power of the battery pack or charging station, but also on the micro switches inside the port. Because high-voltage charging involves enormous current and thermal effects, any abnormal plugging or unplugging can trigger extremely serious arcing risks.

As the "first sentinel" at the physical level, the micro switch's task is to ensure that high-voltage power is only allowed when the electronic lock is fully engaged. If the system receives False Lock Signals, charging may begin before the physical connection is ready; this logical error is fatal in supercharging scenarios.

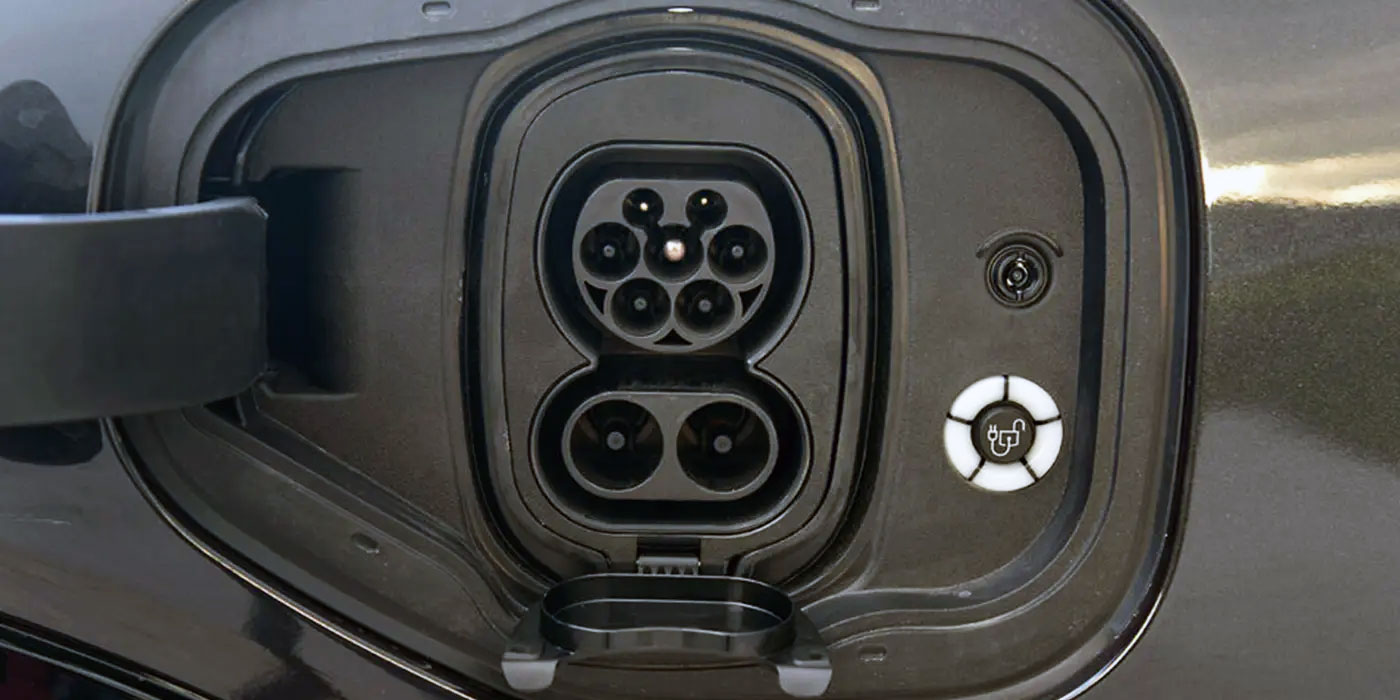

As a small, sealed micro switch, it achieves rapid circuit switching through minimal mechanical movement. In new energy vehicle charging systems, it is typically installed in critical areas such as the charging gun's electronic lock mechanism, cover detection structure, charging gun confirmation mechanism, and safety interlocking system. Because new energy vehicle charging interfaces are exposed to the outdoor environment for extended periods, sealed micro switches are necessary to improve stability and meet long-term reliable operation requirements.

Why Standard Micro Switches Often Fail in EV Charging Ports

Other types of micro switches often exhibit significant limitations when facing the harsh operating conditions of EV charging interfaces. The primary issue is condensation and corrosion. The charging port is frequently exposed to the outdoors, and the significant temperature fluctuations can cause condensation inside. If the micro switch's sealing level is insufficient, the internal contacts are prone to oxidation and failure. Secondly, during high-frequency charging cycles, the system undergoes intense thermal cycling, causing minute expansion and contraction of component materials, leading to signal drift and preventing the system from accurately determining the switching state.

Simultaneously, there is mechanical fatigue from frequent plugging and unplugging. The charging interface must withstand not only the daily impact of plugging and unplugging but also the vibrations from road driving. After tens of thousands of cycles, the contact springs of other micro switches are prone to weakening or breaking, ultimately causing the entire safety redundancy system to fail. Therefore, for automotive charging interfaces, high-protection (IP67), long-life, and shock-resistant micro switches must be used to build a lifeline of safety in the 800V era.

Why EV Charging Ports Need a Sealed Miniature Micro Switch

Protection Against Moisture and Dust

Charging ports are constantly exposed to outdoor environments, especially in public charging stations, highway service areas, and underground parking lots, where moisture and dust are common problems. As an IP67 micro switch, a sealed miniature micro switch can prevent contact oxidation and signal drift through its sealed structure.

Frequent Plugging and Unplugging Reliability

EV users may frequently plug and unplug charging guns daily, meaning the switch needs to perform repetitive actions over a long period. Current industry standards typically require at least 500,000 mechanical cycles to reduce maintenance costs and minimize after-sales issues and system failure rates.

Stable Operation Under Temperature Changes

EVs need to adapt to diverse global climates; therefore, charging ports should ideally operate stably in environments ranging from -40℃ to +85℃ to avoid material deformation, contact fatigue, and signal abnormalities.

Safety Control Requirements in EV Charging

The charging system contains high-voltage current, therefore requiring strict interlocking control logic. A sealed miniature micro switch helps the system perform operations such as lock confirmation, gun removal detection, cover detection, and anomaly feedback, thereby improving the overall safety level.

How Sealed Miniature Micro Switch Participates in Charging Safety Logic

Charging Port Lock Detection

Lock detection is one of its core functions; the system must confirm that the charging gun is fully locked. Only after receiving correct lock feedback is the high-voltage relay allowed to close, thus avoiding various safety hazards.

If a correct lock signal is not detected, the system will directly prohibit charging to avoid unstable current, interface overheating, abnormal contact, etc., improving charging safety.

Charging Port Cover Detection

Some models will detect the charging port cover. If the cover is not properly closed, the system may issue a warning to prevent foreign objects from entering, rainwater from entering, and interface contamination.

Prevent Accidental Unplugging

During Charging If the charging head is accidentally unplugged during charging, it may cause arcing or damage to the interface. The electronic lock, linked with the sealed miniature micro switch, can promptly issue an alarm and cut off power, effectively preventing the charging head from being unplugged while energized.

Emergency Safety Feedback

When the system detects abnormal locking, loose structure, or unlocking failure, the micro switch can quickly provide feedback on these anomalies. The system will then stop charging, cut off the current, and may even trigger an alarm, thereby avoiding greater risks.

The Trend Towards Using Sealed Miniature Micro Switches for Charging Ports

Application Trends of Micro Switches in Automotive Charging Interfaces

Currently, the application of micro switches in charging guns and automotive inlets exhibits the following two significant trends:

1. Mandatory Use of Electronic Lock Actuators

With the continuous improvement of DC fast charging power, the 800V high-voltage platform has become the mainstream solution for more and more new energy vehicle models. To avoid the risk of arcing caused by manually pulling the charging gun during charging, electronic locks are becoming an industry standard. Micro switches are being integrated into the actuators to meet the industry's requirements.

2. Intelligentization and Integration

Traditional mechanical feedback is upgrading to intelligent feedback. Some vehicles have begun to use micro switches with resistive circuits to identify normal and short-circuit states, further improving safety levels.

Industry Trend Data Model

According to component market forecasts from institutions such as MarkLines and Strategy Analytics, the micro switch market in new energy vehicle charging systems is continuing to grow:

The data trends above indicate that sealed miniature micro switches are gradually becoming a key safety component in new energy vehicle charging systems.

Conclusion

As new energy vehicle charging systems continue to upgrade, the safety, stability, and environmental adaptability of charging ports are becoming increasingly important. Sealed miniature micro switches, with their high reliability, miniaturized design, and stable sealing performance, are becoming a key component in automotive charging port safety control systems.

In the future, with the continued development of 800V high-voltage platforms, smart charging, and automatic charging technologies, the market demand for sealed miniature micro switches will further increase. For charging equipment manufacturers and automotive brands, choosing a professional micro switch supplier will help improve product safety performance and market competitiveness.
