The Role of Sealed Mini Micro Switch in Pickup Truck Transmission Systems

In pickup truck automatic transmission systems, the actual position of the shift mechanism needs continuous confirmation during gear shifting. The control system not only needs to know that the driver has issued a shift command, but also needs to confirm whether the mechanical mechanism has actually reached the target position. Therefore, accurate gear position detection and stable control feedback are fundamental to the normal operation of the automatic transmission system.

A sealed mini micro switch is a compact mechanical sensing element that can be installed near the shift mechanism or gear position mechanism. It is not only appropriately sized, but also features a stable trigger position, reliable repeatability, and good environmental adaptability. This article will focus on its role in pickup truck automatic transmission control systems and further analyze the performance requirements it needs to meet in automotive applications.

What Is a Sealed Mini Micro Switch?

A sealed mini micro switch is a small micro switch with a sealed structure. A mechanical mechanism drives an actuator, causing internal contacts to switch rapidly and output a switching signal to the control circuit via terminals. Its core characteristics include not only small size, but also precise actuation position and rapid contact response.

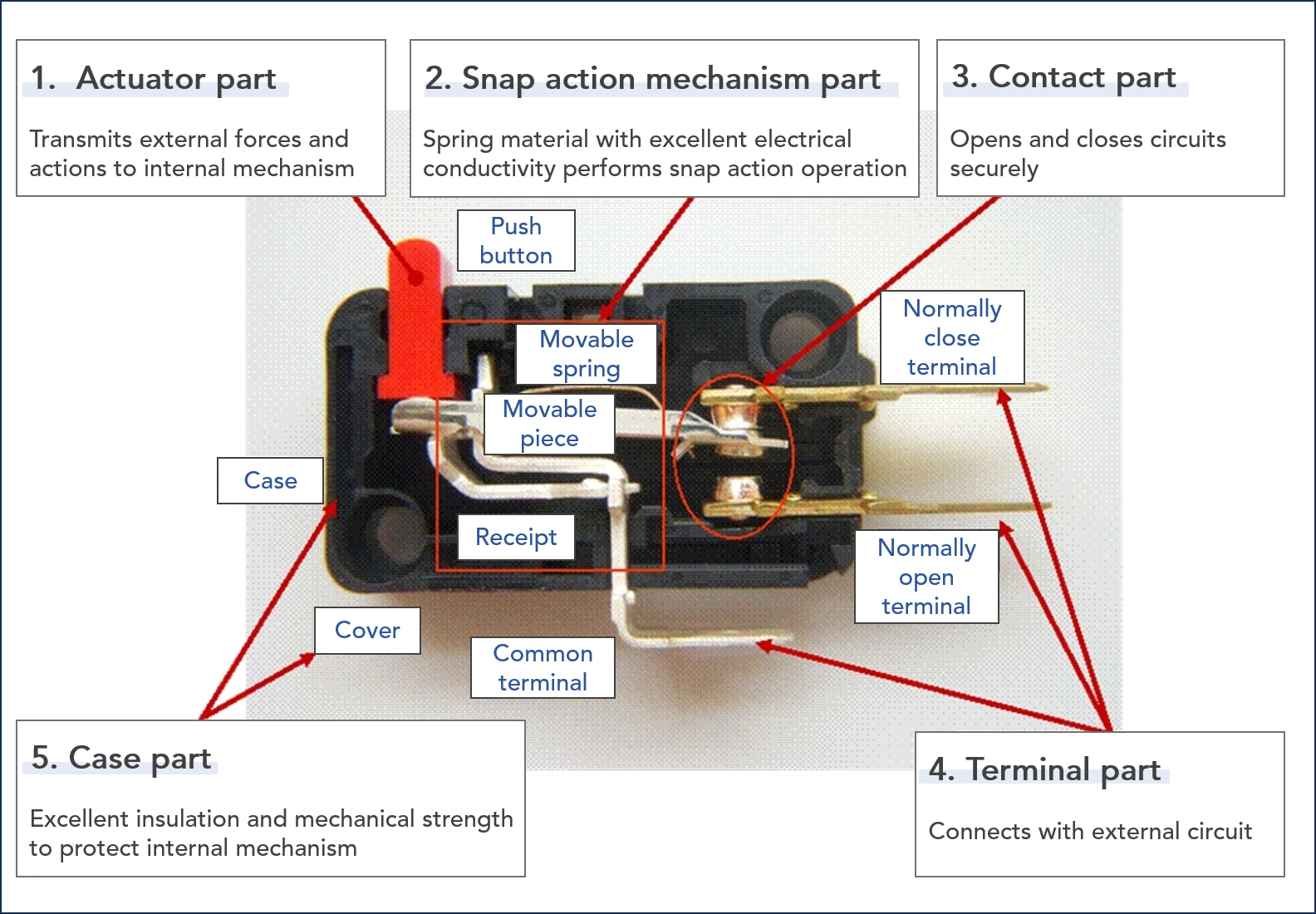

A typical structure includes a switch housing, actuator, internal contacts, spring mechanism, and terminals. Its working process can be summarized as follows: mechanical mechanism moves → actuator is pushed → contact switching → output status signal → control system reads.

This method is suitable for detecting specific mechanical positions. In pickup truck automatic transmission systems, when the shift mechanism moves to different gears, the sealed mini micro switch can generate stable status feedback at a specified position by reasonably matching the mechanical structure, actuator position, and triggering parameters.

The sealed mini micro switch combines miniaturization, a specific triggering position, and a sealed design, making it highly adaptable to automotive mechanisms. In automatic transmission systems, it is mainly responsible for detecting the position of the shift mechanism and outputting electrical signals, rather than directly determining the specific gear or controlling the shift logic. The vehicle control module determines the current gear status and subsequent control actions based on switch feedback and other system signals.

Why Sealed Mini Micro Switch Is Important in Pickup Truck Transmission Systems

Pickup truck automatic transmission control systems involve multiple mechanical and electronic components. Structures directly related to gear position detection include the Transmission Shift Mechanism, Shift Lever or Selector Mechanism, Gear Position Mechanism, Detection Components, and Transmission Control Module.

The Transmission Shift Mechanism is responsible for realizing changes in gear position; the Shift Lever or Selector Mechanism performs the gear shift operation; the Gear Position Mechanism corresponds to different gear positions; and the Detection Components are responsible for detecting these changes and feeding signals back to the Transmission Control Module.

The automatic transmission system needs to accurately identify gears such as P, R, N, and D, and confirm whether the shift mechanism has reached the designated position. When the selector moves to the target gear, the mechanical structure actuates a sealed mini micro switch, causing internal contacts to switch and output a corresponding electrical signal. The control module uses this signal to determine the current mechanical position and gear status.

Therefore, the function of the sealed mini micro switch can be summarized as: mechanical position → switching state → electrical signal → control system input, thereby realizing direct state feedback between the shifting mechanism and the electronic control system.

How Sealed Mini Micro Switch Detects Gear Position

Sealed Mini Micro Switch Converts Gear Movement into Electrical Signals

The gear position detection principle of the sealed mini micro switch is not complex; the key lies in the precise matching of the mechanical structure and switching parameters. During gear shifting, the shift lever or selector mechanism moves the mechanism. When it reaches the designated position, the mechanical components push the actuator, causing the internal contacts to switch and output an electrical signal. The control module uses this signal to determine the gear position.

The key to its application is ensuring that the switch state accurately corresponds to the designated gear. Therefore, it is necessary to comprehensively match parameters such as actuation force, operating position, travel, and release position to avoid premature, delayed, or insufficient triggering. As long as the switch can stably complete the ON/OFF transition at the target position, it can provide clear and reliable gear position feedback to the control system.

Sealed Mini Micro Switch Provides Reliable Gear Position Feedback

Automatic transmission control systems require not only instantaneous action signals but also stable feedback corresponding to the actual gear position. When the shift mechanism moves from one gear to another, the sealed mini micro switch can be mechanically triggered at a designated position, causing contacts to switch and output a status signal. The control module uses this signal to determine whether the target position has been reached.

This feedback confirms the gear status, identifies changes in the mechanism's position, and reduces judgment errors caused by inconsistencies between mechanical position and electrical signals. For automatic transmission systems, the key to the automotive micro switch is not simply pursuing speed, but ensuring consistency between the trigger position and the signal.

Key Performance Requirements for Sealed Mini Micro Switch in Transmission Systems

Switching Consistency of Sealed Mini Micro Switch

Gear position detection requires the switch to maintain a relatively stable trigger state within the same mechanical position. Therefore, switch consistency is a crucial indicator in the entire application design, including trigger position consistency, actuation force stability, contact switching reliability, and consistency of repetitive action states.

If the switch trigger position deviates significantly, it may cause inconsistency between the mechanical position and the electrical signal, resulting in problems such as premature triggering before reaching the correct position or failure to switch even when the position is correct. Therefore, the sealed mini micro switch needs to have stable dimensions, a reliable internal structure, and strictly controlled actuation parameters to ensure accurate gear position detection.

Compact Design for Limited Transmission Space

The internal space of pickup truck automatic transmission mechanisms is limited, and the detection element needs to fit tightly with the shifting mechanism. Therefore, miniaturization is an important factor when selecting a sealed mini micro switch. A compact structure not only facilitates installation near the shifting mechanism but also reduces the impact on the layout of surrounding components. At the same time, miniaturization should not come at the expense of performance; stable triggering performance, mechanical strength, and reliable terminal connections must also be considered.

Environmental Adaptability of Sealed Mini Micro Switch

Pickup trucks operate in complex environments, with the area around the transmission mechanism potentially subject to long-term temperature variations, vibration, dust, moisture, and mechanical shock. Therefore, the environmental adaptability of the sealed mini micro switch is a crucial factor in gear position detection. The sealed structure reduces the entry of external factors such as moisture and dust into the switch, minimizing their impact on the contacts and mechanical structure.

As a waterproof micro switch, its selection must consider the installation location, environmental exposure level, temperature range, and overall vehicle requirements. Simultaneously, the switch's environmental performance must match its mechanical performance to ensure stable and consistent mechanical position, actuator action, and contact states.

Conclusion

In Pickup Truck Automatic Transmission Systems, the sealed mini micro switch primarily serves for gear position detection and control feedback. By detecting the mechanical position of the shift mechanism and converting position changes into stable electrical signals, the sealed mini micro switch helps the control system confirm whether designated gears such as P, R, N, and D have been engaged, and whether the shift mechanism has completed the target position change.

As automotive automatic transmission systems become increasingly electronically controlled, automakers will continue to demand smaller, more consistent, longer-lasting, and more environmentally adaptable automotive micro switches. For micro switch manufacturers, continuously optimizing product structure, triggering accuracy, sealing processes, and batch manufacturing consistency are crucial for providing stable gear detection solutions for pickup truck automatic transmission systems.
